8 VPFlowScope in-line
3.2 VPFlowScope in-line D0 (no display)
The D0 model can be used in applications where local read-out and data logging is not required. With
it's various outputs the VPFlowScope in-line can be connected to remote data loggers.
3.3 VPFlowScope in-line D10 & D11 (display version)
The D10 and D11 models add a 3 row display with keypad to the VPFlowScope in-line. All
parameters will be shown on the display in real time. The keypad can be used to start a data log
session or to change the key parameters of the VPFlowScope in-line. The D11 model also features a
2 Million point data logger. All output parameters for remote connection remain available on the M12
connector.

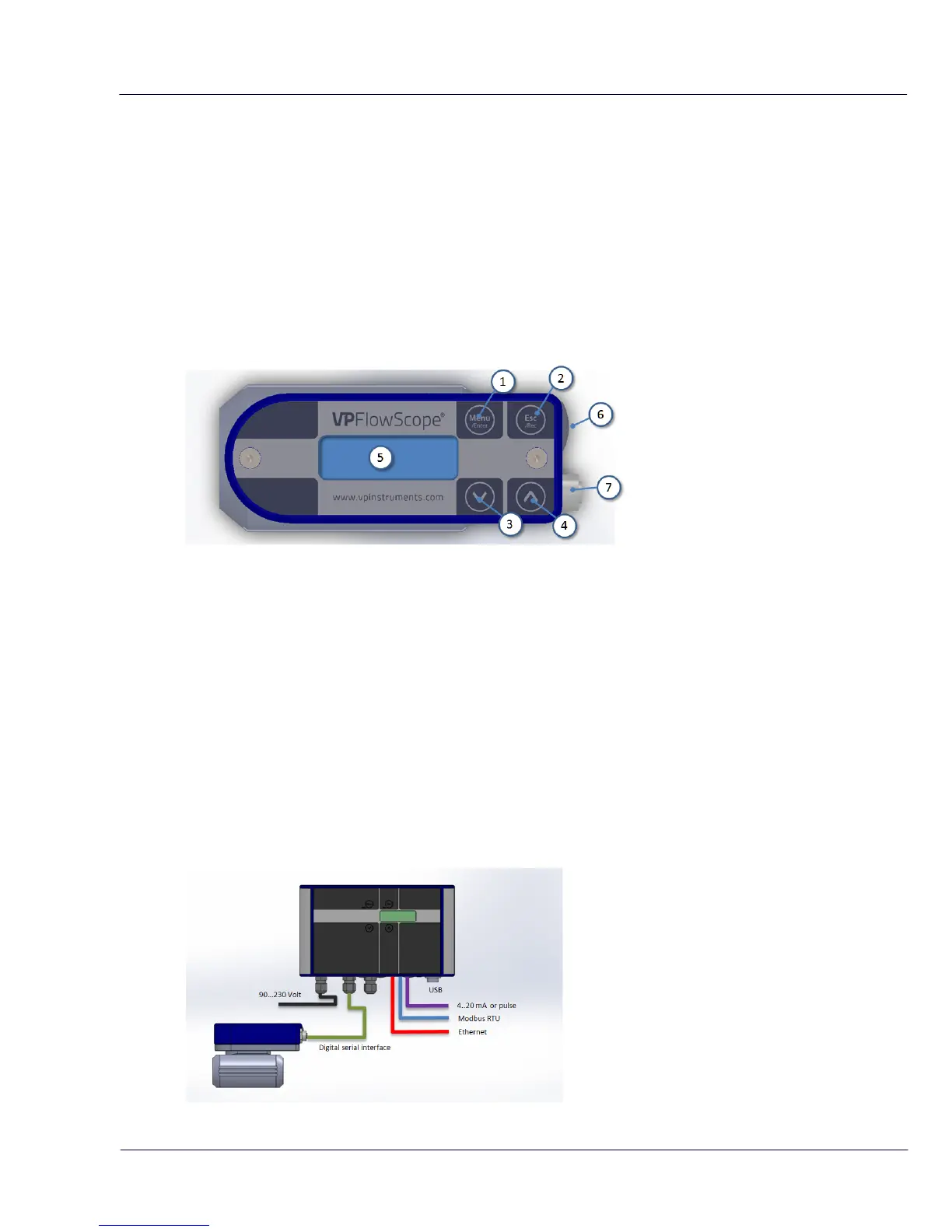

1. Menu / Enter button
2. Esc / Record button
3. Down button
4. Up button
5. LCD display
6. USB interface
7. M12 connector
3.4 VPFlowScope in-line D0 with the VPFlowTerminal
The VPFlowTerminal can be used as a remote display for situations where the local display can't be
read. All display features will be available on the remote display.
The VPFlowTerminal is equipped with a 10 m / 32.8 ft. cable with M12 8-pin connector. Therefore the
D0 model needs to be ordered with an M12 8-pin connector. The VPFlowTerminal features a 2 Million
point data logger which extends the data log capacity of your VPFlowScope in-line.
