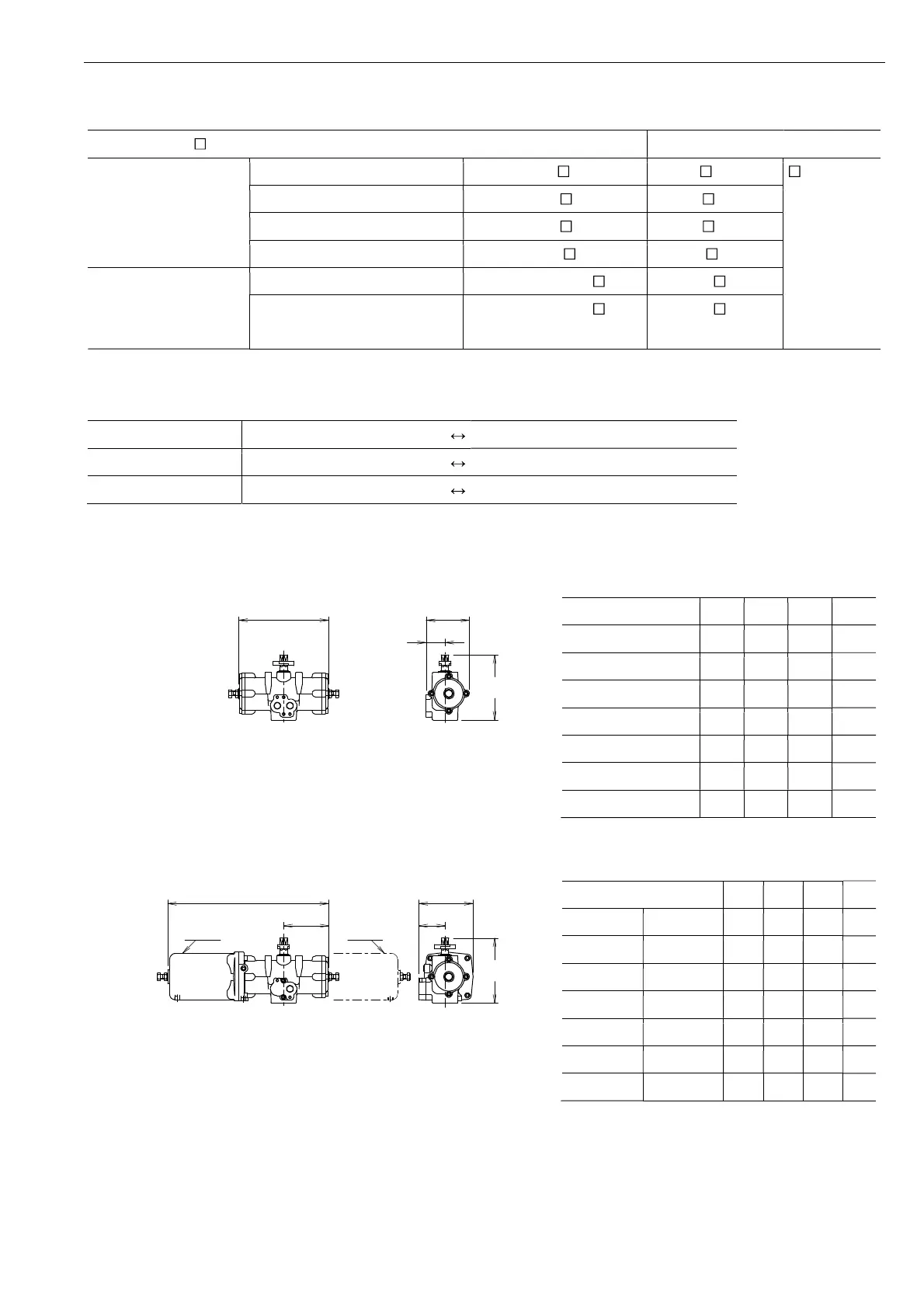

PNEUMATIC ACTUATOR SPECIFICATIONS
SOLENOID VALVE
Classification (
: Voltage code) Code
5-port Solenoid Valve
Return
(with bypass valve)
Lead wire 4N3S102K-L N43SL : Voltage
1 : 100V AC
3 : 200V AC
5 : 24V DC
DIN Connector 4N3S102K-D N43SD
DIN Connector (with lamp) 4N3S102K-N N43SN
Watertight cover 4N3S102K-W N43SW
5-port Explosion proof
solenoid valve
Return
(with bypass valve)
Conduit 4N4S102K-E01-H B0-R 4N4S01- B0, NO
Flame proof packing
(Cable size 9.5 to 10.4 mm)
4N4S102K-E10-H B0-R 4N4S10- B0, NO
Operate by solenoid valve (Normally Open)
TAD SHUT by solenoid off.
OPEN by power to solenoid.
TAO (Airless SHUT) OPEN by power to solenoid. SHUT by solenoid off. (Spring-return)
TAC (Airless OPEN) SHUT by power to solenoid. OPEN by solenoid off. (Spring-return)
DIMENSIONS
TAD
Actuator H W N N1
TAD-040 89.5 110 57 32
TAD-050 123 170 82 36
TAD-063 138 204 95 38
TAD-080 171 240 116 45
TAD-100 202 294 143 57
TAD-125 227 366 150 60
TAD-160 273 446 181 68
TAO TAC
Note) Cylinder direction of TAC-040 is the same as TAO.
Actuator W W1 N N1
TAO-040 TAC-040 249 55 92 46
TAO-050 TAC-050 305 85 103 50
TAO-063 TAC-063 367 102 119 52
TAO-080 TAC-080 435 120 142 59
TAO-100 TAC-100 530 147 174 71
TAO-125 TAC-125 688 183 193 74
TAO-160 TAC-160 838 223 231 82
N1
N
H
W
W1
W
N1
N
H
TAO TAC
