CESSNA 208

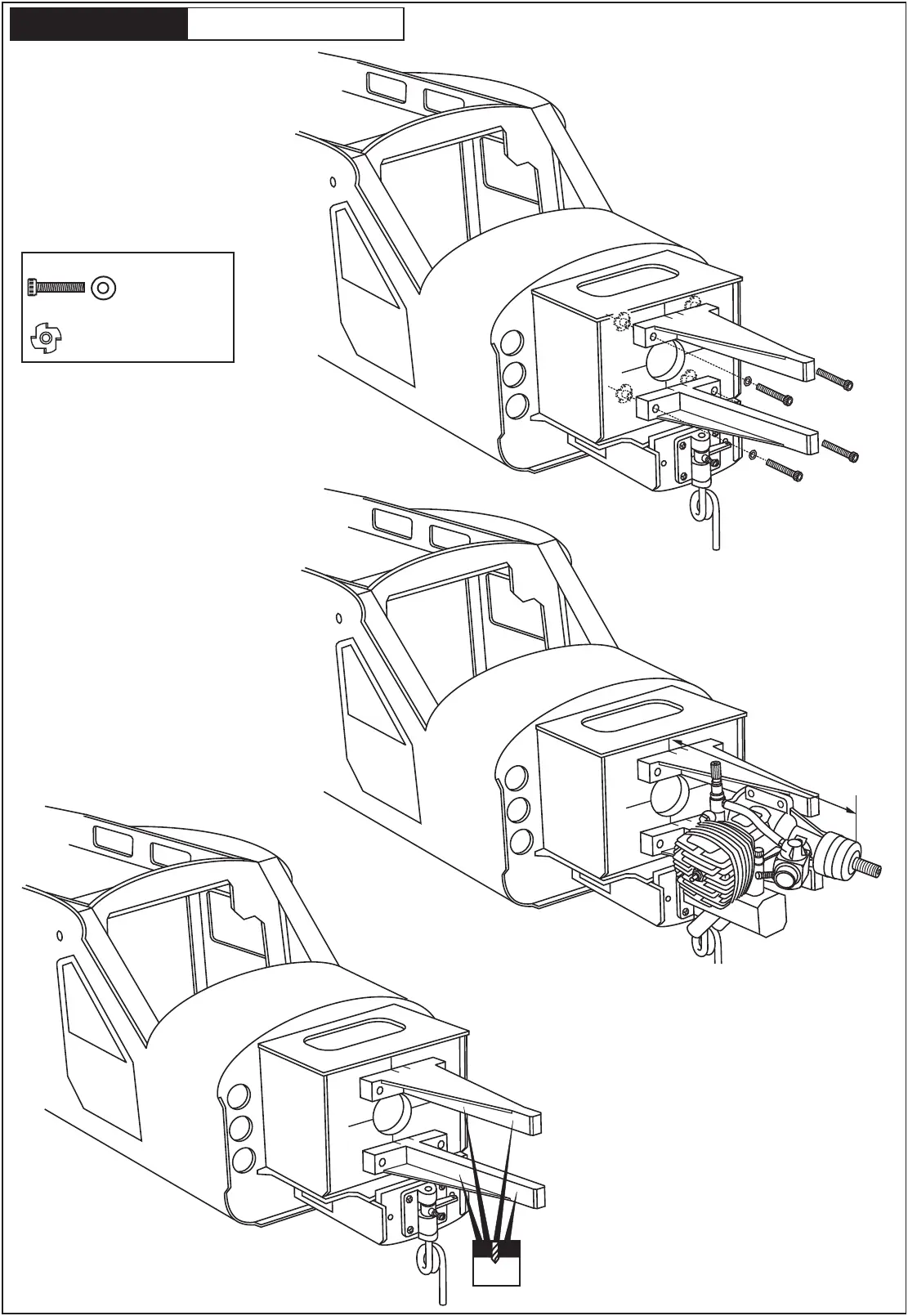

4-Engine mount
Reposition the engine mount beams
on to the fire-wall and secure them with
four 4x25mm screws.
...................4
....................4
4x25mm screw - washer
Blind-nut
Insert the blind-nut onto each
of the four holes make above.
Position the engine to the engine mounts
so the distance from the prop hub to the
fire-wall is 130mm.
Mark the engine mounting plate where the
four holes are to be drilled.
Remove the engine and drill a 3mm holes through the
beam at each of the four marks made above.
Marking sure that you drill the hole perpendicular to the
beam of the engine mount.
3mm
130mm
