VQ CESSNA 208 - Engine Mount Preparation; Attach Engine Mount Beams; Mark and Drill Firewall Holes

28 pages

To Next Page

To Previous Page

CESSNA 208

2-Nose gear

CESSNA 208

3-Engine mount

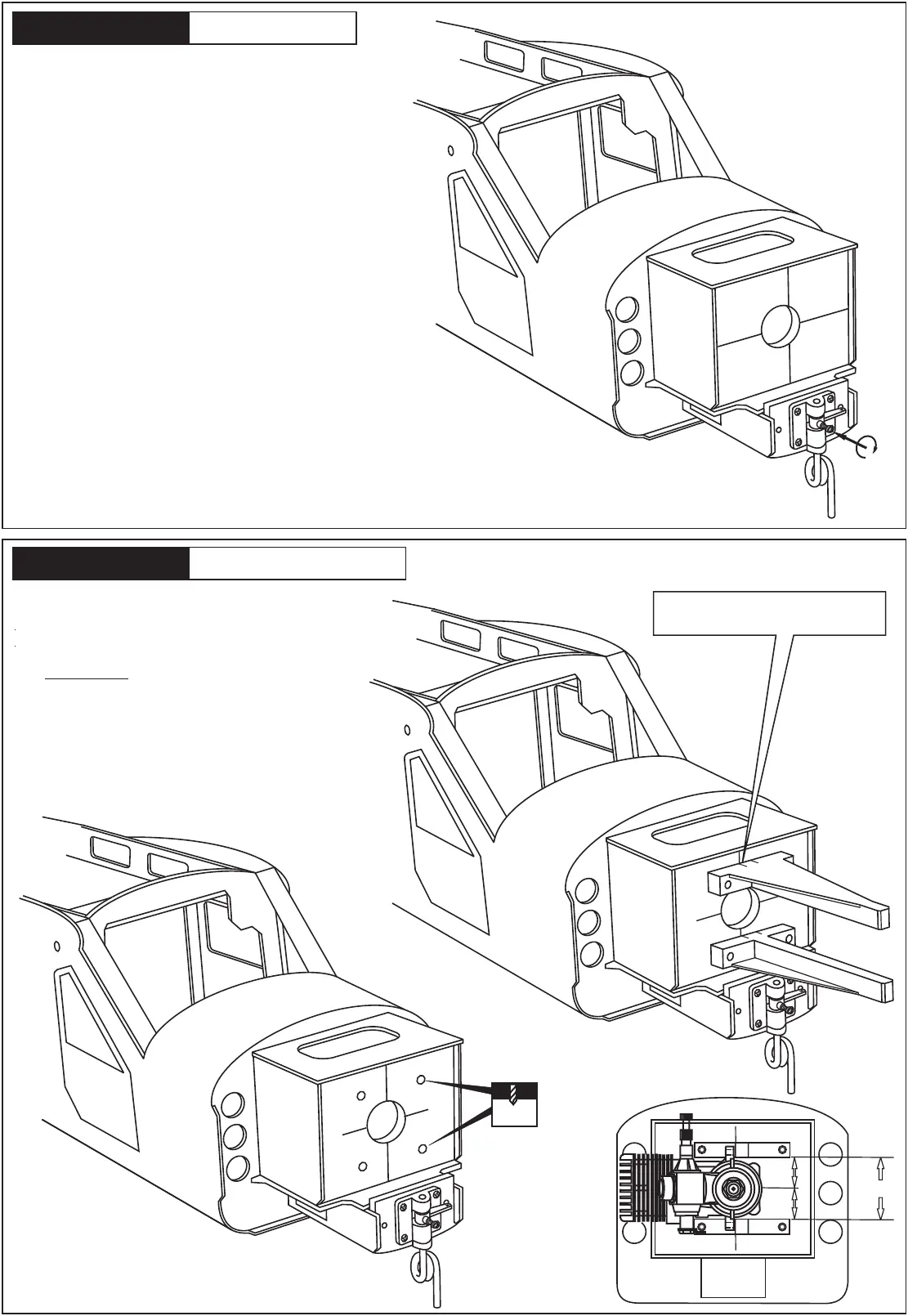

Attach the engine mount beams onto the fire-wall

so the distance between of two engine mount beams

is “A”,and B=B’ as show.

Secure the engine mount beams onto the fire-wall

with litter CA glue

Carefully remove the engine mount beams

and drill a 6mm hole through the fire-wall

at each of the four marks made above.

B’

! Align the mark on both engine mount

beams with the mark on the fuselage

Using a pencil or felt tipped pen, mark

the fire wall where the four holes are to

be drilled.

6mm
