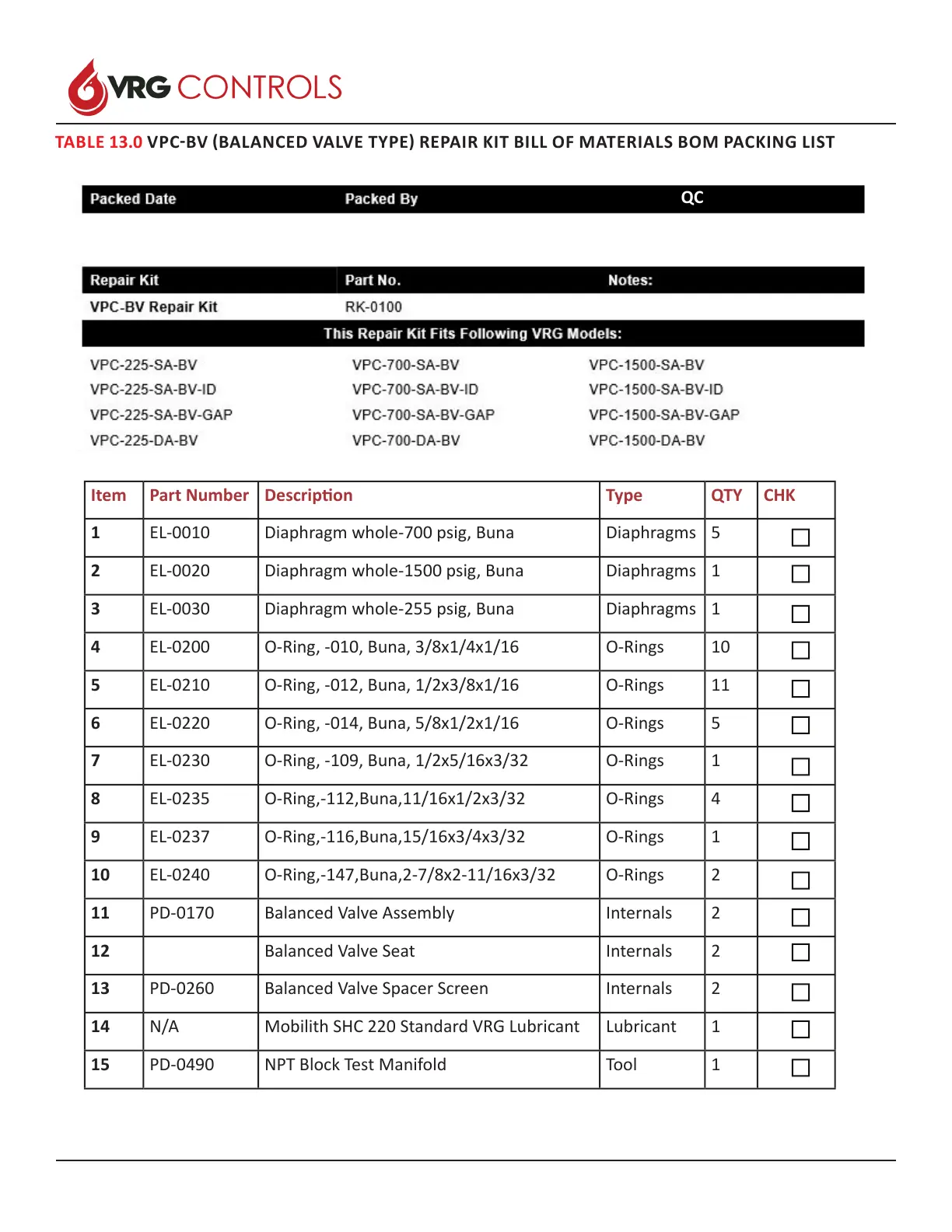

TABLE 13.0 VPC-BV (BALANCED VALVE TYPE) REPAIR KIT BILL OF MATERIALS BOM PACKING LIST
Item Part Number Descripon Type QTY CHK
1 EL-0010 Diaphragm whole-700 psig, Buna Diaphragms 5
2 EL-0020 Diaphragm whole-1500 psig, Buna Diaphragms 1
3 EL-0030 Diaphragm whole-255 psig, Buna Diaphragms 1
4 EL-0200 O-Ring, -010, Buna, 3/8x1/4x1/16 O-Rings 10
5 EL-0210 O-Ring, -012, Buna, 1/2x3/8x1/16 O-Rings 11
6 EL-0220 O-Ring, -014, Buna, 5/8x1/2x1/16 O-Rings 5
7 EL-0230 O-Ring, -109, Buna, 1/2x5/16x3/32 O-Rings 1
8 EL-0235 O-Ring,-112,Buna,11/16x1/2x3/32 O-Rings 4
9 EL-0237 O-Ring,-116,Buna,15/16x3/4x3/32 O-Rings 1
10 EL-0240 O-Ring,-147,Buna,2-7/8x2-11/16x3/32 O-Rings 2
11 PD-0170 Balanced Valve Assembly Internals 2
12 PD-0240 Balanced Valve Seat Internals 2
13 PD-0260 Balanced Valve Spacer Screen Internals 2
14 N/A Mobilith SHC 220 Standard VRG Lubricant Lubricant 1
15 PD-0490 NPT Block Test Manifold Tool 1
QC
PD-0247
