VRG Controls VPC BV Series User Manual

VRG CONTROLS LLC. 45 of 60 JUNE 2021
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
VRG Controls LLC. 43 of 54 APRIL 21, 2019
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
P2
P1
FLOW
P1
P2
Control Valve w/
Spring Diaphragm Actuator
(Spring Closed)
OPEN
SENSING
LESS DEADBAND MORE
MORE SENSITIVITY LESS
ADJUSTABLE ORIFICE (CLOSE)
ADJUSTABLE ORIFICE (OPEN)
OUTS
EX
SENSITIVITY-DEADBAND
ADJUSTMENT
+
SUPPLY
OUTPUT ISOLATION VALVE

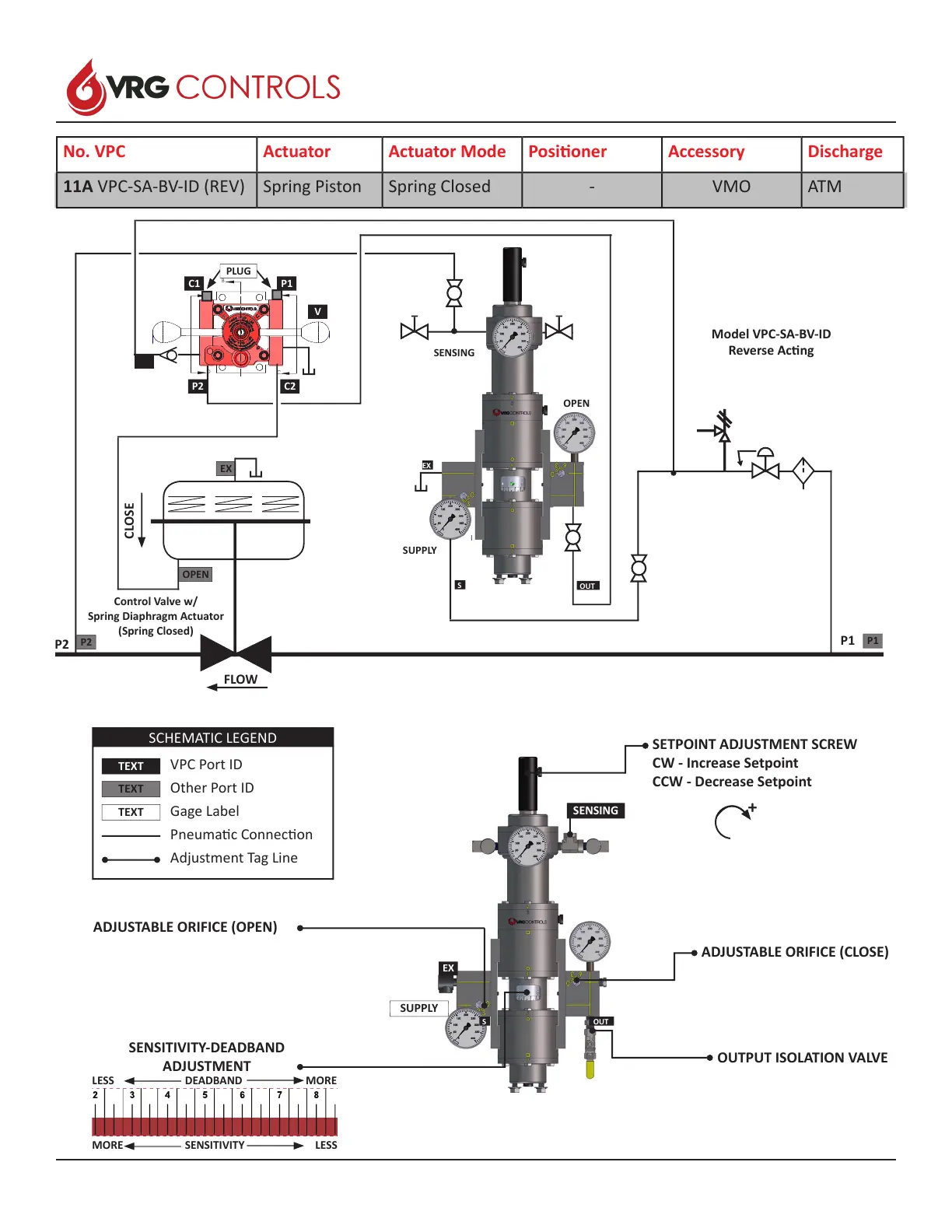

Model VPC-SA-BV-ID
Reverse Acng
S
EX
OPEN
OUT
SUPPLY
"2/19
B
B
D
D
C
C
CLOSE
SETPOINT ADJUSTMENT SCREW
CW - Increase Setpoint
CCW - Decrease Setpoint
SENSING
P1
P2 C2
C1
V
S
PLUG
EX
No. VPC Actuator Actuator Mode Posioner Accessory Discharge
11A VPC-SA-BV-ID (REV) Spring Piston Spring Closed - VMO ATM
VPC Port ID
Other Port ID
Gage Label
Pneumac Connecon
Adjustment Tag Line
TEXT
TEXT
TEXT
SCHEMATIC LEGEND
S
