VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
VRG Controls LLC. 39 of 54 APRIL 21, 2019
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
No. VPC Actuator Actuator Mode Posioner Accessory Discharge
9A VPC-SA-BV-ID (REV) Spring Piston Spring Closed - BOOSTER +VMO ATM
LESS DEADBAND MORE
MORE SENSITIVITY LESS
ADJUSTABLE ORIFICE (CLOSE)
ADJUSTABLE ORIFICE (OPEN)
OUT
S
EX
SENSITIVITY-DEADBAND
ADJUSTMENT
+
SUPPLY
OUTPUT ISOLATION VALVE
T
DERIVATIVE ADJUSTMENT
SETPOINT ADJUSTMENT SCREW
CW - Increase Setpoint
CCW - Decrease Setpoint
SENSING
P2
P1
FLOW
P1
P2
CLOSE
S
SENSING

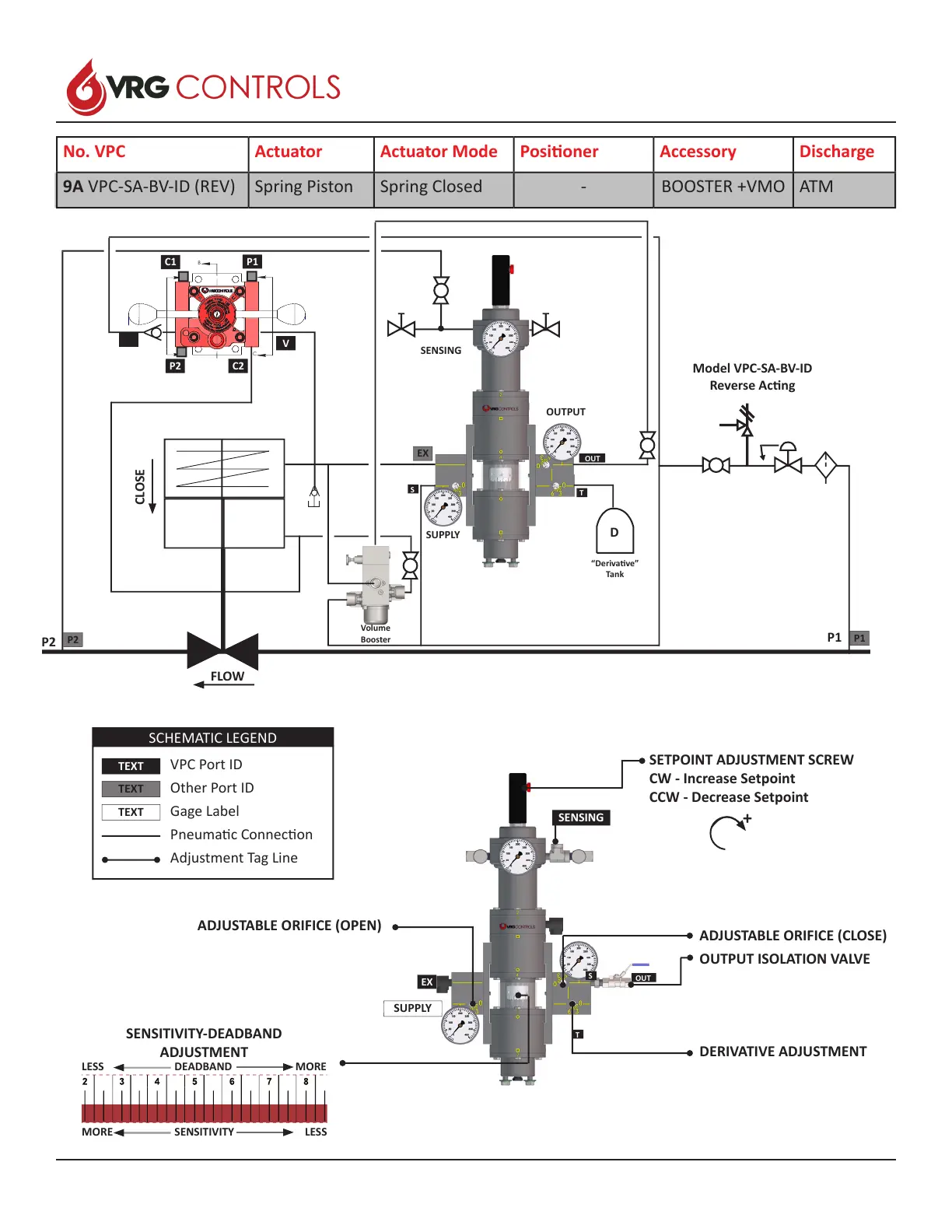

Model VPC-SA-BV-ID
Reverse Acng
EX
D
“Derivave”
Tank
T
OUT
Volume
Booster
OUTPUT
SUPPLY
"2/19
B
B
D
D
C
C
P1
P2 C2
C1
VS
VPC Port ID
Other Port ID
Gage Label
Pneumac Connecon
Adjustment Tag Line
TEXT
TEXT
TEXT
SCHEMATIC LEGEND
S
