VRG Controls VPC BV Series User Manual

VRG CONTROLS LLC. 43 of 60 JUNE 2021
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
VRG Controls LLC. 41 of 54 APRIL 21, 2019
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL

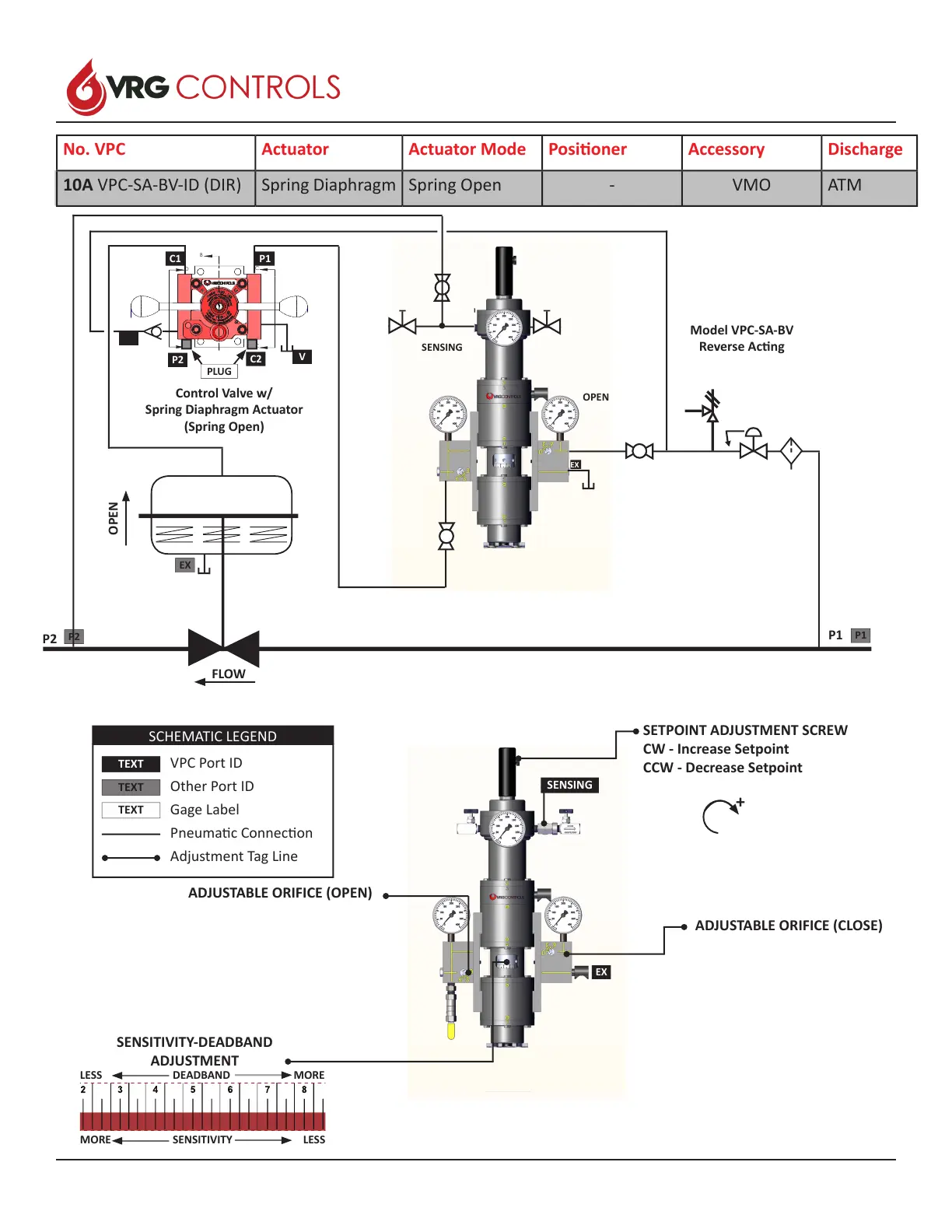

No. VPC Actuator Actuator Mode Posioner Accessory Discharge
10A VPC-SA-BV-ID (DIR) Spring Diaphragm Spring Open - VMO ATM
P2
P1
FLOW
P1
P2
Control Valve w/
Spring Diaphragm Actuator
(Spring Open)
OPEN
SENSING
LESS DEADBAND MORE
MORE SENSITIVITY LESS
EX
SENSITIVITY-DEADBAND
ADJUSTMENT
+
Model VPC-SA-BV
Reverse Acng
OUT
"2/19
B
B
D
D
C
C
SETPOINT ADJUSTMENT SCREW
CW - Increase Setpoint
CCW - Decrease Setpoint
ADJUSTABLE ORIFICE (CLOSE)
ADJUSTABLE ORIFICE (OPEN)
OPEN
EX
P1
P2
C2
C1
V
S
PLUG
VPC Port ID
Other Port ID
Gage Label
Pneumac Connecon
Adjustment Tag Line
TEXT
TEXT
TEXT
SCHEMATIC LEGEND
SENSING
EX
S
