VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL
VRG Controls LLC. 53 of 54 APRIL 21, 2019
VPC “BV” SERIES VALVE PILOT CONTROLLERS
INSTRUCTION MANUAL

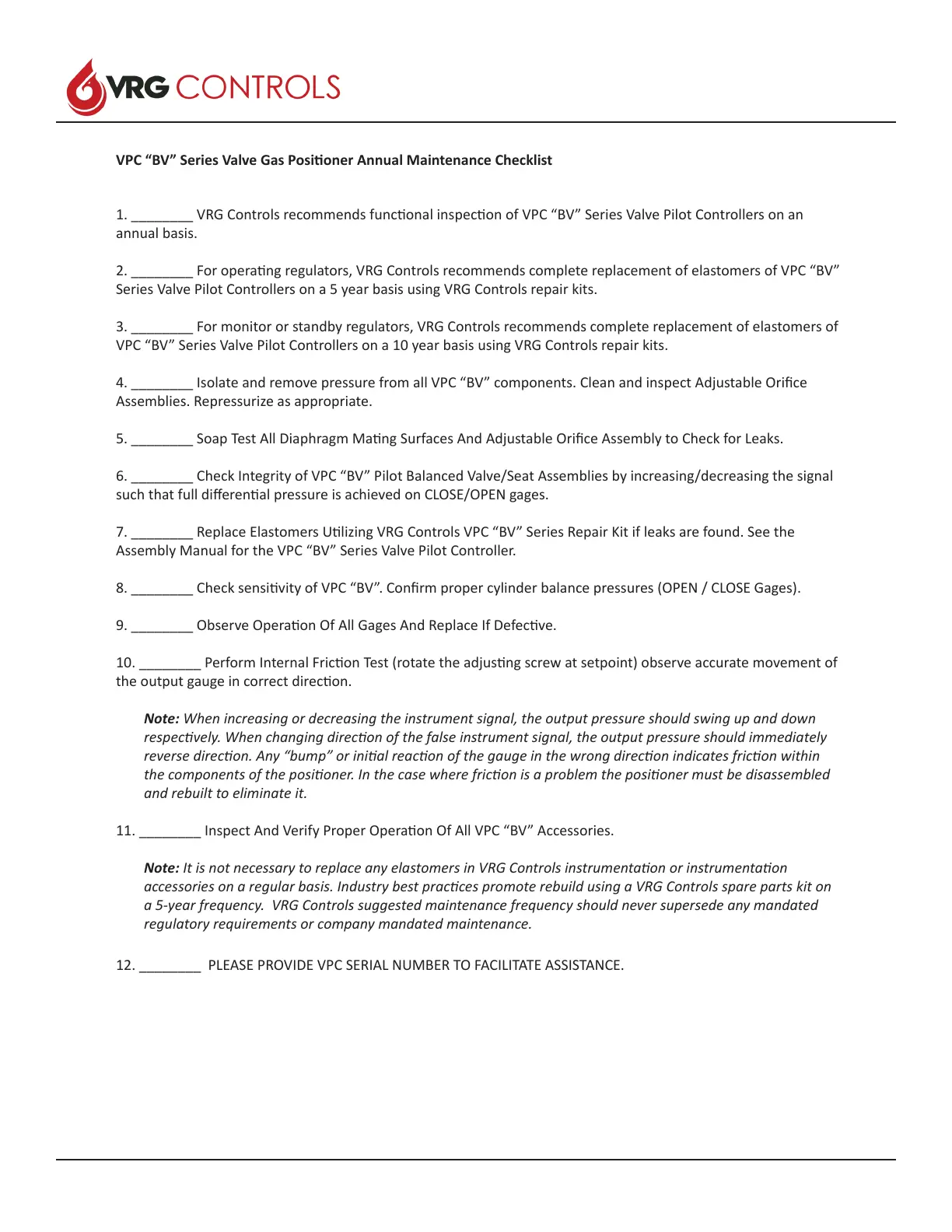

VPC “BV” Series Valve Gas Posioner Annual Maintenance Checklist
1. ________ VRG Controls recommends funconal inspecon of VPC “BV” Series Valve Pilot Controllers on an
annual basis.
2. ________ For operang regulators, VRG Controls recommends complete replacement of elastomers of VPC “BV”
Series Valve Pilot Controllers on a 5 year basis using VRG Controls repair kits.
3. ________ For monitor or standby regulators, VRG Controls recommends complete replacement of elastomers of
VPC “BV” Series Valve Pilot Controllers on a 10 year basis using VRG Controls repair kits.
4. ________ Isolate and remove pressure from all VPC “BV” components. Clean and inspect Adjustable Orice
Assemblies. Repressurize as appropriate.
5. ________ Soap Test All Diaphragm Mang Surfaces And Adjustable Orice Assembly to Check for Leaks.
6. ________ Check Integrity of VPC “BV” Pilot Balanced Valve/Seat Assemblies by increasing/decreasing the signal
such that full dierenal pressure is achieved on CLOSE/OPEN gages.
7. ________ Replace Elastomers Ulizing VRG Controls VPC “BV” Series Repair Kit if leaks are found. See the
Assembly Manual for the VPC “BV” Series Valve Pilot Controller.
8. ________ Check sensivity of VPC “BV”. Conrm proper cylinder balance pressures (OPEN / CLOSE Gages).
9. ________ Observe Operaon Of All Gages And Replace If Defecve.
10. ________ Perform Internal Fricon Test (rotate the adjusng screw at setpoint) observe accurate movement of
the output gauge in correct direcon.
Note: When increasing or decreasing the instrument signal, the output pressure should swing up and down
respecvely. When changing direcon of the false instrument signal, the output pressure should immediately
reverse direcon. Any “bump” or inial reacon of the gauge in the wrong direcon indicates fricon within
the components of the posioner. In the case where fricon is a problem the posioner must be disassembled
and rebuilt to eliminate it.
11. ________ Inspect And Verify Proper Operaon Of All VPC “BV” Accessories.
Note: It is not necessary to replace any elastomers in VRG Controls instrumentaon or instrumentaon
accessories on a regular basis. Industry best pracces promote rebuild using a VRG Controls spare parts kit on
a 5-year frequency. VRG Controls suggested maintenance frequency should never supersede any mandated
regulatory requirements or company mandated maintenance.
12. ________ PLEASE PROVIDE VPC SERIAL NUMBER TO FACILITATE ASSISTANCE.
