Analog Corded 1-line/2-line Petite Phone - A2211/A2221
Analog Corded 2-line Trimstyle Phone - A2321
Installation
Installation option - converting from desktop to wall mount position

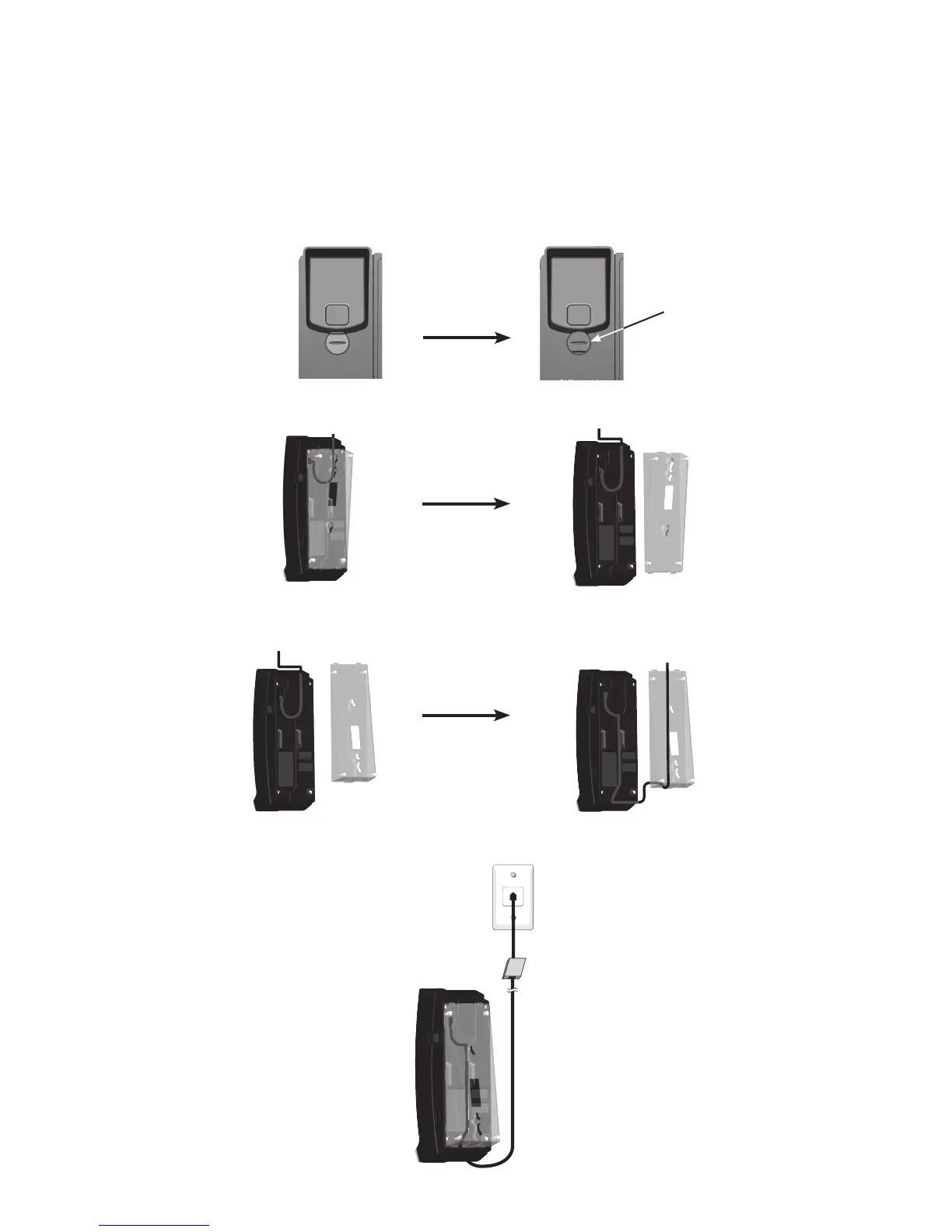

To mount the telephone base on the wall:
Set aside the handset. On the telephone base cradle, place a coin in the slit of the wall mount clip and rotate a half turn
(180 degrees). It locks into place with the protruding edge pointing towards the upper edge of the telephone base. This
protruding edge holds the corded handset when the phone is mounted on the wall.
Unplug the telephone line cord from the telephone wall jack. Then press the large tab on the mounting bracket to remove it from
the upper groove on the telephone base.
Turn the mounting bracket upside down. Remove the telephone line cord from the wire duct and then route it through the groove
on the bottom part the mounting bracket. Insert the small tabs on the mounting bracket into the upper slots on the telephone
base. Then press the large tab on the mounting bracket and rmly push it into the lower groove on the telephone base.
Mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone
base down on both mounting studs until it locks into place. Place the handset on the telephone base cradle.
1.
2.
3.
4.
Protruding edge
To Next Page
