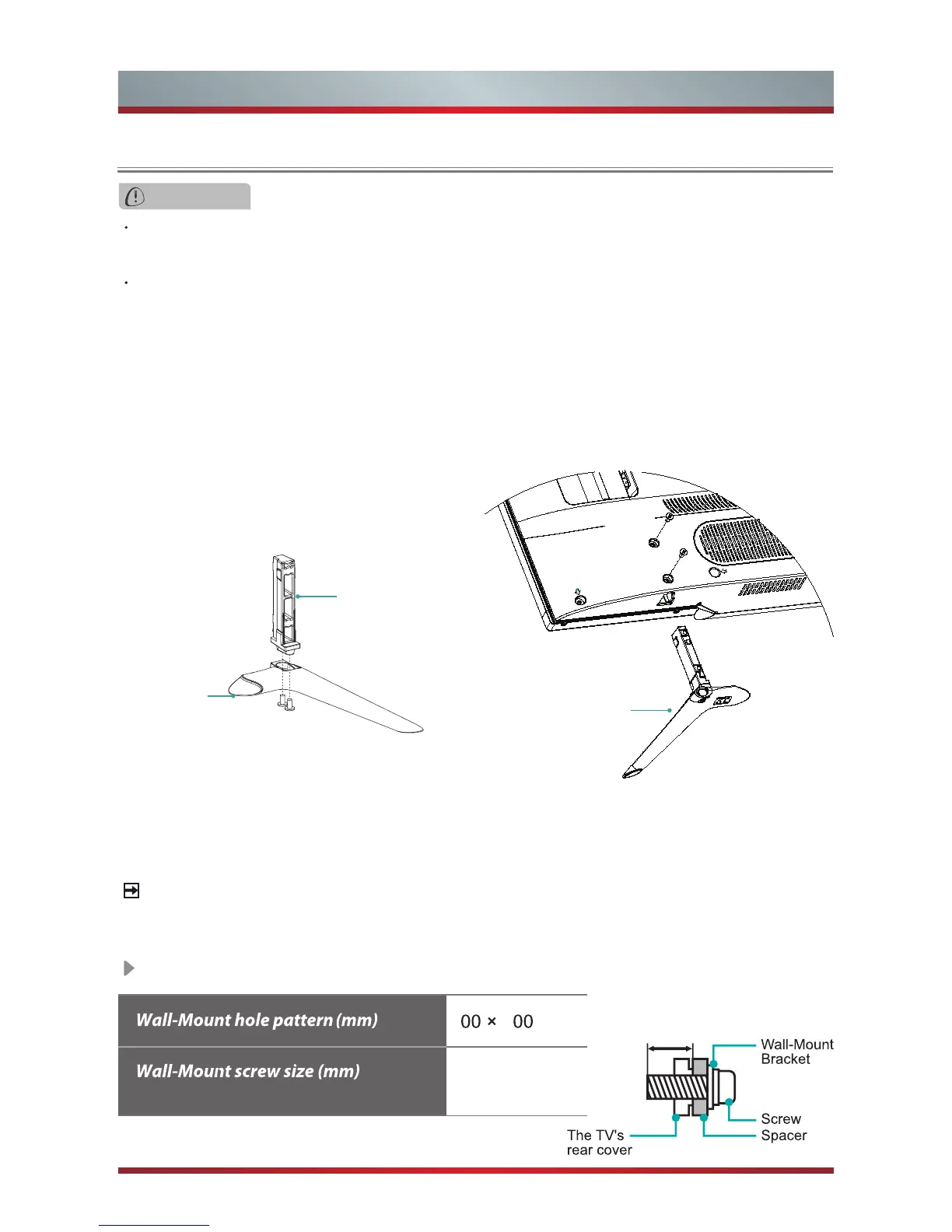

Installing the Stand
Installing the Stand
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount
brackets.
The LED display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the LED display, comes into contact with it. DO NOT exert pressure on
the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
Product images are only for reference, actual product may vary in appearance.
NOTE
WALL-MOUNT BRACKET (not provided)
4
4
M6
9.5~11.5mm
2. Secure the Column base to the Base
stand with the 2 screws in accessary
tightly.
1. Carefully place your TV facedown on a soft, flat surface to prevent damage to
the TV or scratching to the screen.
3. Align the Base support with the screw
holes on the bottom of TV BACK, secure
the BASE support to the TV with the 2
screws in accessary tightly.
M4×10
M4×10
Base support
Column base
Base stand
To Next Page
