5.0. Installation
S
1x BOX A
(L) 1100mm (W) 475mm (H) 150mm
1x BOX B
(L) 1200mm (W) 440mm (H) 145mm
Frame tubes,
Leaf Springs, Jump mat
Net poles, Joiner poles,
Safety net
M
1x BOX A
(L) 1200mm (W) 470mm (H) 100mm
1x BOX B
(L) 760mm (W) 385mm (H) 170mm
1x BOX C
(L) 1210mm (W) 300mm (H) 250mm
Frame tubes Joiner poles, Leaf Springs
Net poles, Safety net, Jump
mat
L
1x BOX A
(L) 820mm (W) 380mm (H) 185mm
1x BOX B
(L) 750mm (W) 385mm (H) 175mm
1x BOX C
(L) 1210mm (W) 300mm (H) 275mm
Frame tubes Joiner poles, Leaf Springs
Net poles, Safety net, Jump
mat
XL
1x BOX A
(L) 840mm (W) 415mm (H) 185mm
1x BOX B
(L) 730mm (W) 540mm (H) 245mm
1x BOX C
(L) 1200mm (W) 325mm (H) 195mm
1x BOX D
(L) 560mm (W) 290mm (H) 120mm
Frame tubes Joiner poles, Jump mat Net poles, Safety net Leaf Springs

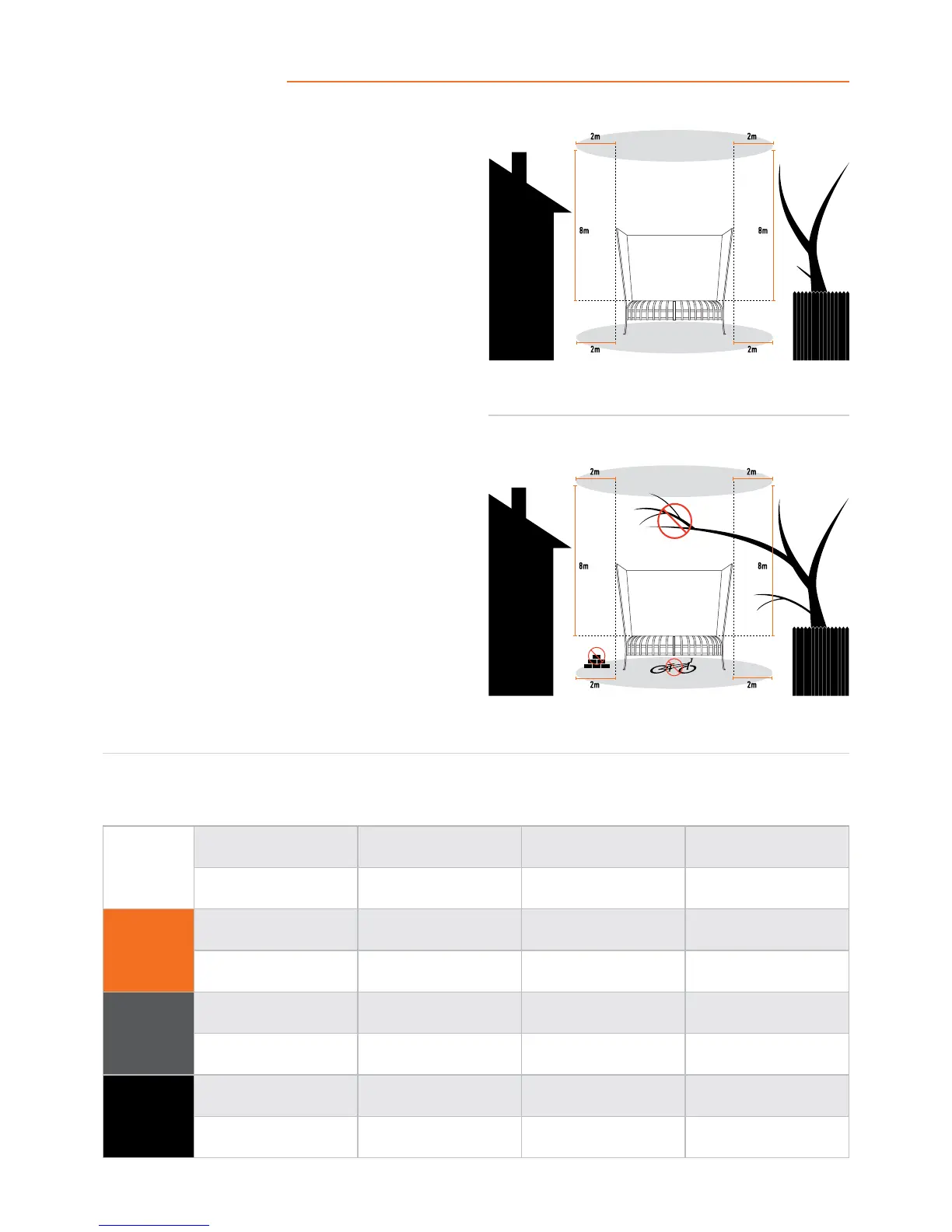

Correct Installation
Incorrect Installation
5.2. Parts checklist
5.1. Location planning
• Do not bury the trampoline into the ground.
• Place the trampoline on a flat, level surface with impact attenuating
properties – such as grass.
• Ensure that the trampoline is sufficiently stable, to prevent the
trampoline from tipping over or blowing away. Sandbags or pegs
may be suitable anchorage devices.
• Keep a minimum of 8 m overhead clearance, when measured
from the bed height, to prevent users from inadvertently contacting
overhead hazards – such as electric wires, tree limbs and clotheslines.
• Maintain a minimum clearance of 2 m on all sides of the trampoline.
This area should not include concrete, bitumen, brick or other hard
surfaces, as these can cause serious injuries if users fall off the
trampoline.
• Do not locate the trampoline on top of other objects or store anything
underneath the trampoline bed.
• Keep the area around and underneath the trampoline clear. Place
the trampoline away from walls, structures, fences and other play
areas.
• Place the trampoline in a well-lit area.
