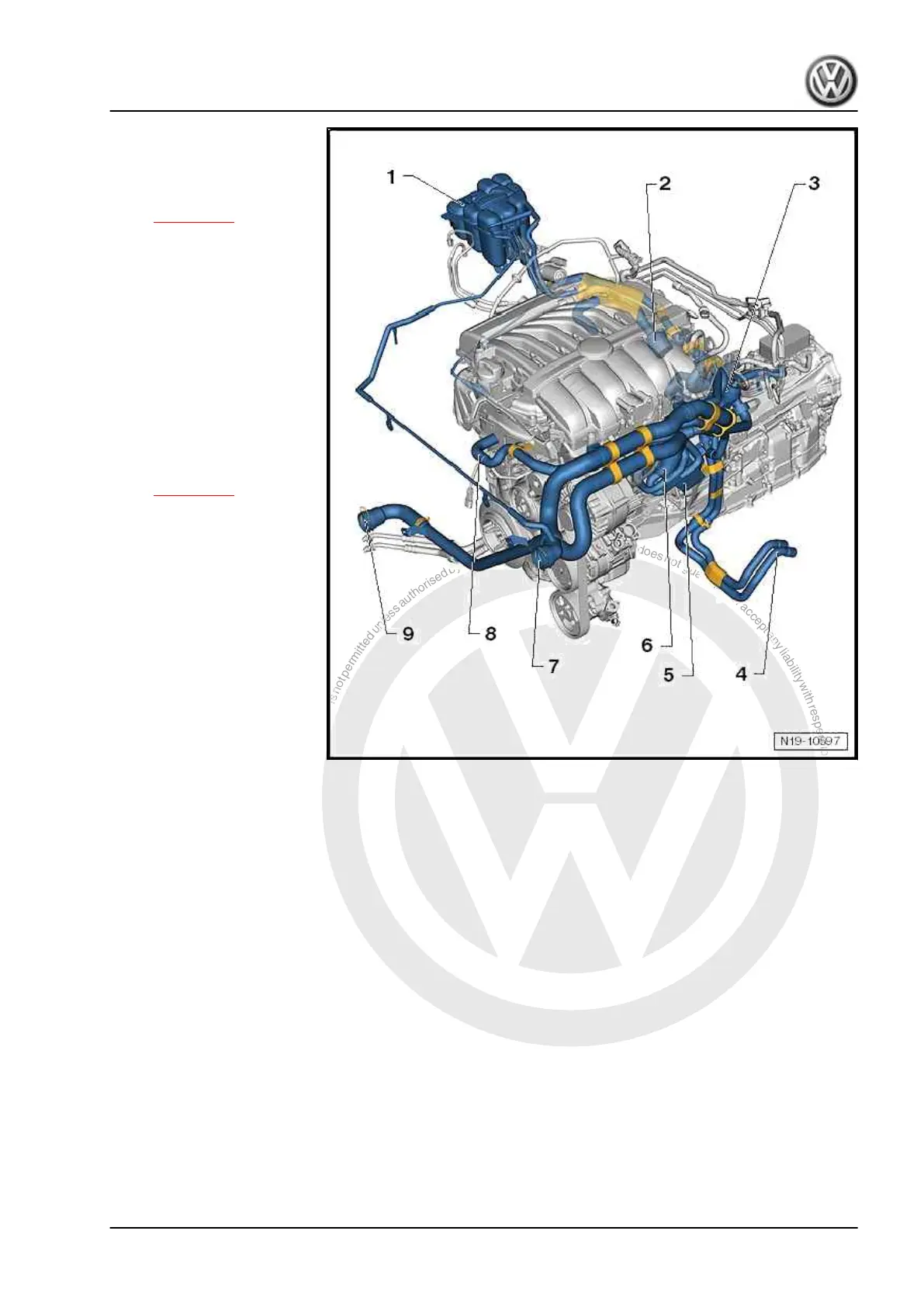

1 - Coolant expansion tank
2 - Coolant circulation pump 2
- V178-
❑ Removing and installing
⇒ page 149
3 - Cylinder block shut-off
valve
❑ To remove, remove
centre plenum chamber
bulkhead ⇒ General
body repairs, exterior;
Rep. gr. 50 ; Plenum
chamber bulkhead .
4 - Hoses of heat exchanger
for heating system
5 - Engine oil cooler
6 - Thermostat housing
❑ Removing and installing
⇒ page 150
7 - Union
❑ For top of radiator.
8 - Non-return valve
❑ in coolant hose
9 - Union
❑ For bottom of radiator
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Cooling system (engine code CGRA) 141
