15 – Cylinder head, valve gear
1 Chain drive
⇒ “1.1 Checking valve timing”, page 62 .
⇒ “1.2 Removing and installing camshaft adjuster”, page 64 .
⇒ “1.3 Removing and installing camshaft timing chain”,
page 71 .
⇒ “1.4 Removing and installing oil pump drive timing chain”, page
74 .
⇒ “1.5 Removing and installing chain drive sprocket for high-
pressure pump”, page 78

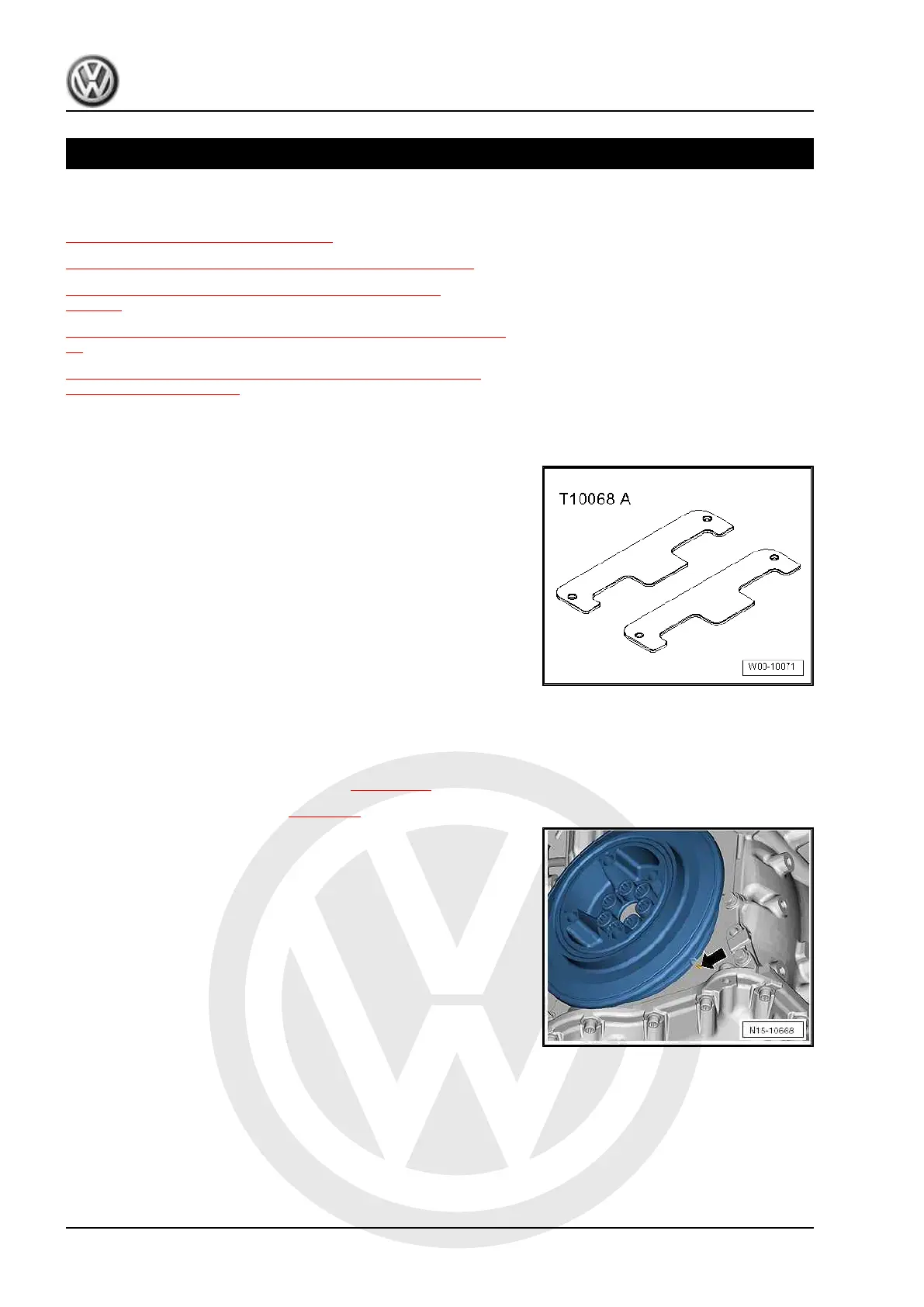

1.1 Checking valve timing
Special tools and workshop equipment required
♦ Camshaft bar - T10068 A-
Test sequence
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 50 ; Assembly overview - noise insulation .
– Remove upper part of intake manifold ⇒ page 236 .
– Remove cylinder head cover ⇒ page 90 .
– Turn crankshaft in engine direction of rotation to TDC No. 1
cylinder marking.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
62 Rep. gr.15 - Cylinder head, valve gear
