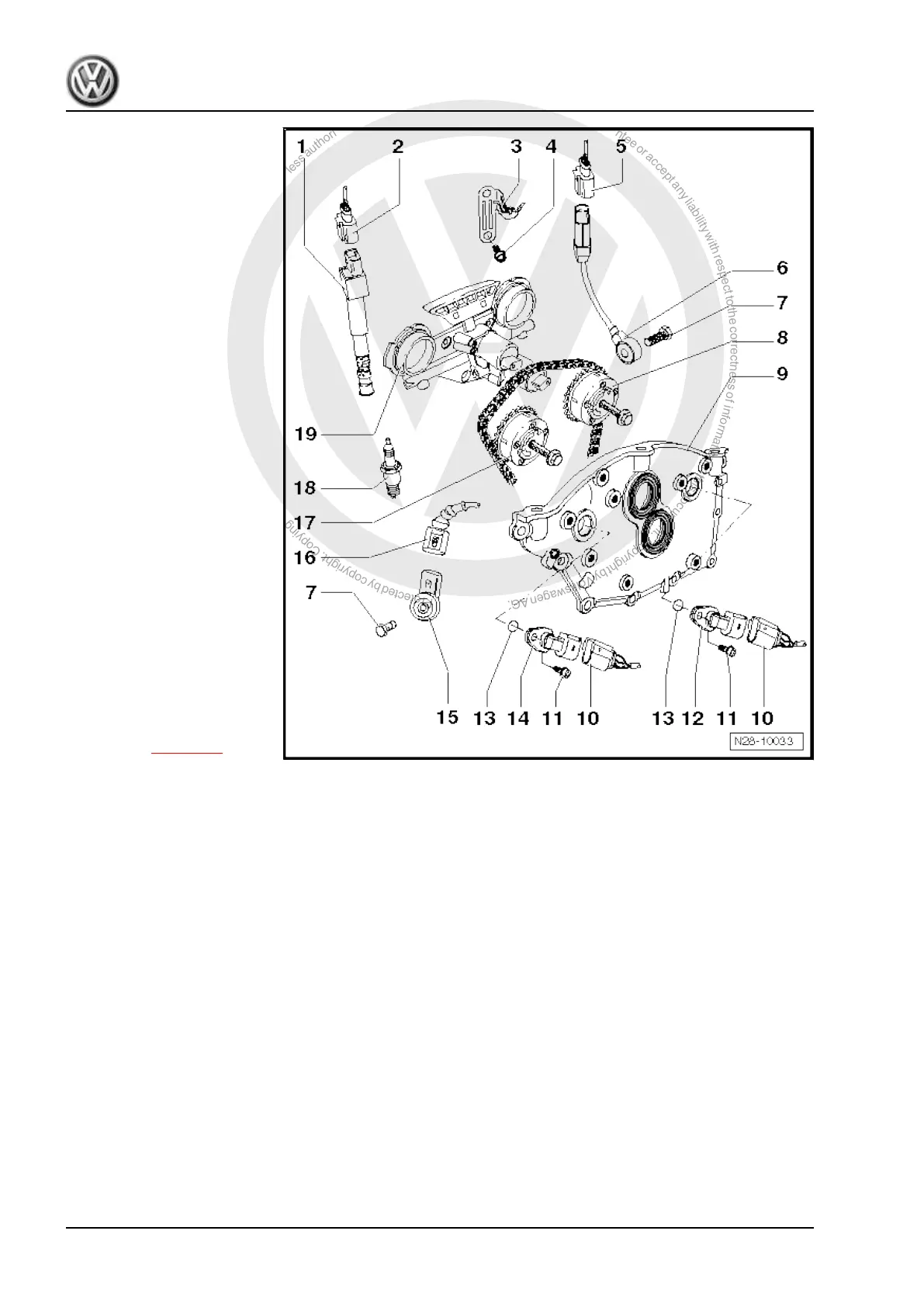

1 - Ignition coil with output
stage - N70, N127, N291,
N292, N323, N324-
❑ Remove and install with
puller - T10095 A- .
2 - Connector
❑ black
❑ Use assembly tool -
T10118- to pull off.
3 - Holder
❑ For connector for knock
sensor 1 - G61- .
4 - 20 Nm
5 - Connector
❑ Black, 3-pin.
❑ Gold-plated contacts on
sensor and connector.
6 - Knock sensor 1 - G61-
❑ Location: cylinder block
exhaust side
7 - 20 Nm
❑ The specified torque in‐
fluences the function of
the knock sensor.
8 - Exhaust camshaft adjuster
❑ Identification: 32A.
❑ With sender wheel for
Hall sender 2 - G163-
❑ Install camshaft adjust‐
er with camshaft timing
chain ⇒ page 64 .
9 - Cover
10 - Connector
❑ Black, 3-pin.
❑ Gold-plated contacts on sensor and connector.
11 - 10 Nm
12 - Hall sender 2 - G163-
❑ For exhaust camshaft
❑ Gold-plated contacts on sensor and connector.
13 - Seal
❑ Renew
14 - Hall sender - G40-
❑ For inlet camshaft
❑ Gold-plated contacts on sensor and connector.
15 - Knock sensor 2 - G66-
❑ Fitting location: cylinder block intake side
❑ Gold-plated contacts on sensor and connector.
16 - Connector
❑ Black, 2-pin.
❑ Gold-plated contacts on sensor and connector.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
270 Rep. gr.28 - Ignition system
