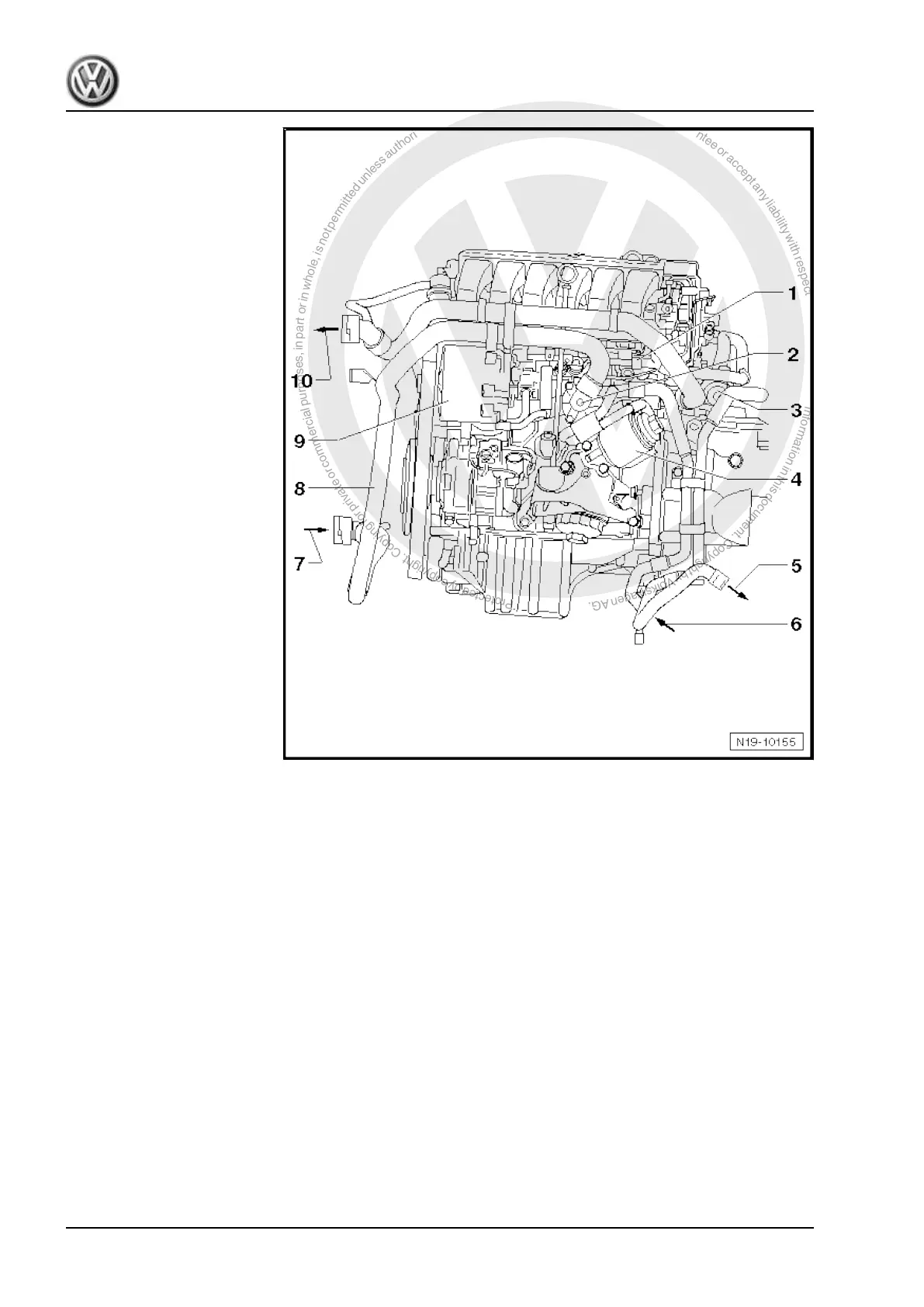

1 - Coolant pipe
❑ Bolted to intake mani‐
fold with 6 Nm.
2 - Coolant pipe
❑ With thermostat hous‐
ing
3 - Electric coolant pump
4 - Engine oil cooler
❑ For engine oil
5 - To heat exchanger
6 - From heat exchanger
7 - From bottom of radiator.
8 - Front coolant pipe
9 - Alternator
10 - To top of radiator
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
144 Rep. gr.19 - Cooling
