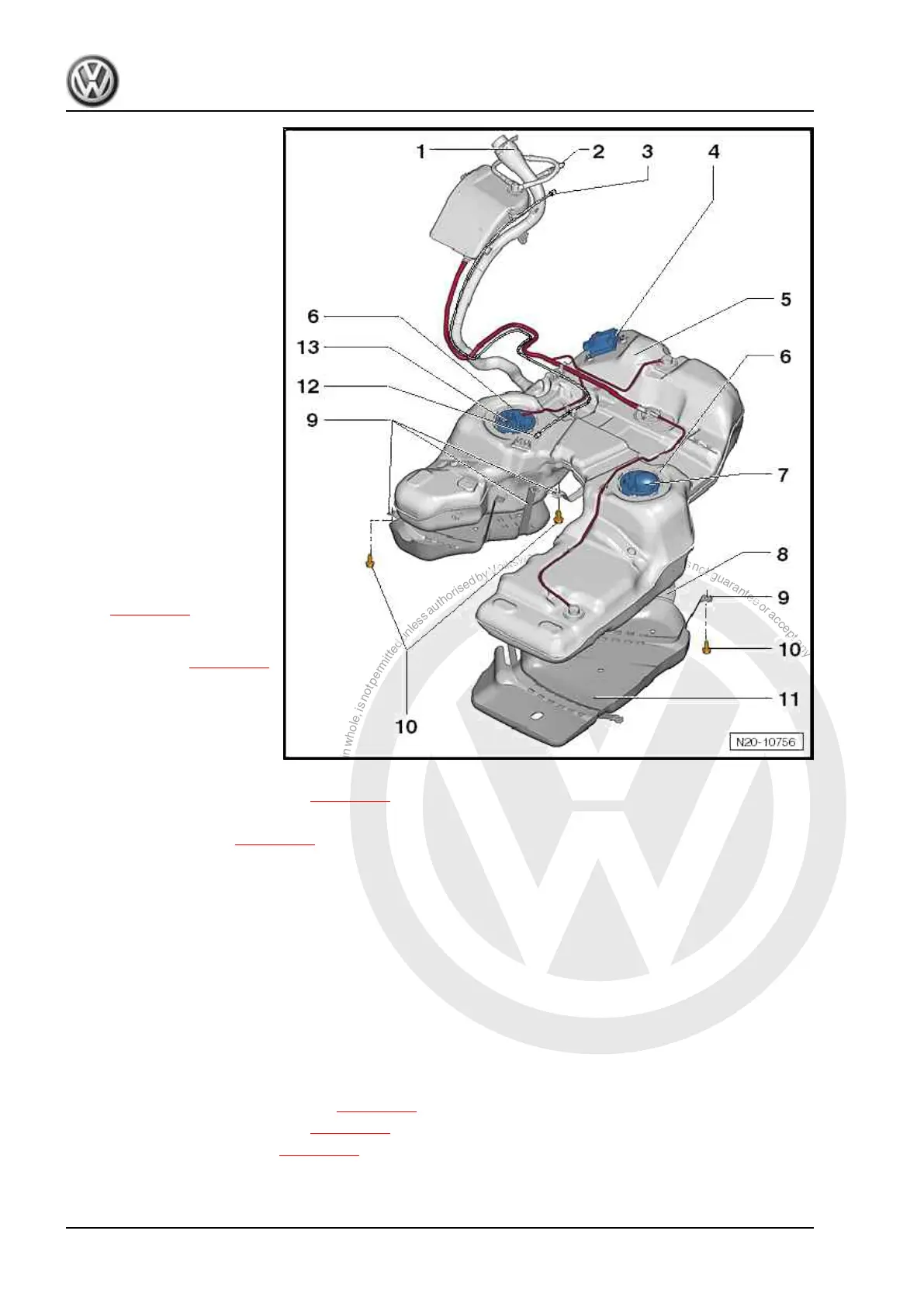

1 - Fuel tank filler neck
❑ With connection for
earth cable to body.
❑ Ensure firm seating
❑ Screw onto body to 10
Nm.
2 - Breather line
❑ From fuel tank
❑ To activated charcoal fil‐
ter
3 - Breather line
❑ From activated charcoal
filter system solenoid
valve 1 - N80-
❑ To activated charcoal fil‐
ter
4 - Fuel pump control unit -
J538-
5 - Fuel
❑ When removing, sup‐
port using engine and
gearbox jack -
V.A.G 1383 A- .
❑ Removing and installing
⇒ page 191
❑ Drain fuel tank using
fuel extractor -
VAS 5190- ⇒ page 181
6 - Locking ring 145 Nm
❑ Remove and install us‐
ing wrench - T10202- .
❑ Ensure firm seating
7 - Fuel filter
❑ Installation position of flange ⇒ page 177
❑ Always renew flange seal.
❑ Fuel filter: Renew ⇒ page 179
8 - Heat shield
9 - Securing strap
❑ Observe installation position
❑ Ensure firm seating
10 - 33 Nm
11 - Protective cover
❑ For bottom of fuel tank
12 - Line coupling
❑ Release by pressing button on line coupling
13 - Fuel delivery unit
❑ Individual flange parts, right side ⇒ page 177
❑ Installation position of flange ⇒ page 177
❑ Removing and installing ⇒ page 188
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
176 Rep. gr.20 - Fuel supply system
