– Remove Lambda probes with Lambda probe open ring span‐
ner set - 3337- .

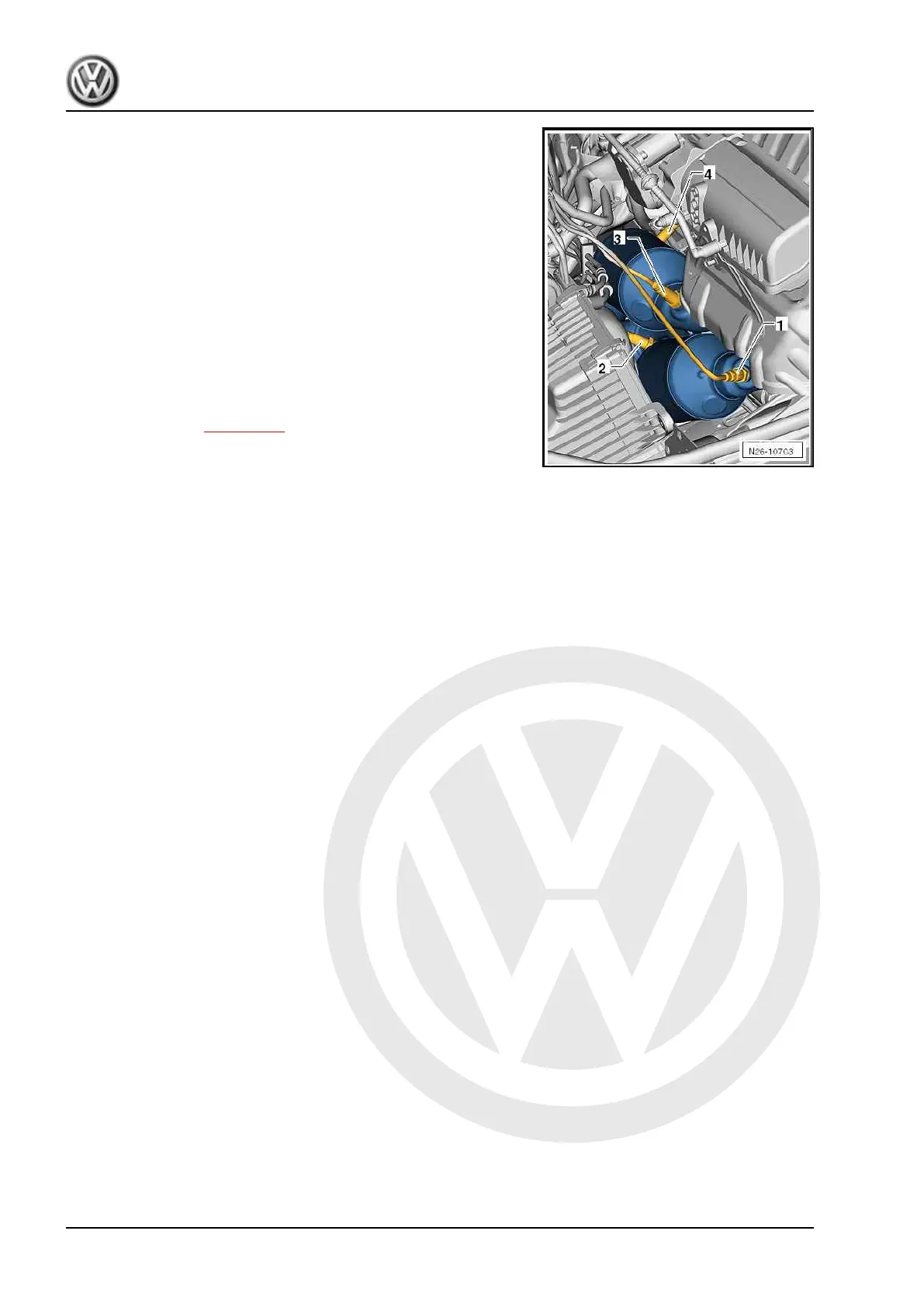

1 - Lambda probe - G39- (exhaust bank 1, probe 1)
2 - Lambda probe after catalytic converter - G130- (exhaust
bank 1, probe 2)
3 - Lambda probe 2 - G108- (exhaust bank 2, probe 1)
4 - Lambda probe 2 after catalytic converter - G131- (exhaust
bank 2, probe 2):
Install Lambda probes:
Install in the reverse order of removal, observing the following:
♦ When re-using the old Lambda probe, grease thread with high-
temperature paste - G 052 112 A3- ; the paste must not get
into the slots of the probe body.
♦ Specified torque ⇒ page 256
