W Box Technologies 0E-13BF40 - Installation

10
3
Zoom and Focus Lever
4
IR LED
5
Lens
6
Air Vent
7
Video Output Interface
8
Integrated Bracket
9
Reset Button
10
Micro SD Card Slot
11
Power Interface
12
Network Interface

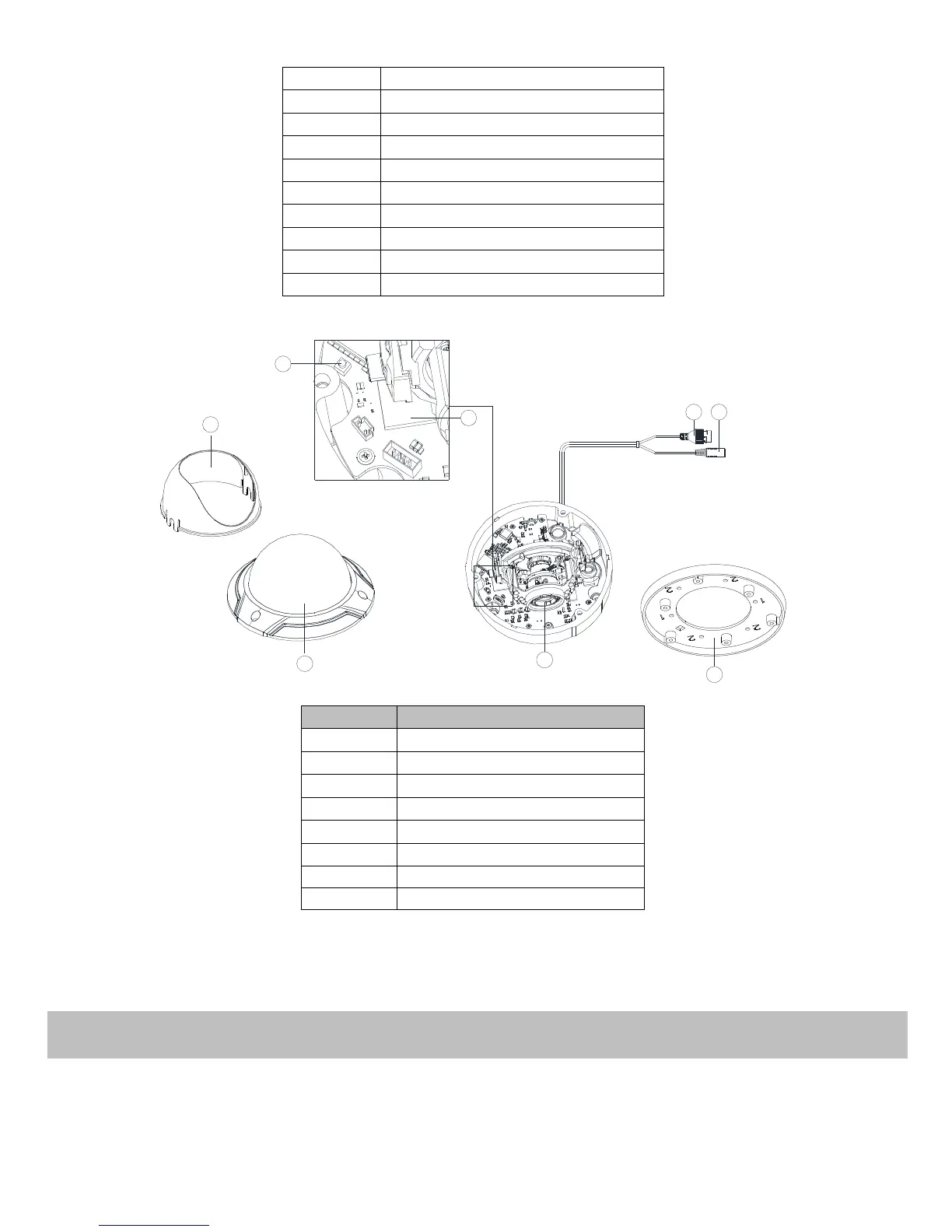

0E-xxDVF2812
No.
Description
1
Inner Housing
2
Bubble
3
Network Interface
4
Power Interface
5
Reset Button
6
SD Card Slot
7
Lens
8
Mounting Base
NOTE:
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user
name, password, IP address, port No., etc.
Installation
Before you start:
Make sure the device in the package is in good condition and all the assembly parts are included.
Make sure all the related equipment is power-off during the installation.
2
1
3
4
7
8
5
6
