W Box 0E-HDMIEXTDR - Panel Overview; Transmitter Panel Details

3

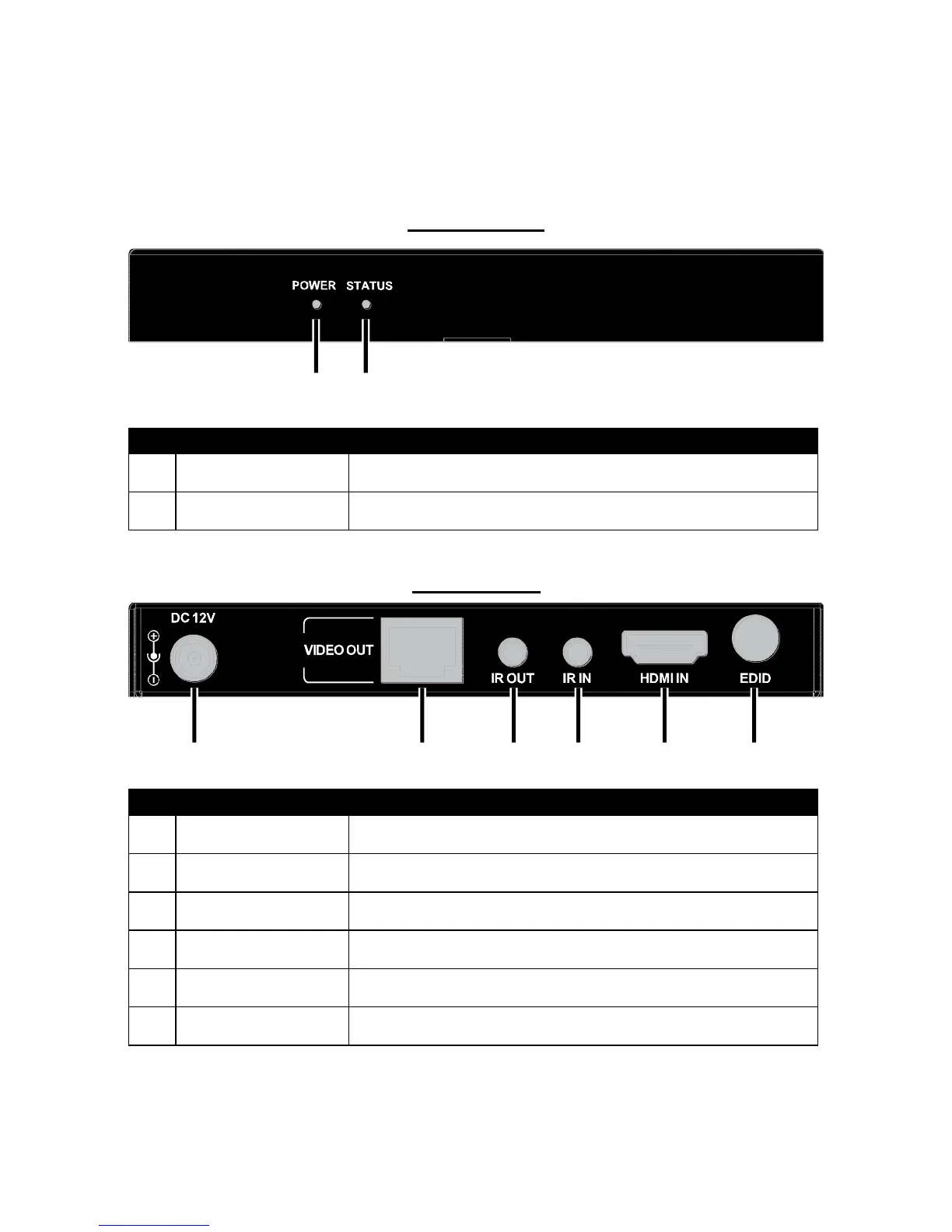

Panel
Transmitter
Front Panel
1 2
ID
Name
Description
1
Power
Displays power status
2
Status
Displays signal connection status
Rear Panel
1 2 3 4 5 6
ID
Name
Description
1
Power 1
12V 0.5A DC power supply input
2
VIDEO OUT
RJ45 port
3
IR OUT
Connects to an IR emitter
4
IR IN
Connects to an IR receiver (30-50KHz)
5
HDMI IN
Connects to an HDMI source
6
EDID
EDID DIP switch
