CAS-GPS IVU BASIC SYSTEMS INSTALLATION MANUAL DOCU0085 Revision Q
Haul Truck

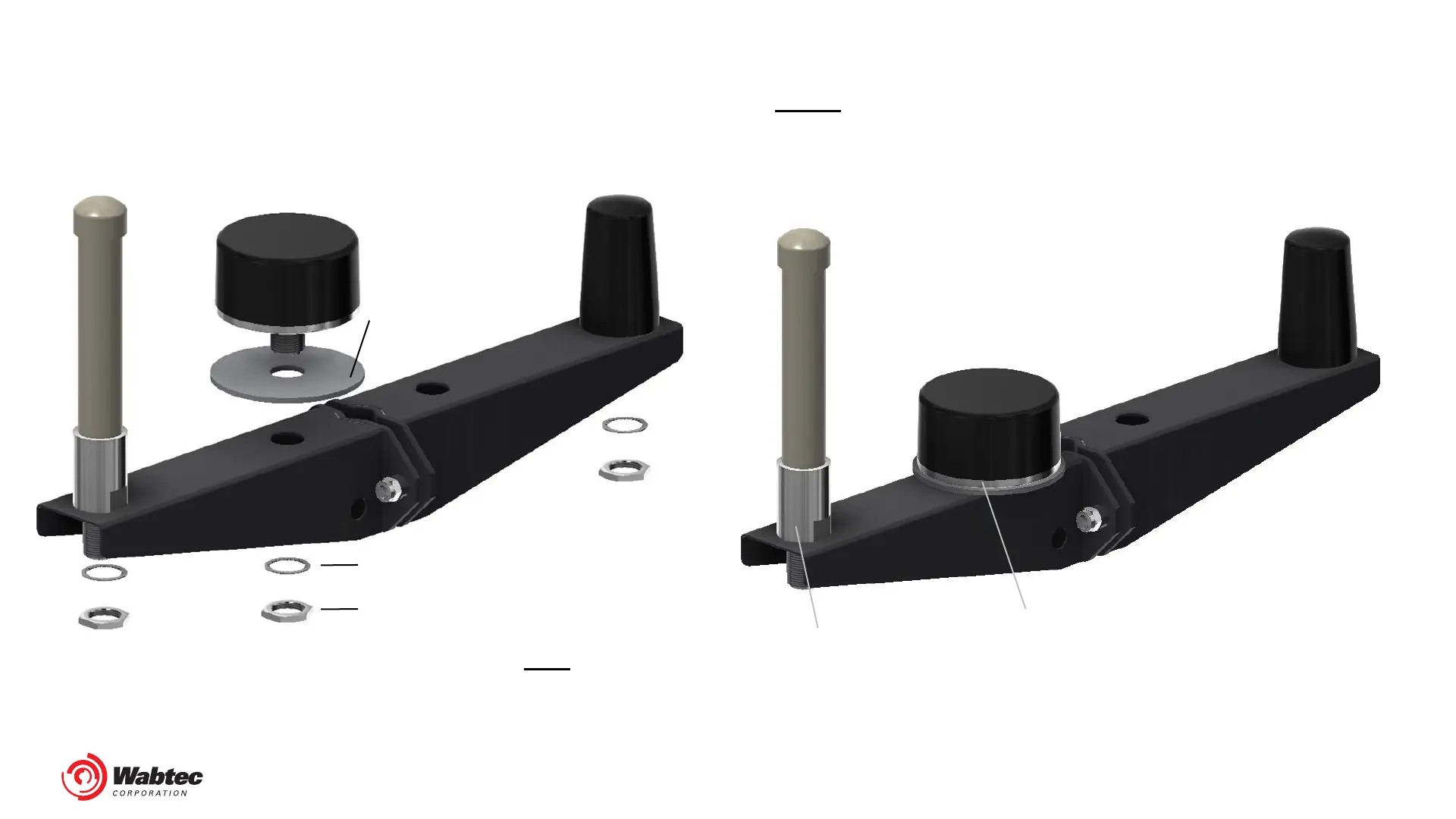

GPS ANTENNA
V2V ANTENNA
WiFI or
GPRS/GSM
ANTENNA
Note:
An extended depth socket spanner may be
required to tighten the antenna fixing nuts within
the bracket channel.
STEE0690
WASHER
NOTE:
1. WHERE No WiFi OR GPRS ANTENNA IS DEPLOYED,
MOUNT GPS ANTENNA AT POSITION 1
2. SECURE NUTS WITH LOCTITE 243
LOCK
WASHER
NUT
POSITION 1
POSITION 2
