CAS-GPS IVU BASIC SYSTEMS INSTALLATION MANUAL DOCU0085 Revision Q

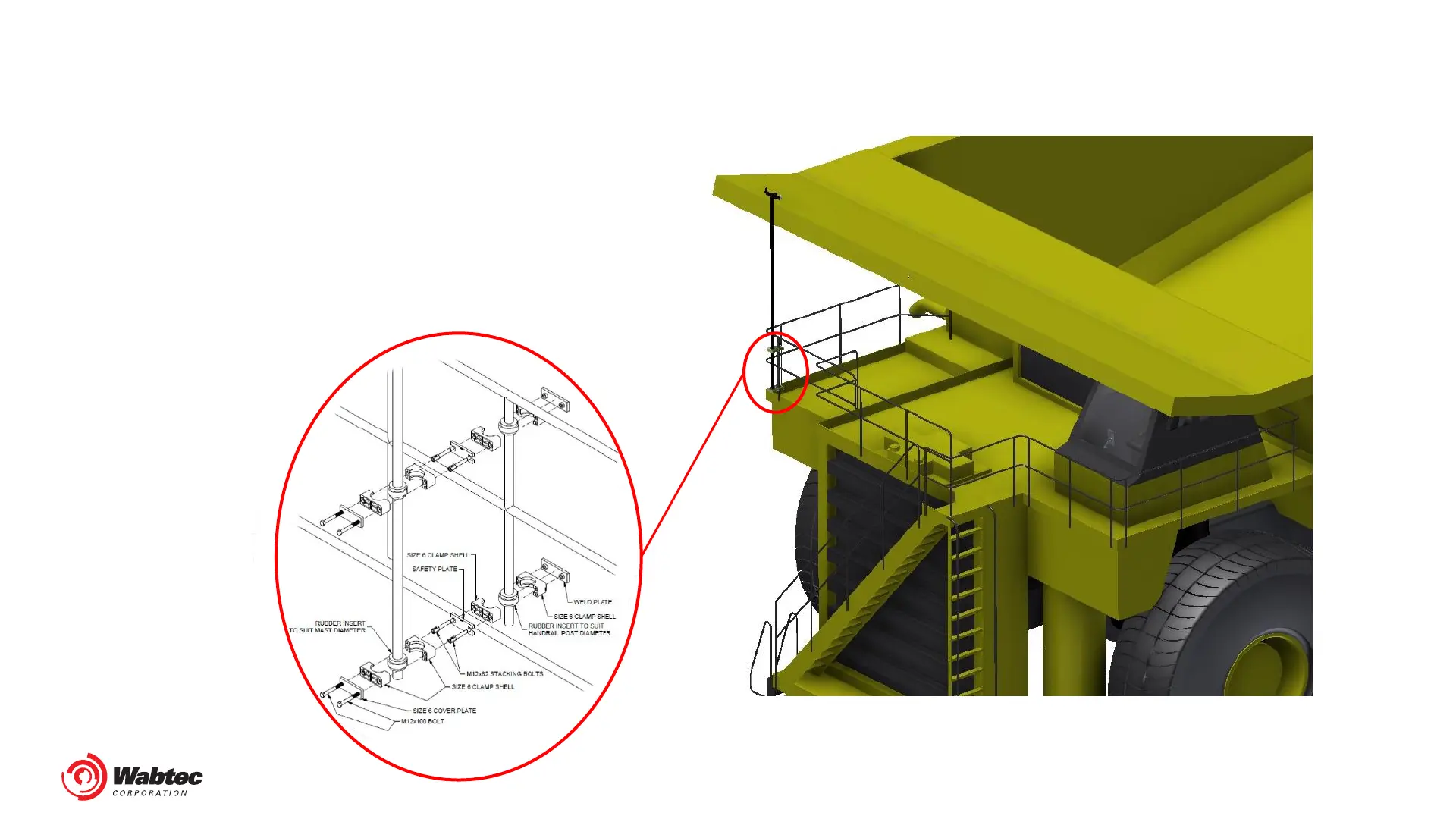

Stauff clamp sizes used must be correctly chosen for the handrail
tube size from the Size 6 heavy series Stauff clamping system
Available rubber inserts are:
32mm, 33.7mm, 35mm, 38.7mm, 40mm, 42mm, 45.5mm, 48mm,
51mm, 53.4mm, 56.4mm.
Available clamp bodies are:
38mm, 42mm, 44.5mm, 48.3mm, 50.8mm, 55mm, 57mm,
60.3mm, 60.5mm, 65mm, 70mm.
Haul Truck
