CAS-GPS IVU BASIC SYSTEMS INSTALLATION MANUAL DOCU0085 Revision Q
PROD0181
DISPLAY
UNIT INPUT
CABLE
12 WAY DEUTSCH
CONNECTOR
INTERFACE
6 WAY DEUTSCH
CONNECTOR
INTERFACE
CASGPS IN-VEHICLE
UNIT (IVU)
CASGPS DISPLAY
PROD0850-xM
CASGPS IVU TO
DISPLAY CABLE
PROD0118
CAMERA UNIT
24 WAY DEUTSCH
CONNECTOR
INTERFACE
IGNITION SIGNAL
PROD0182
DISPLAY TO
IVU/CAMERA
RF CABLE
HEAVY VEHICLE RF
UNIT (TYPICALLY
PROD0169)
PROD0183
CAMERA TO RF
UNIT CABLE
VEHICLE
SIGNALS AND POWER
FROM VEHICLE
BATTERY

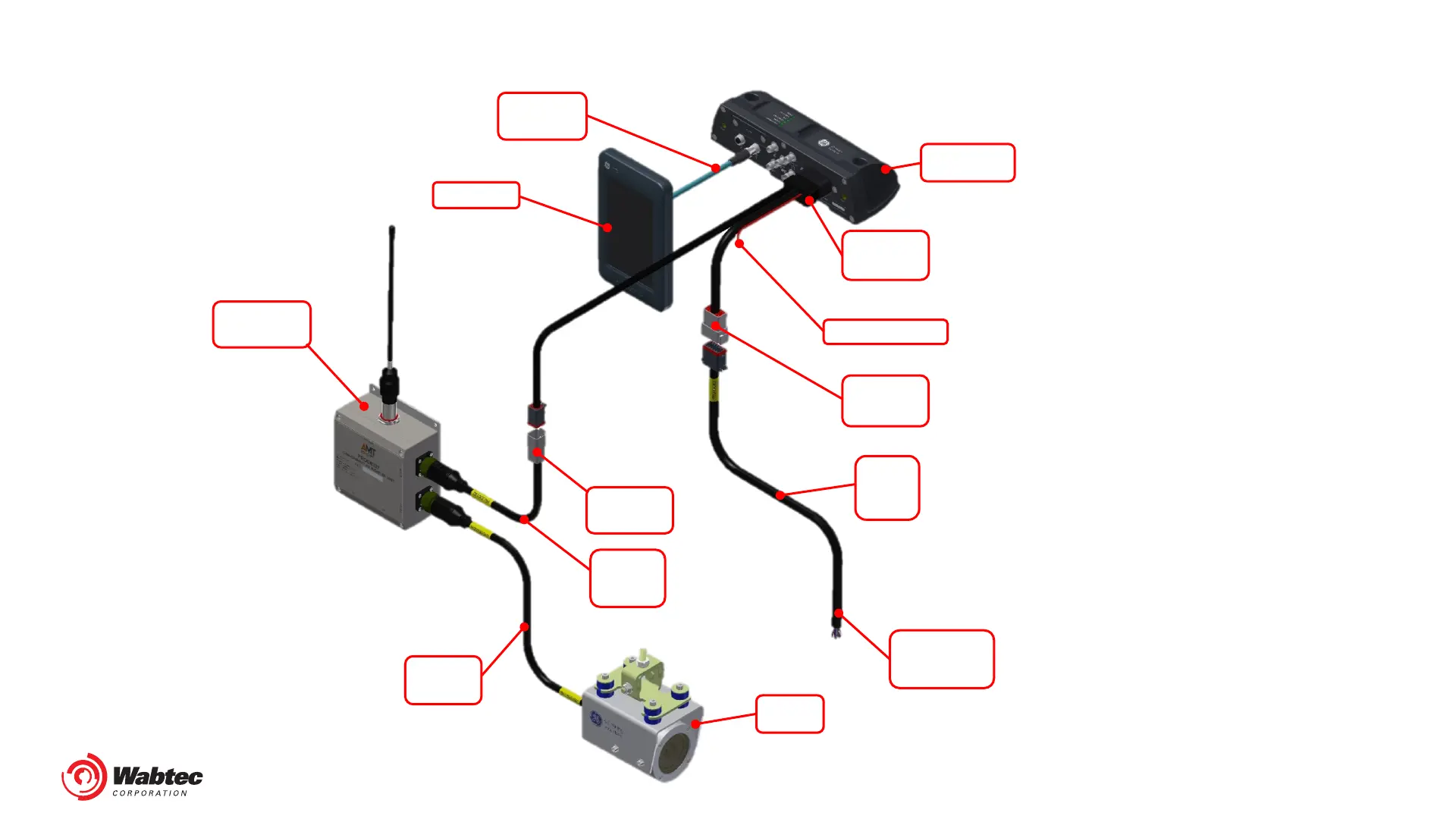

Interconnections – 1CAM/1RF
