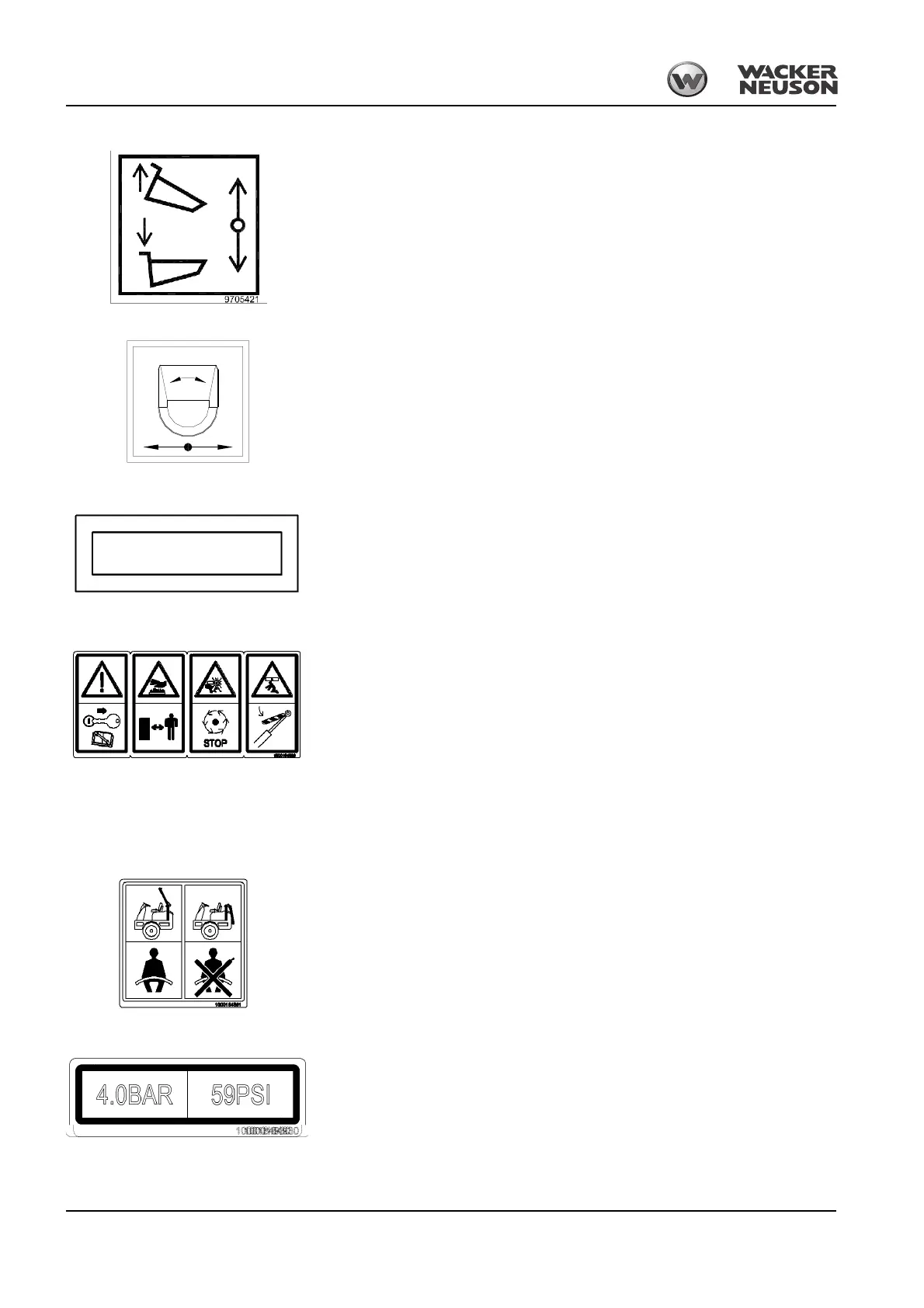

Introduction
Description
Shows how the dump bucket can be dumped out.
Location
On the engine cover
Description
Shows how the dump bucket can be swivelled.
Location
On the engine cover
Description
Machine serial number label
Location
At the front right of the chassis
Description
1. Attention! Remove starter key and read the Service Manual before servicing the
machine.
2. Hot surface! Do not touch. Keep a safe distance from the machine.
3. Cutting hazard. Cooling fan can cut when rotating. Stop engine before working on the
engine or cooling system.
4. Crushing hazard. Place safety strut in blocking position on the hydraulic cylinder before
performing maintenance.
Location
On the engine cover
Description
Always fasten the seat belt if the rollbar is raised!
Do not use the seat belt when the ROPS is lowered to the stored position.
Location
On the engine cover
Description
Recommended tire inflation pressure. Read the Operator’s Manual for detailed instructions
and load ratings.
Location
On the mudguards and the dump bucke
Fig. 17: Dumping out the dump bucket
Fig. 18: Swivelling the dump bucket
