BA 50Z3/6003 en – Edition 4.3 * 5003b330.fm 3-79
Operation

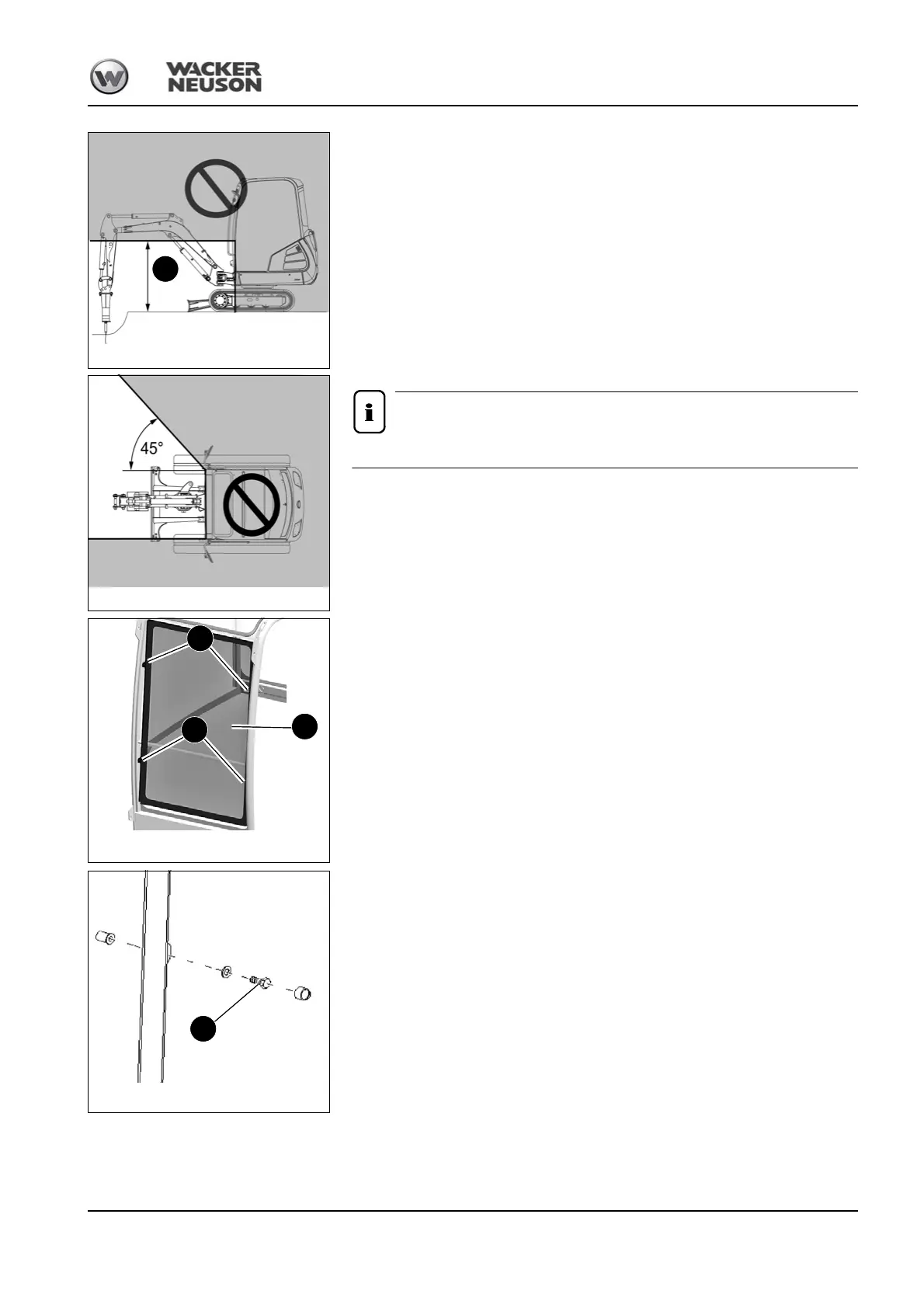

Work area with shatter protection
Height of work area A: 120 cm (47 in).
Figures 161 and 162 refer to work with a Wacker Neuson hydraulic hammer.
Working with another attachment can modify the height of the work area.
Installing
1 Stop and park the machine. Stop the engine.
2 Install/remove shatter protection B from the front and fasten/remove it at the fas-
tening points C with the fastening material supplied.
3 Tighten screws D at fastening points C to 25 Nm (18 ft.lbs).
Fig. 161: Work area with shatter protection
A
Fig. 162: Work area with shatter protection (top view)
Fig. 163: Installing the shatter protection (symbolic repre-
sentation)
C
C
B
Fig. 164: Installing the shatter protection (detailed view)
D
