Maintenance
Lubrication points of live ring teeth
Do not rotate the machine during lubrication.
Danger of severe crushing that can cause death or severe injury.
☞ – see Parking the machine on page 5-43
Lubrication can be performed over a pit only.
☞ Drive and stop the machine over a pit.
☞ The lubrication point is located on the lower side of the travel gear.
☞ Remove cover A on the lower side with a suitable tool.
☞ Apply grease to lubrication point 14 with five strokes of the grease gun.
☞ Remove ejected grease.
☞ Install the cover.

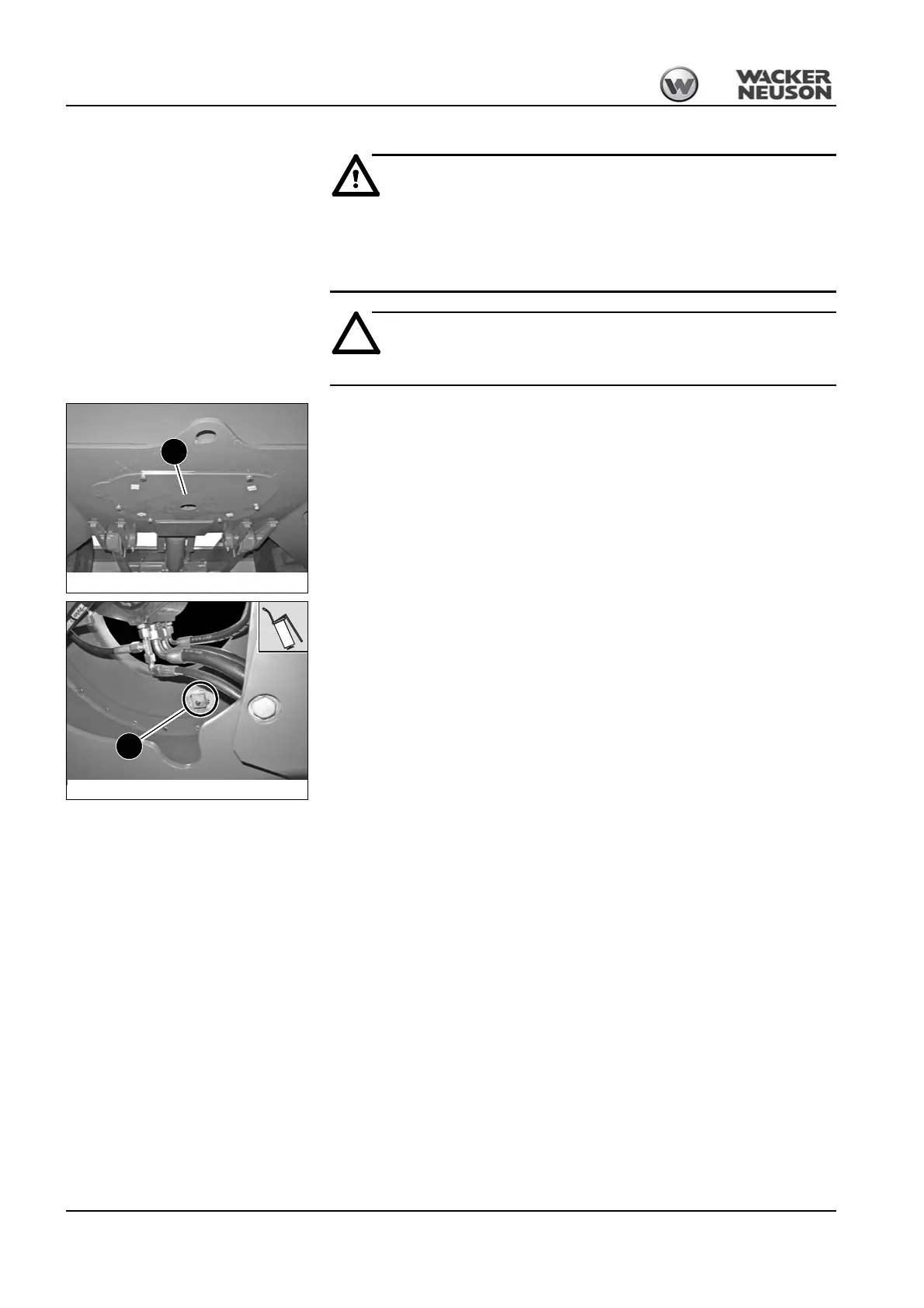

Fig. 319: Removing the cover
A
Fig. 320: Teeth lubrication point
14
