OM 75Z3/8003 US – Edition 4.0 * 7003b110.fm 1-19
Introduction

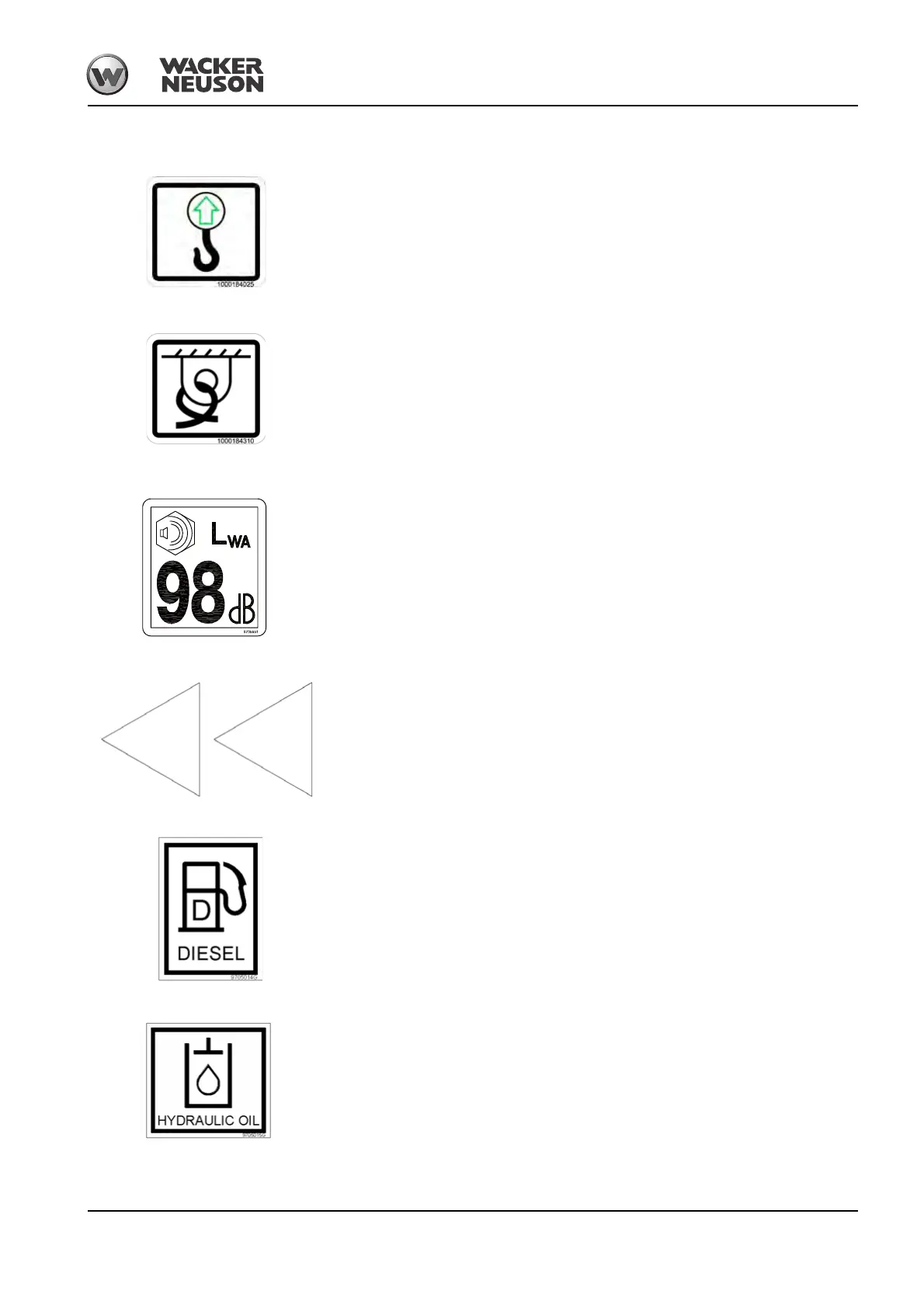

The following states signs and symbols that do not contain explanatory text and that are
not explained in the following chapters.
Description
Lifting points for raising the machine.
– see chapter 3.44 Lifting the Excavator on page 3-70
Location
On either side of the stabilizer blade, and on either side of the boom.
Description
Points for tying down the machine.
– see chapter 3.46 Tying down the machine on page 3-73
Location
On either side of the stabilizer blade, and on either side of the undercarriage.
Description
Noise levels produced by the machine.
L
WA
= sound power level
– see chapter 6.9 Noise levels on page 6-6
Location
At the front on the chassis.
Description
This label shows the forward driving direction.
Location
On either side of the undercarriage at the supporting rollers.
Description
Only add diesel fuel with a low content of sulphur.
– see chapter 5.21 Fluids and lubricants on page 5-54
Location
Near the fuel filler neck behind the rear window.
Description
Hydraulic oil reservoir. Use only specified hydraulic fluids.
– see chapter 5.21 Fluids and lubricants on page 5-54
Location
On the outside behind the rear window.
Fig. 30: Points for tying down the machine
Fig. 31: Noise level indication
Fig. 32: Direction arrows
