Wacker Neuson AD 75LGR - Schematic; Electrical Schematic Diagram

AD 75LGR Schematic
ghi_tx001196gb.fm 27
6 Schematic

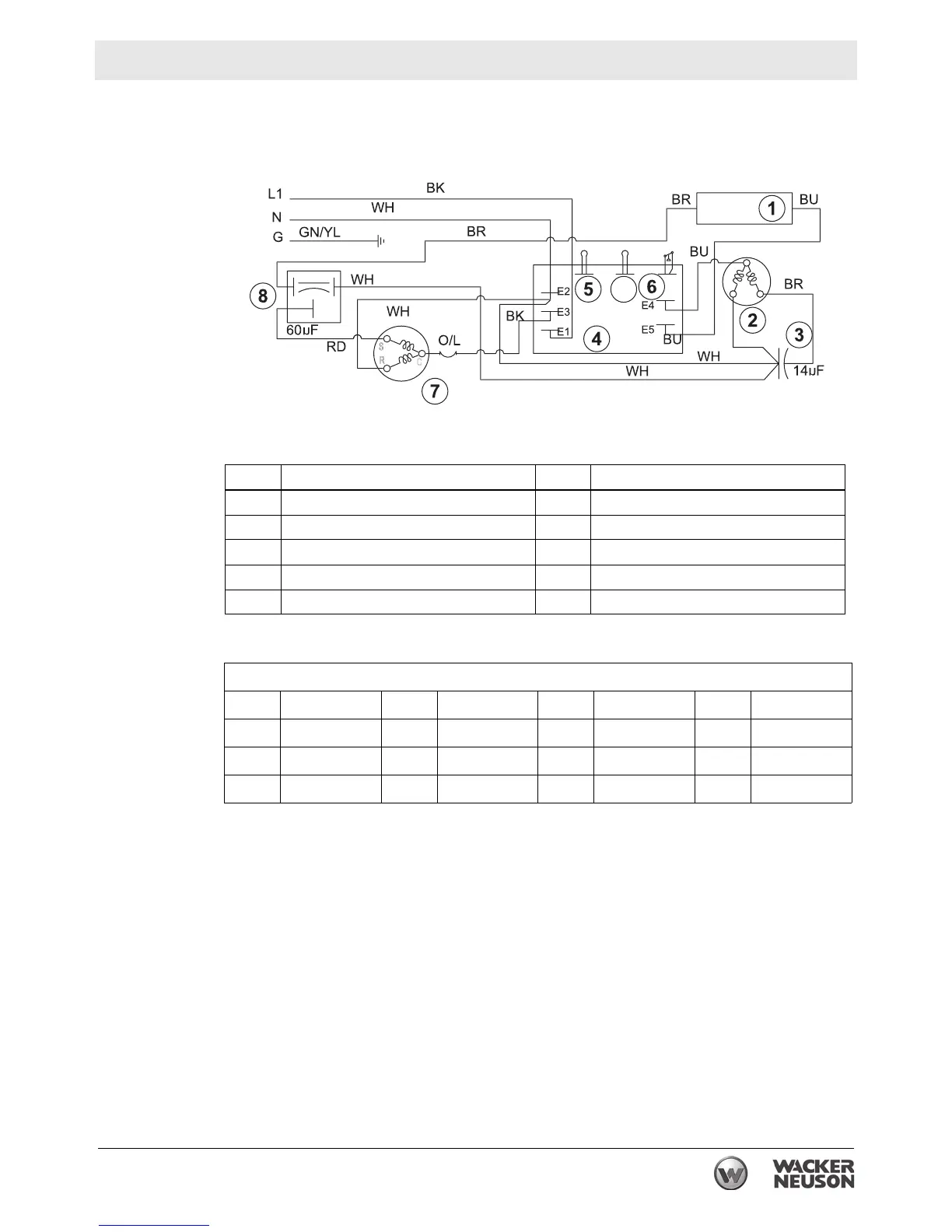

6.1 Dehumidifier Electrical Schematic
wc_gr007623
9
R
S
Ref. Description Ref. Description
1 Pump 6 Float
2 Blower 7 Compressor
3 Blower capacitor 8 Compressor capacitor
4 Control panel 9 Pressure switch
5 Thermistor — —
Wire Colors
BK Black RD Red YL Yellow OR Orange
GN Green TN Tan BR Brown PU Purple
BU
Blue
VIO Violet CL Clear SH Shield
PK
Pink
WH White GY Gray LB Light blue
