Putting into operation 4
The seat can be adjusted as follows:
A Backrest
B Adjusting the weight
C Horizontal seat adjustment
Adjusting the backrest
1. Sit down on the operator seat.
2. Actuate handle A and move the backrest to the required position at the
same time.
3. Release handle A.
Adjusting the weight
1. Sit down on the operator seat.
2. Fold out the crank B.
3. Turn the crank B.

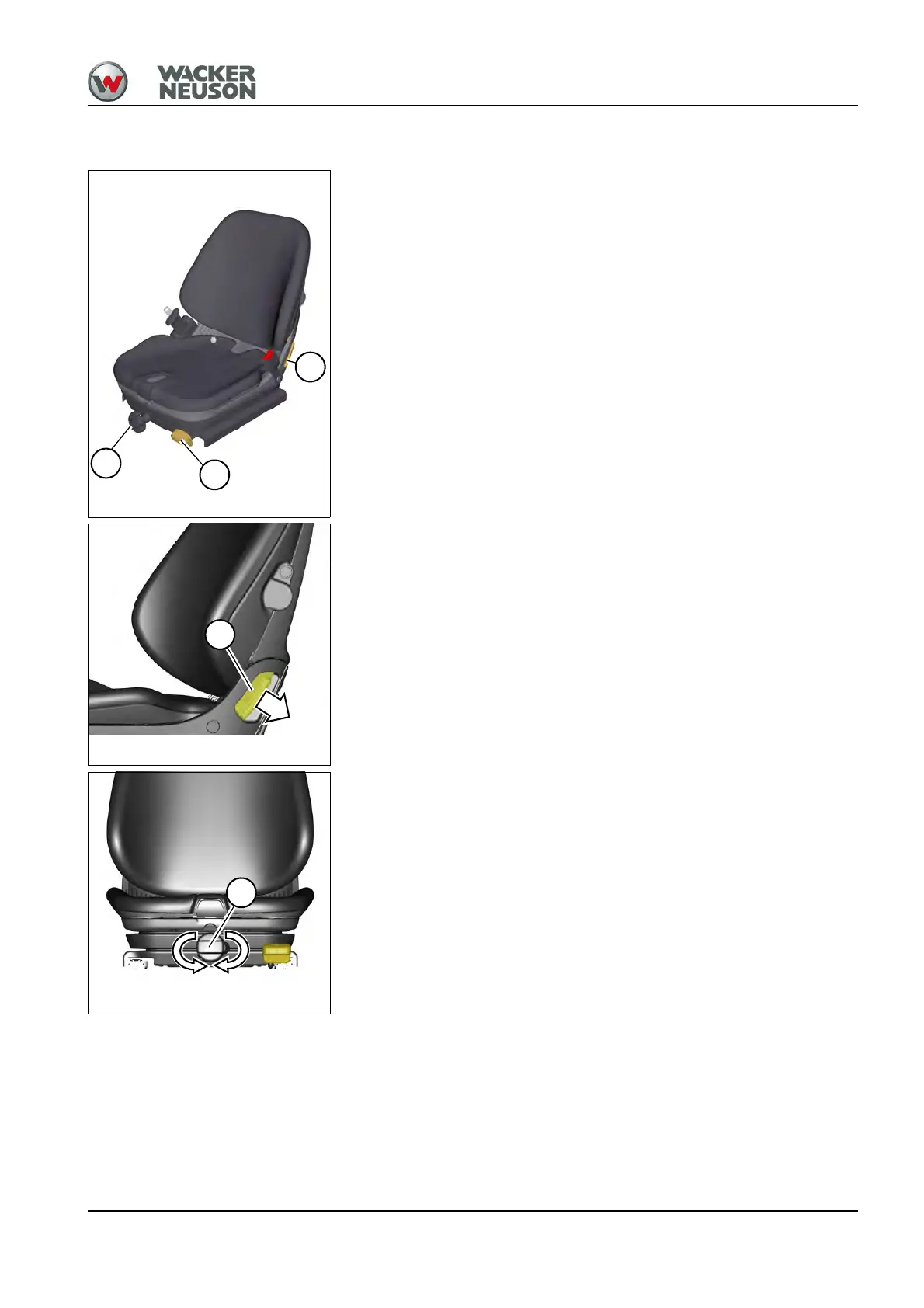

Fig. 64 Symbolic representation
A
C
B
Fig. 65 Adjusting the backrest
A
Fig. 66 Adjusting the weight
B
