4-6
BA
D24
en/us*
1.0
*
D24_1_0_400.fm
4
Putting into operation

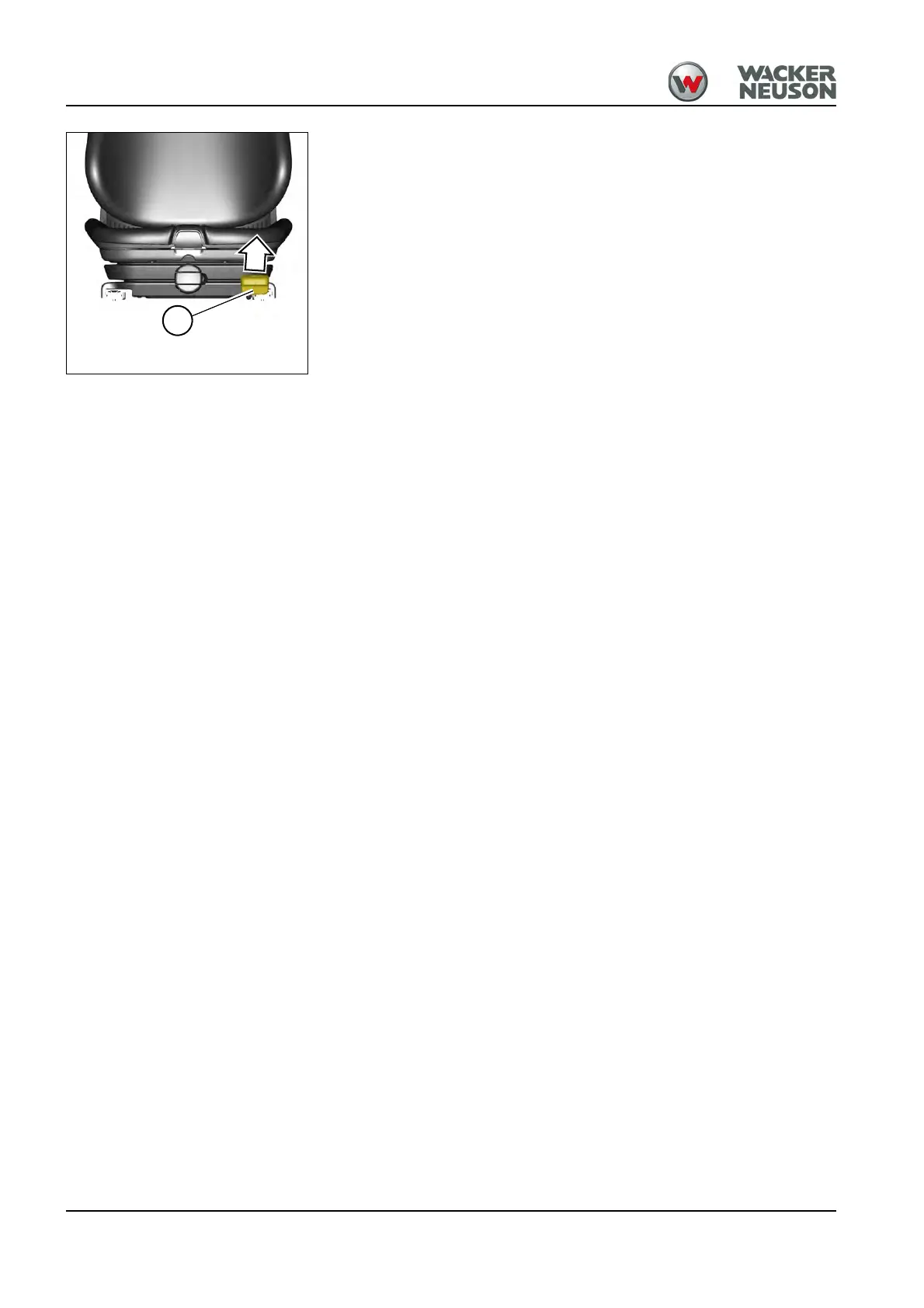

Set in lengthwise direction
1.
Sit down on the operator seat.
2.
Pull lever
C
upward and at the same time l
ock the seat in the require
d
position.
3.
Release the lever
C
.
Fig. 67 Set in le
ngthwise direction
C
67
69
Table of Contents
Default Chapter
3
Table of Contents
3
1 Foreword
9
Operator's Manual
9
Warranty and Liability
10
2 Safety
17
Safety Symbols and Signal Words
17
Qualification of Operating Personnel
18
Conduct
19
Operation
20
Lifting Gear Applications
24
Trailer Operation
27
Attachment Operation
27
Towing, Loading and Transporting
29
Maintenance
31
Measures for Avoiding Risks
34
3 Introduction
41
Machine Overview
41
Brief Description of the Vehicle
43
Labels
44
4 Putting into Operation
63
Cab/Control Console
63
Overview of Control Elements
81
Control and Warning Lights Overview
86
Preparatory Work
98
Starting and Stopping the Engine
100
5 Operation
109
Steering System
109
Accelerator Actuation
110
Brakes
111
Machine Travel
114
Differential Lock
119
Lighting/Signaling System
120
Wiper/Wash System (Option)
125
Heating, Ventilation and Air Conditioning System
126
Operating Hydraulics
127
Attachments
129
Work Operation
129
Emergency Lowering
134
Options
134
Putting out of Operation/Back into Operation
137
Permanently Putting out of Operation
139
6 Transportation
141
Towing the Vehicle
141
Loading the Vehicle
145
Transporting the Vehicle
149
7 Maintenance
151
Information on Maintenance
151
Maintenance Overview
152
Fluids and Lubricants
158
Maintenance Accesses
161
Cleaning and Maintenance
164
Lubrication Work
167
Fuel System
167
Engine Lubrication System
172
Cooling System
174
Air Filter
177
V-Belt
178
Hydraulic System
178
Electrical System
181
Heating, Ventilation and Air Conditioning System
183
Washer System
183
Axles
183
Braking System
183
Tyres
184
Maintenance of Attachments
185
Maintenance of Options
185
8 Malfunctions
187
Engine Warning Lights
187
Engine and Engine Oil Indicator Lights
187
General Malfunctions
188
9 Technical Data
191
Model Designations and Trade Names
191
Engine
191
Drive/Axles
192
Brakes
193
Tires
194
Steering System
194
Operating Hydraulics
194
Electrical System
196
Tightening Torques
200
Coolant
201
Noise Emissions
201
Vibrations
202
Weight
205
Payload
206
Dimensions
207
Index
209
