Front skip operation
During skip operation, always put forward-reverse control B for the travel
direction in neutral position 1.
Swivel skip operation
In order to turn the skip, raise it with control lever A until lock C is raised
from guide D.
During skip operation, always put slide switch B for the travel direction in
neutral position 1. Lower the skip only in the straight position to avoid
damage to the lock.

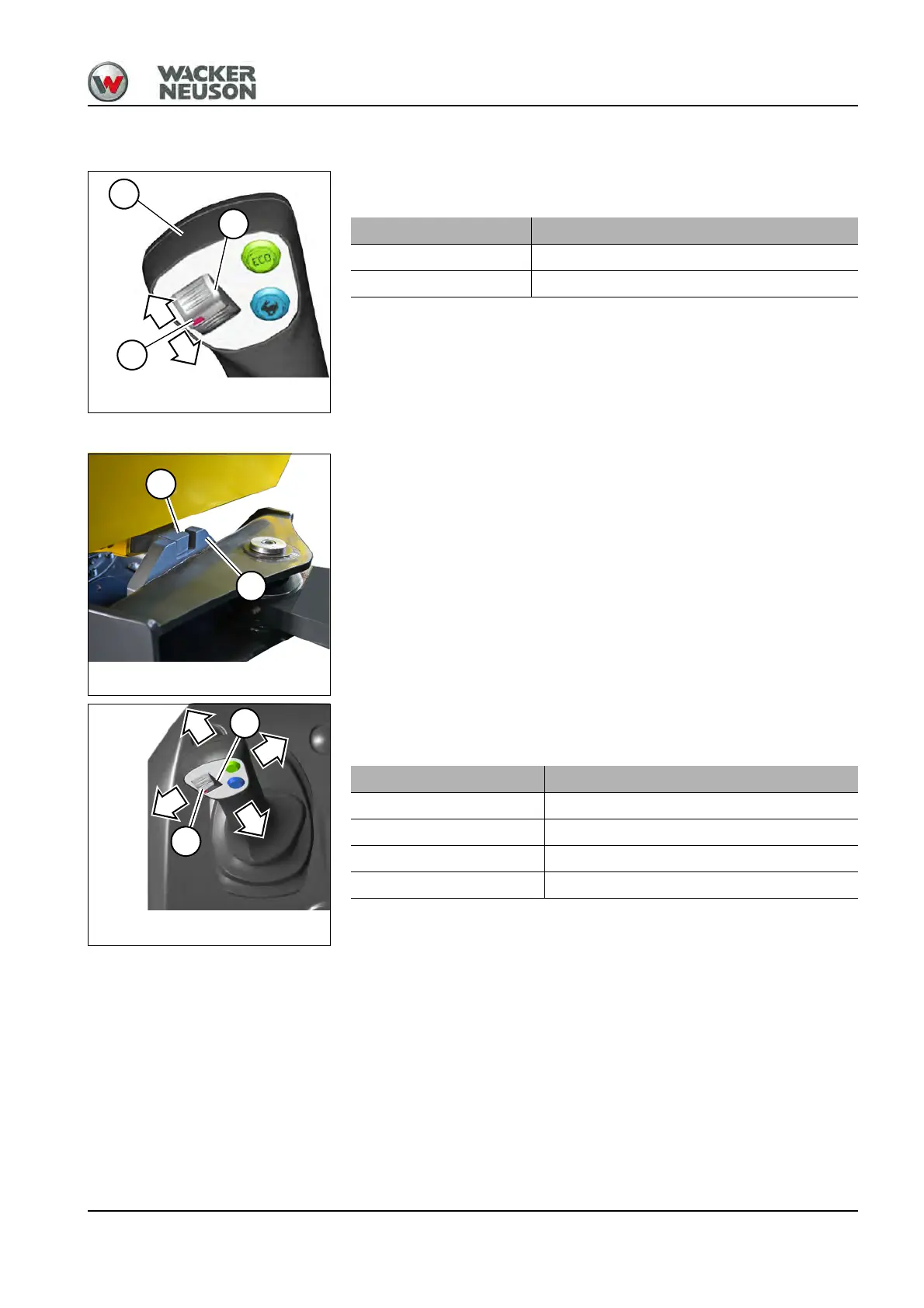

Fig. 143
Fig. 143
A
B
1
Function Operation
Tilt out the skip Press control lever A forward
Lower the skip Pull control lever A backward
Fig. 144
D
C
Fig. 145
B
1
Function Operation
Tilt out the skip Press control lever A forward
Lower the skip Pull control lever A backward
Skip is turned to the left Push control lever A to the left
Skip is turned to the right Push control lever A to the right
