BA D18 us* 1.1 * D18w700.fm 7-15
Maintenance 7

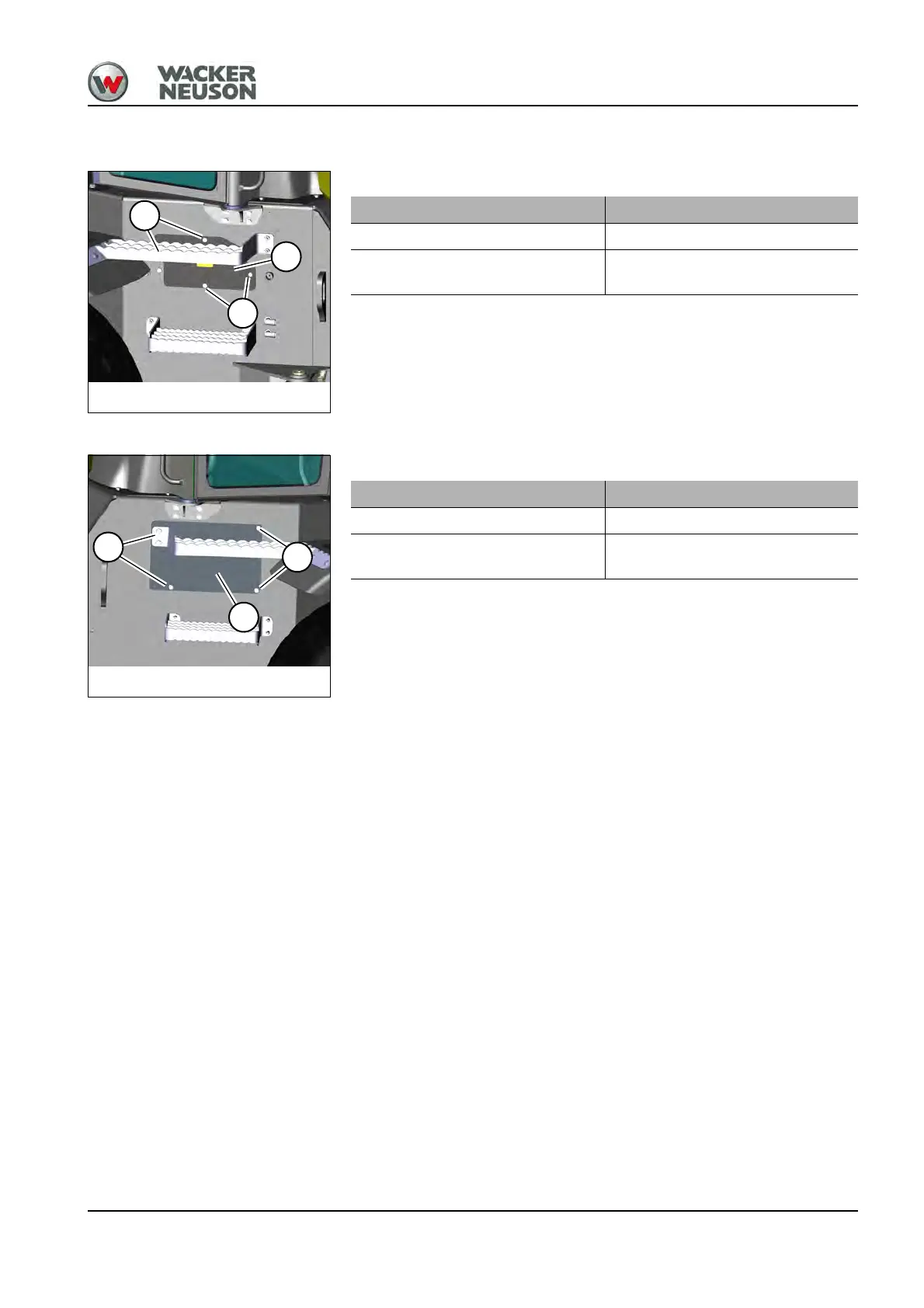

Fuse box
The fuse box is located at the front right of the chassis.
Description of fuses see chapter “ Fuse box” on page 9-6
Battery case
The battery case is located at the front left on the chassis.
Fig. 176
A
A
B
Function Operation
Opening the fuse box Remove screws A and cover B
Close the fuse box
Install cover B and
tighten screws A
Fig. 177
A
A
B
Function Operation
Open the battery case Remove screws A and cover B
Close the battery case
Install cover B and
tighten screws A
