Introduction 3
Meaning
Trailer coupling
Position
On the rear part of the machine on right.
Meaning
Tire pressure
Position
At the rear of the skip.
Meaning
Thermal stability of coolant.
Position
On the radiator in the engine compartment.
Meaning

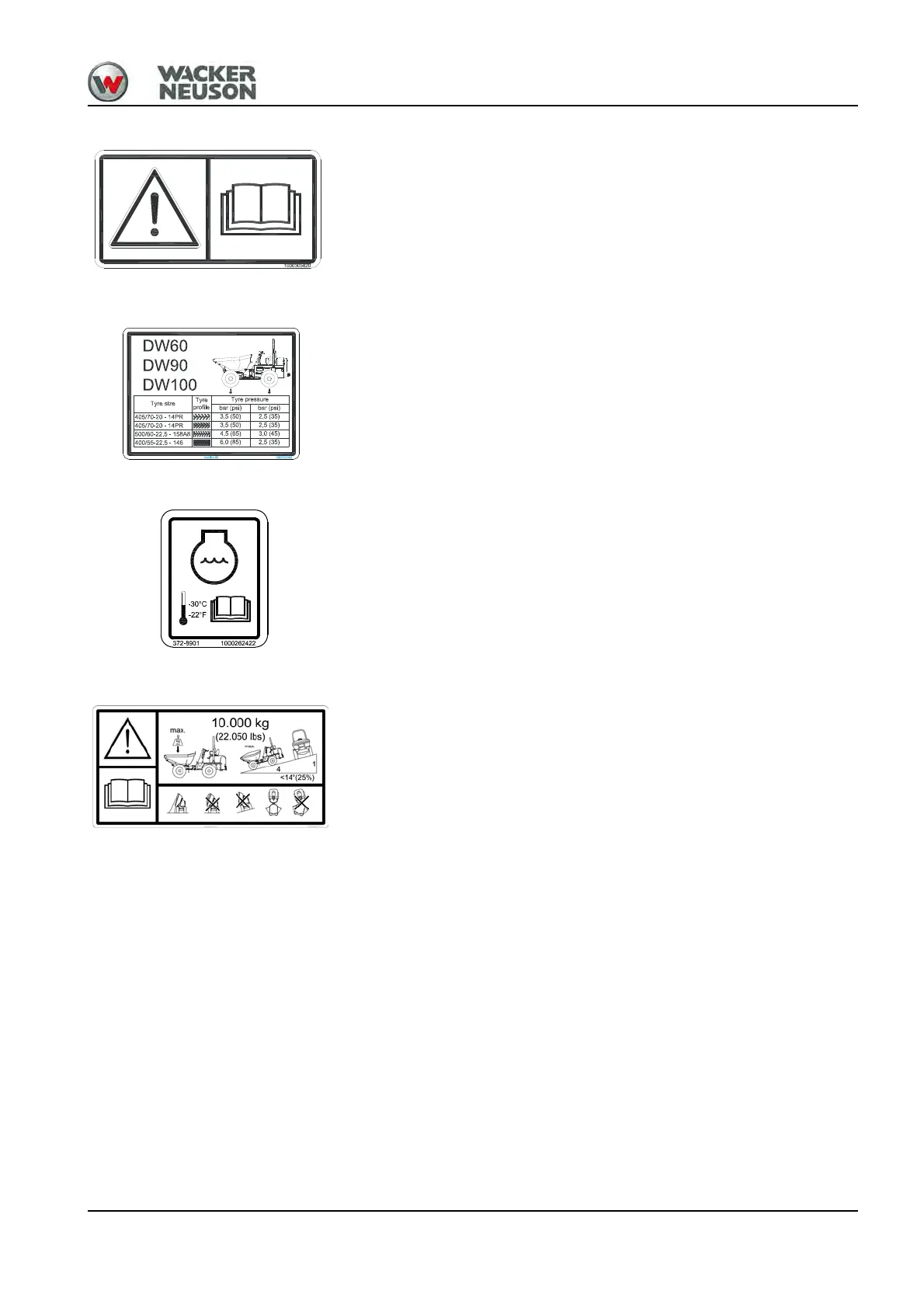

This label shows the following information/regulations:
• Maximum payload of machine.
• Tilt out the raised skip only on horizontal ground.
• Tilt out only in straight machine position.
• Maximum slope inclination allowed for tilting out downhill
• Maximum permissible angle of inclination during machine travel across
a slope.
• Do not tilt out the skip if material is stuck in the skip.
Position
At the rear of the skip.
Fig. 32
Fig. 33
Fig. 34
Fig. 35 Symbolic representation
