Putting into operation 4
Camera (option)
The camera display is protected with a transparent flap. Raise the flap to
operate the display.
1. ON/OFF switch
2. SEL
For selecting pages in the menu.
3. Menu
For activating the menu. The menu list is hidden after seven seconds if
no selection is made.
4. Buttons
For modifying a value.
5. Day/night sensor
Automatic brightness adjustment
Setting the display
The following settings can be made:
• Brightness
• Contrast
•Color
•Color
1. Press the Menu button.
2. Select the required setting with the buttons.
3. Press the SEL button.
4. Select the required setting with the buttons.
5. Confirm with the SEL button.
6. Press the menu button to exit the settings menu.
Setup menu – adjusting the camera
The camera is preset at the factory. For additional details contact a
Wacker Neuson service center.
Visual range
The camera has a vertical visual range of 66°.
The camera has a horizontal visual range of 88°.
Information
The camera’s field of vision is restricted if the skip is tilted.

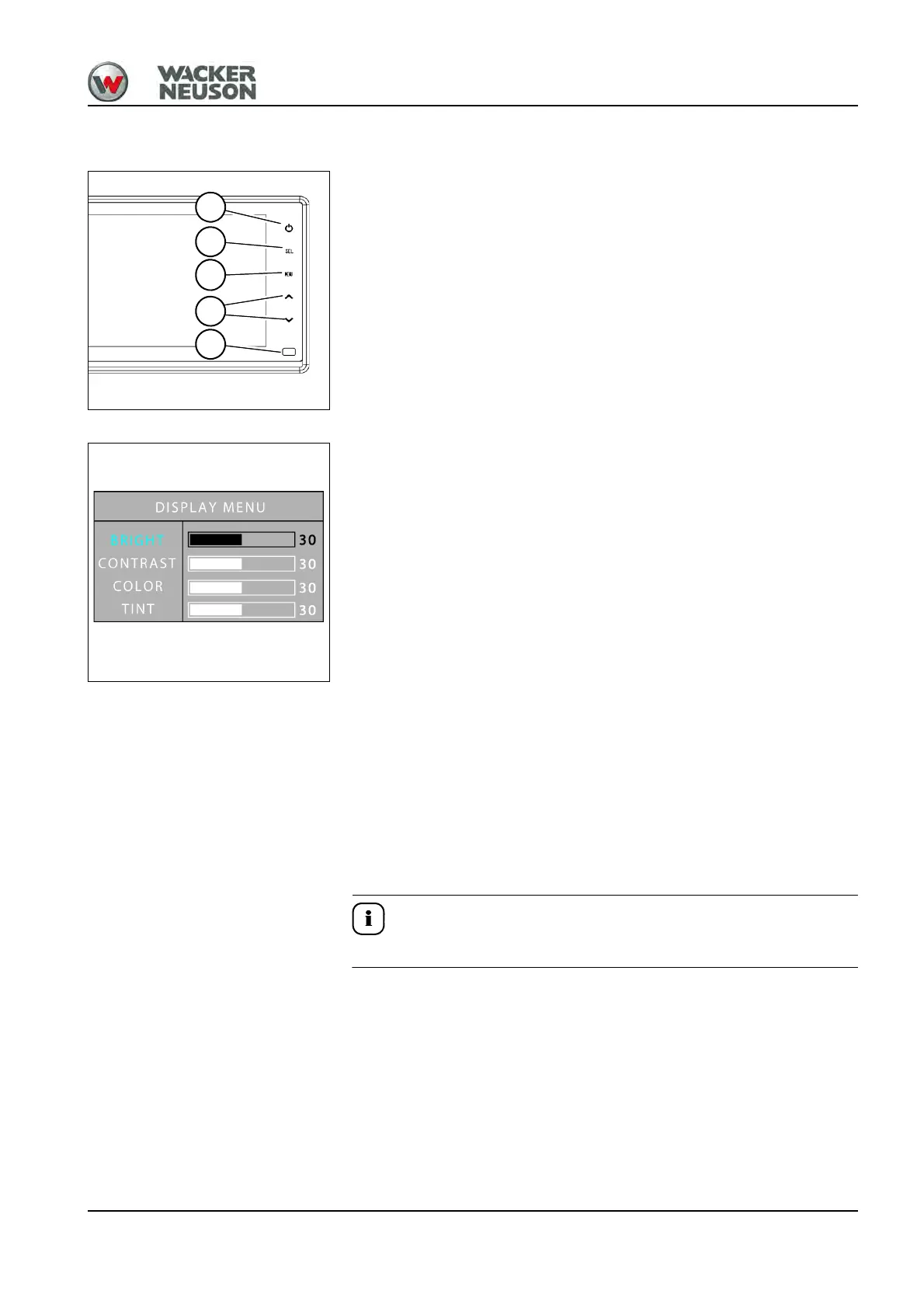

Fig. 69
2
3
1
5
4
Fig. 70
