Putting into operation 4
Protection (on left and right of rollbar).

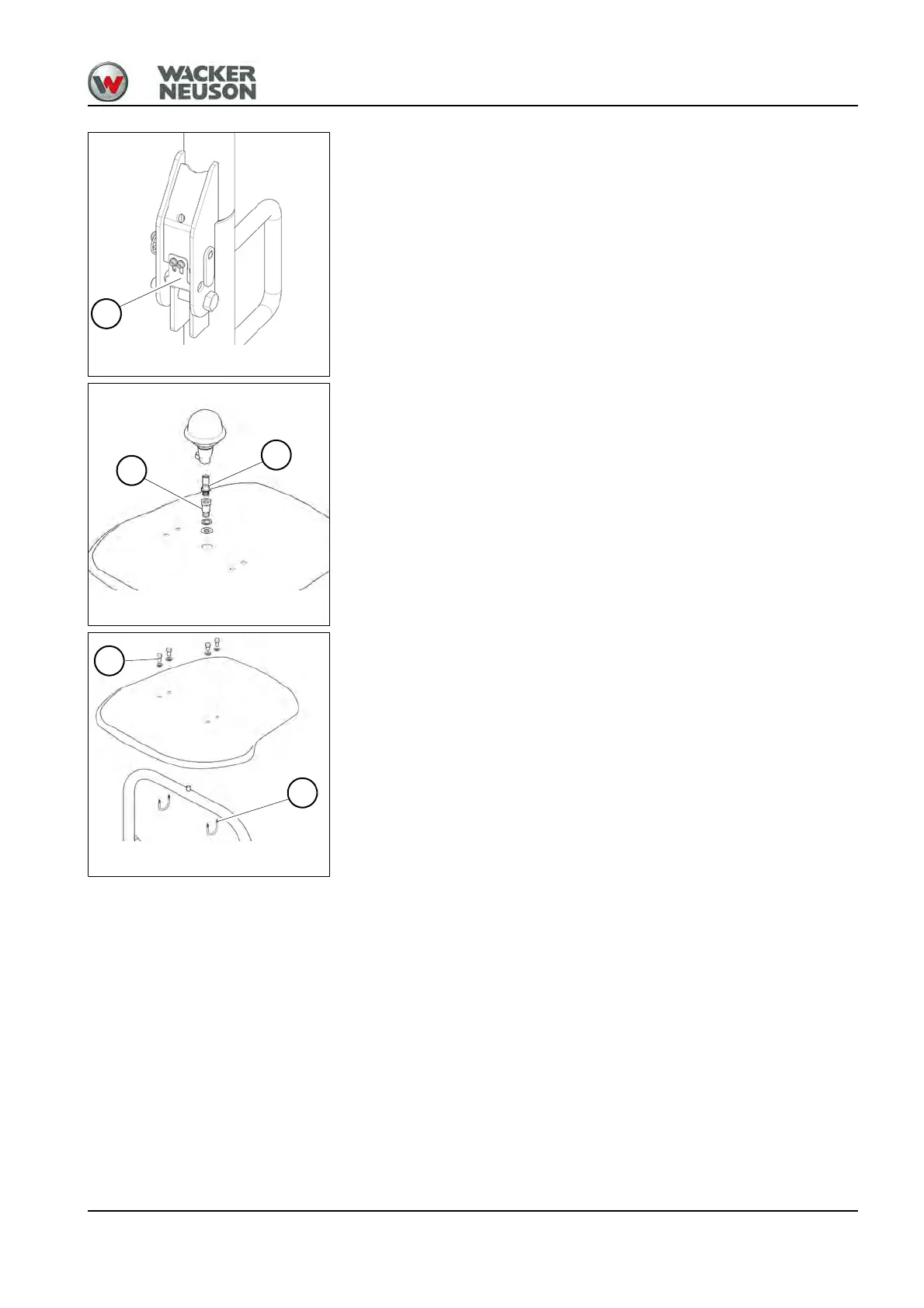

Assembly:
Install the sunshield with at least two qualified persons.
1. Remove the rotating beacon.
2. Route the cable for the rotating beacon through the opening in the roof.
3. Insert the assembly brackets D through the openings in the roof and
tighten screws E to 87 Nm (64 ft.lbs).
4. Insert extensions C through the openings in the roof and tighten them
to 130 Nm (96 ft.lbs) on the rollbar.
5. Tighten bracket F on extension C.
6. Install the rotating beacon.
Fig. 76
B
Fig. 77
C
F
Fig. 78
E
D
