Operation 5
NOTICE
Machine damage due to a vehicle tipping over if the weight in the load
diagram is exceeded.
► Do not exceed the weights indicated in the load diagrams.

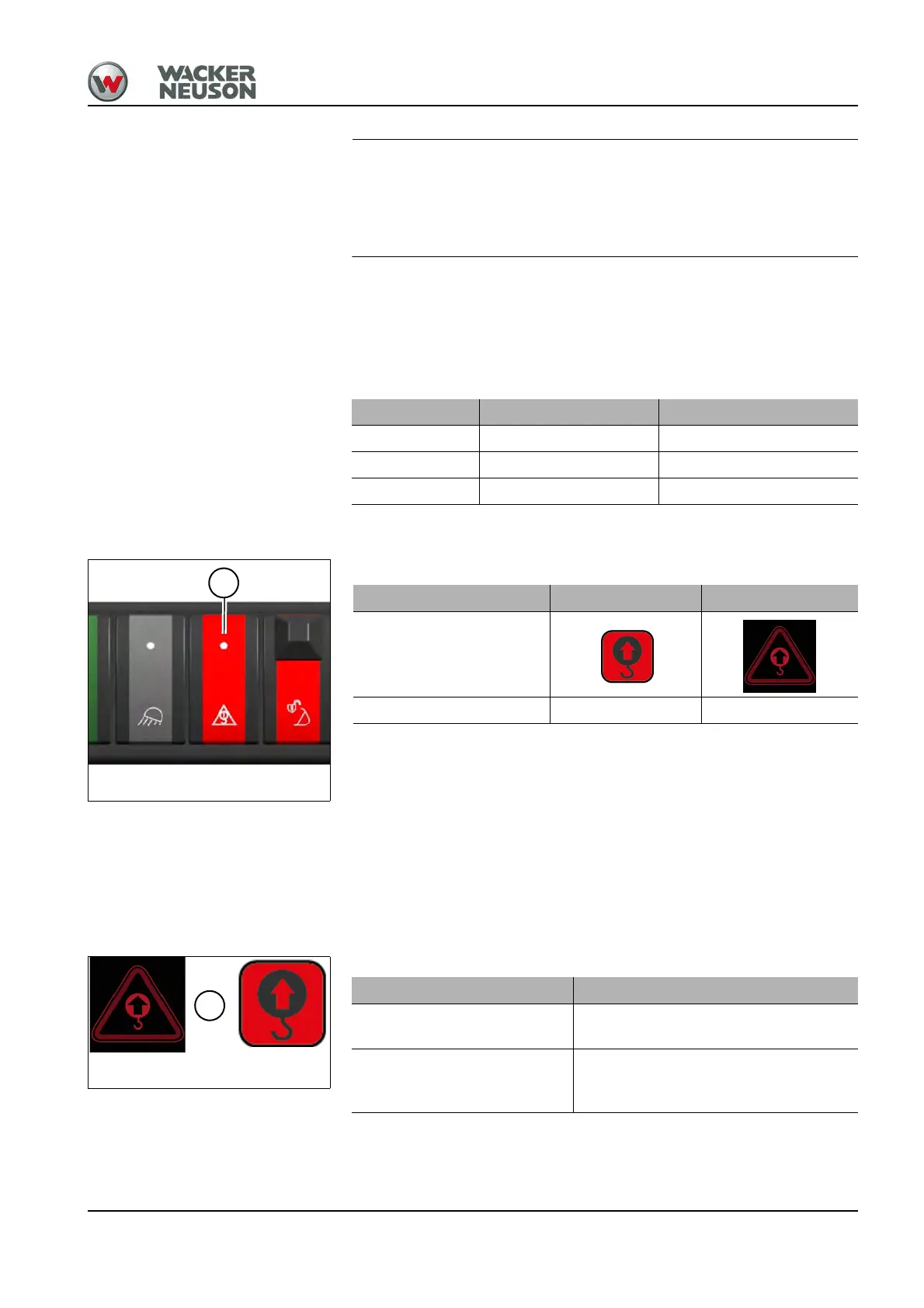

Safe load indicator
The safe load indicator alerts the operator visually and acoustically if the
load on the boom is too high.
There are two versions:
• Overload warning device basic (option) / advanced (option)
The switch for activating and deactivating the safe load indicator is located
on the switch panel on the left.
Functional check of safe load indicator
Always perform a functional check of the safe load indicator before
performing lifting gear applications.
1. Start the vehicle.
2. Perform vehicle travel on open terrain.
3. Secure the danger zone.
4. Stop the vehicle.
5. Switch on the safe load indicator.
6. Raise the boom as far as it will go and hold the control lever in this
position.
Position basic advanced
Boom Hose burst valve Hose burst valve
Shovel arm Hose burst valve Hose burst valve
Stabilizer blade -- Hose burst valve
Fig. 173
A
Safe load indicator Display tier III Display tier IV
On
Off No symbol No symbol
Fig. 174
A
Warning devices Result
The buzzer sounds and sym-
bol A is displayed
The vehicle may be used for lifting gear
applications.
Buzzer does not sound or
symbol A is not displayed
The vehicle may not be used for lifting
gear applications. Contact a
Wacker Neuson service center.
