BA E16 en* 1.0 * E16_10_510.fm 5-49
Operation 5

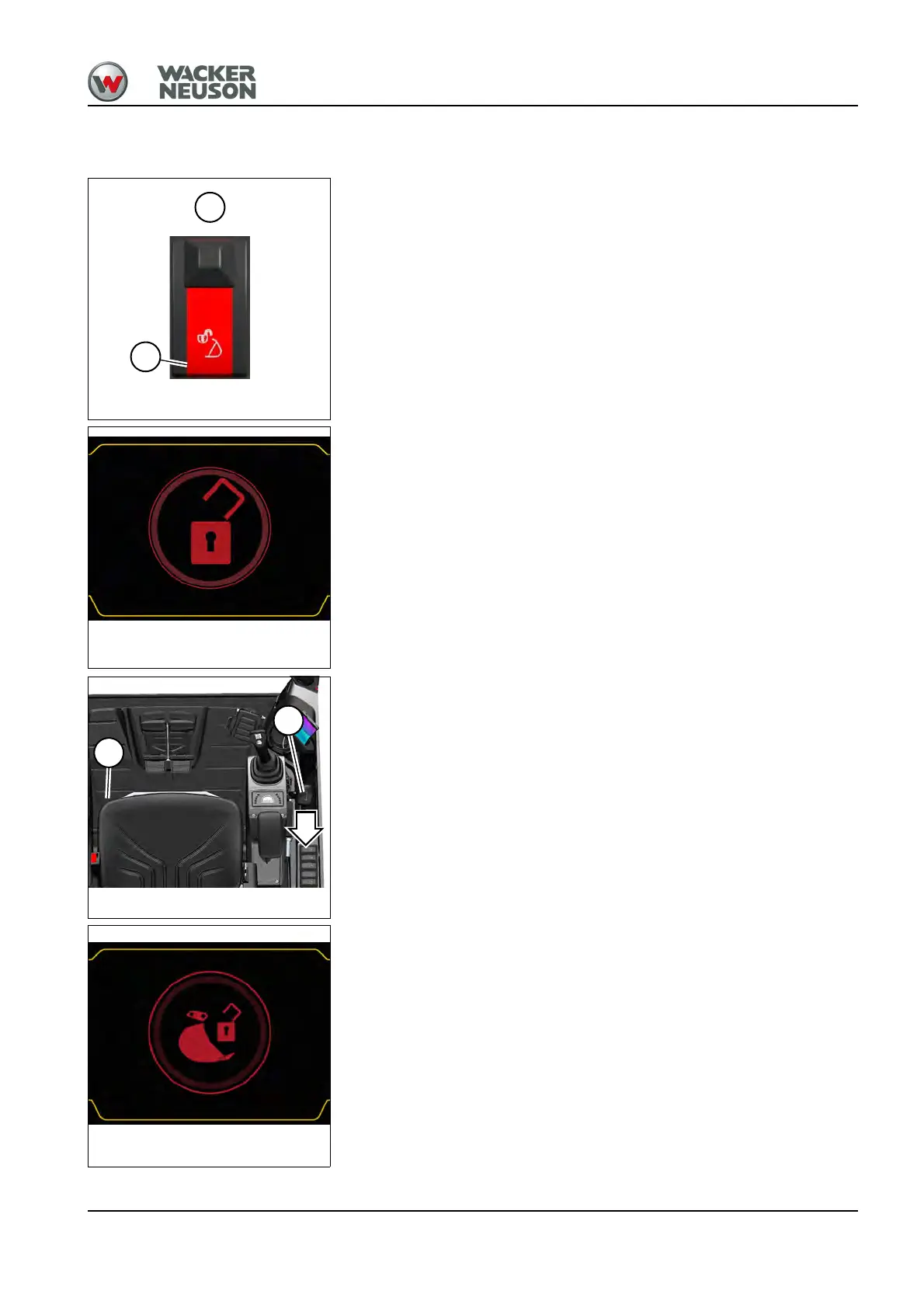

Setting down an attachment
1. Move the attachment inward completely and position it at 5–10 cm (2–
4 in) above the ground.
2. Unlock switch D and press it to position 1.
The quickhitch is enabled and the buzzer sounds.
Tier IV: The symbol Hydraulic quickhitch enabled appears and the
buzzer sounds.
3. Press and hold the foot-operated touch button E and at the same time
pull back the J dozer blade lever.
The quickhitch opens.
Tier IV: The symbol quickhitch open appears.
Fig. 204
D
1
Fig. 205
Fig. 206
E
Y
Fig. 207
