Introduction 3
Superstructure Versions
ET: conventional superstructure
EZ: Zero tail revolving superstructure; the upper carriage does not project
over the width of the vehicle without an additional weight when rotating.

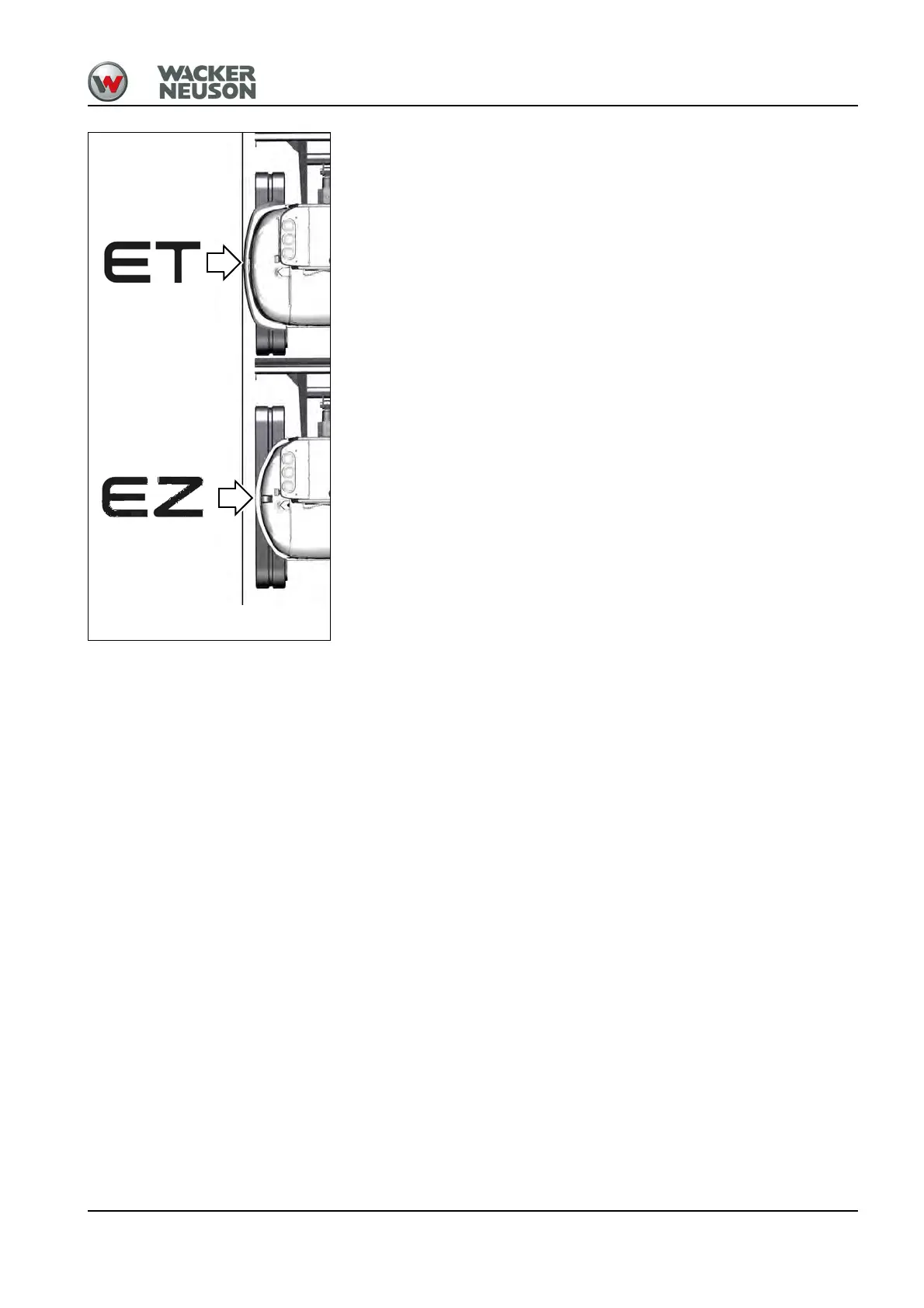

Fig. 3 (symbolic representation)
