Putting into operation 4
Error symbols tier IV

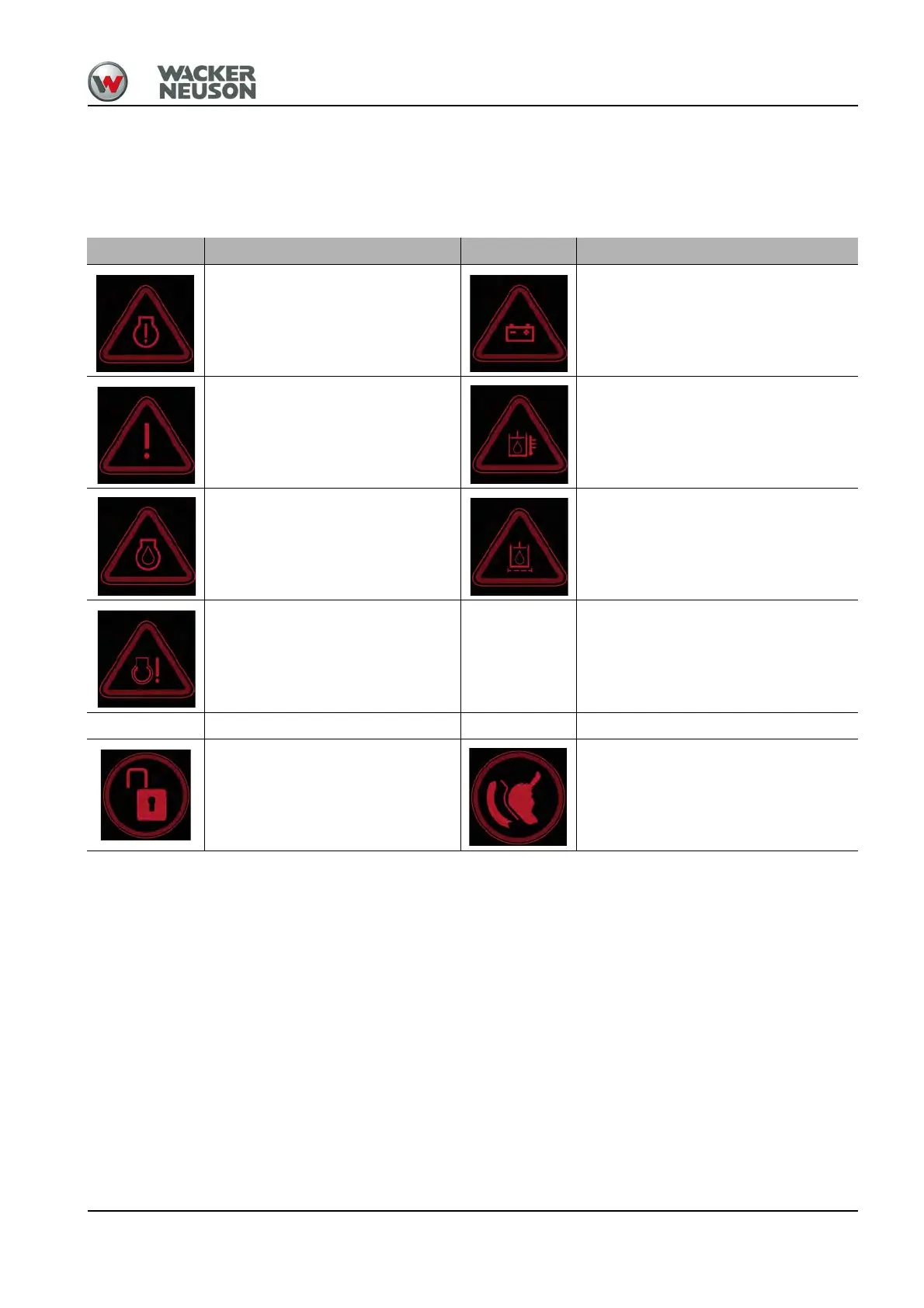

If an error occurs, the following symbols are displayed for a few seconds
in the multi-functional display.
Error symbols are listed according to priority.
– see chapter “8.2 Malfunctions (display element/multi-functional display)”
on page 8-2
Symbol Designation Symbol Designation
01 Engine stop
(short indication)
05 Charge indicator light
(short indication)
02 General malfunction
(short indication)
06 Hydraulic oil temperature
(permanent indication)
03 Engine oil pressure
(short indication)
07 Hydraulic oil filter
(short indication, appears again
upon starting the engine)
04 Engine malfunction
(short indication)
-- --
Hydraulic functions active
Hydraulic functions locked
