Wacker Neuson EHB 11 BLM - Tool Holder Wear Inspection

EHB 11 Maintenance
39
Checking the tool holder for wear

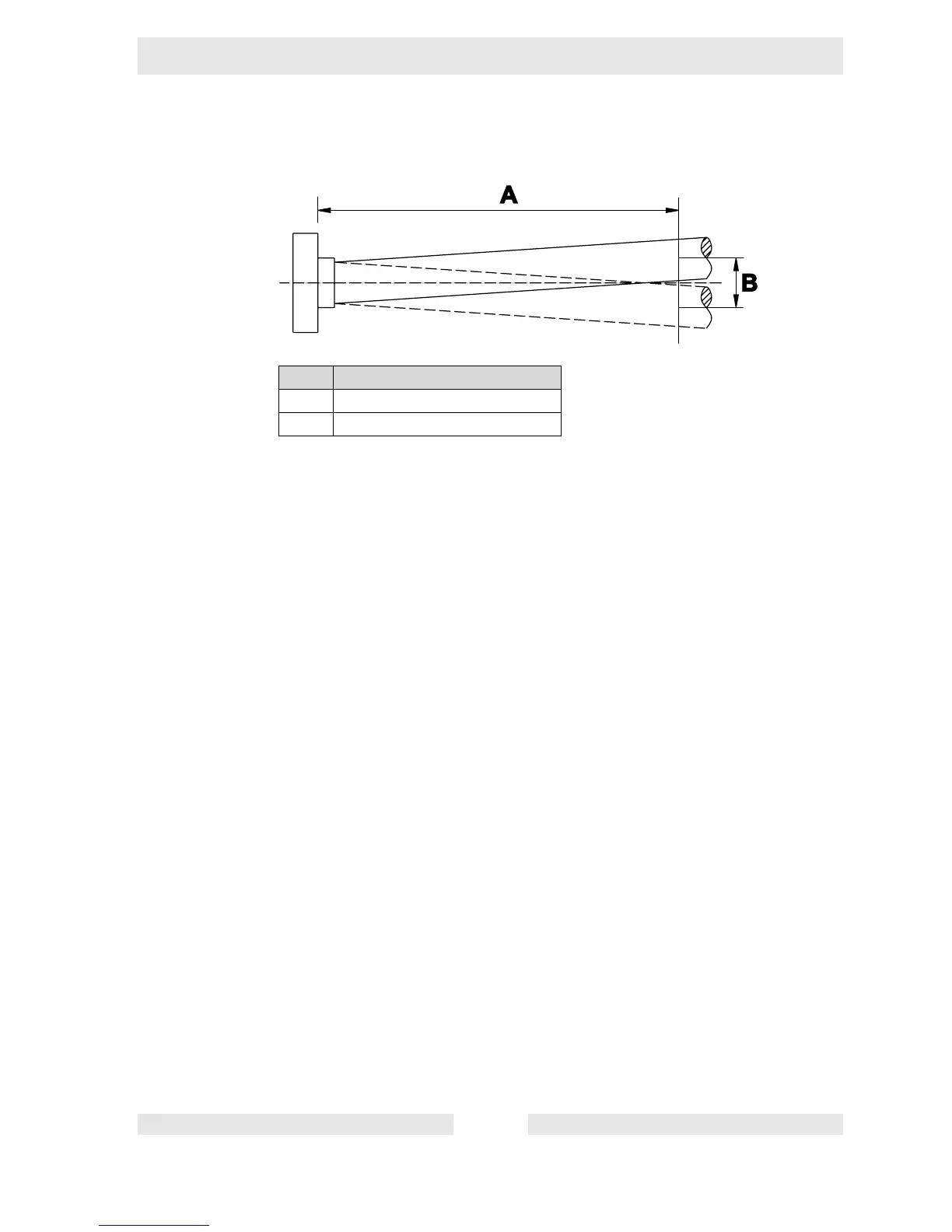

f Measure the tool play 200 mm from insertion point.
Play may not exceed 6 mm.
If the play exceeds 6 mm, the tool holder bushing in the tool holder must be re-
placed.
Item Value
A200 mm
B Max. 6 mm
