9 Technical data

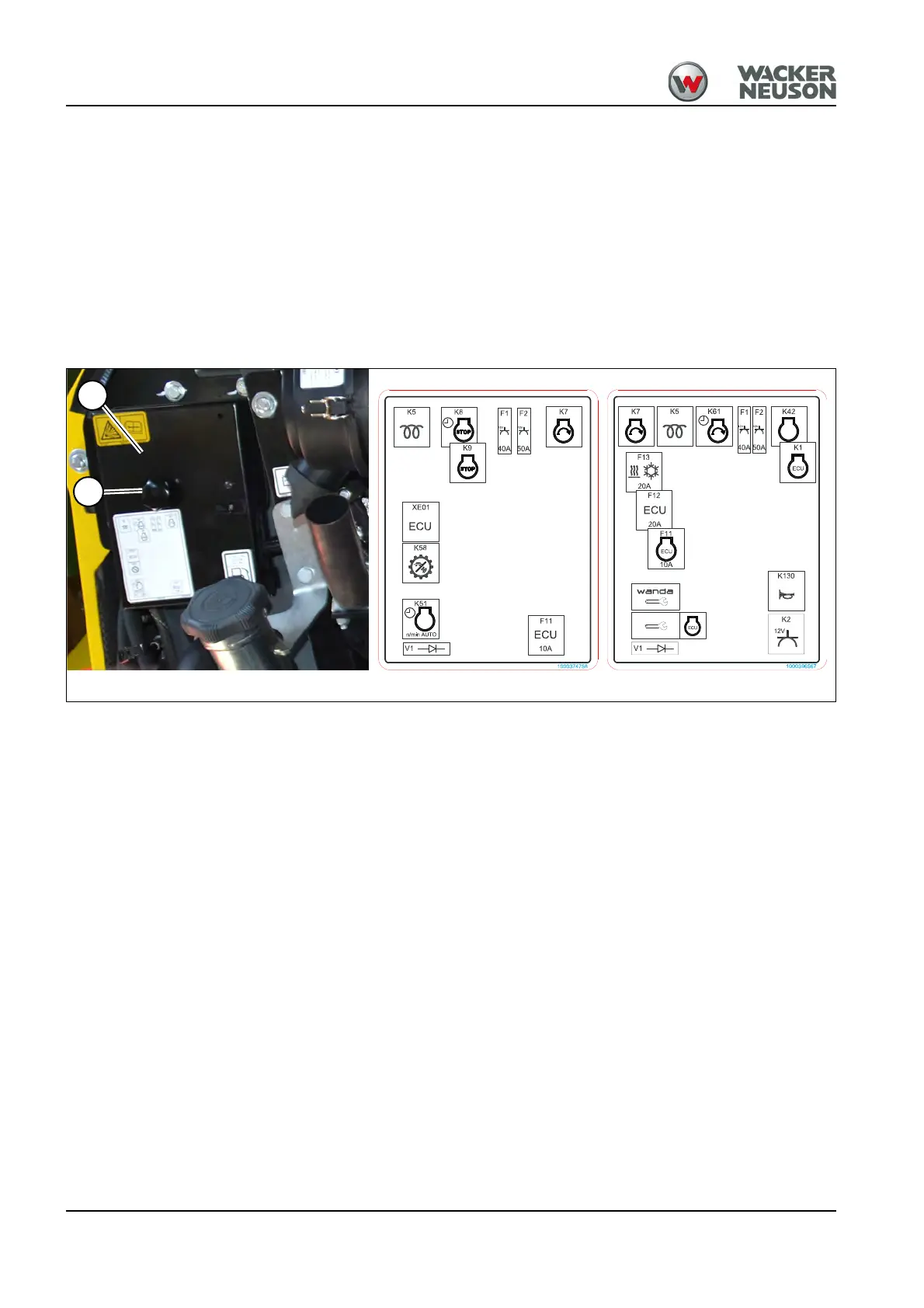

Main fuse box
The main fuse box A is located on the left in the engine compartment.
1. Opening:
1. Stop and park the vehicle. Stop the engine.
– see chapter “ Parking the machine” on page 5-12.
2. Open the engine cover.
3. Loosen screw B and remove the cover.
Closing:
1. Install the cover and tighten screw B.
B
A
Fig. 305
Assignment of tier III Assignment of tier IV
