Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 76
Continued from the previous page.
8. Support the rear of the machine with an appropriate crane.

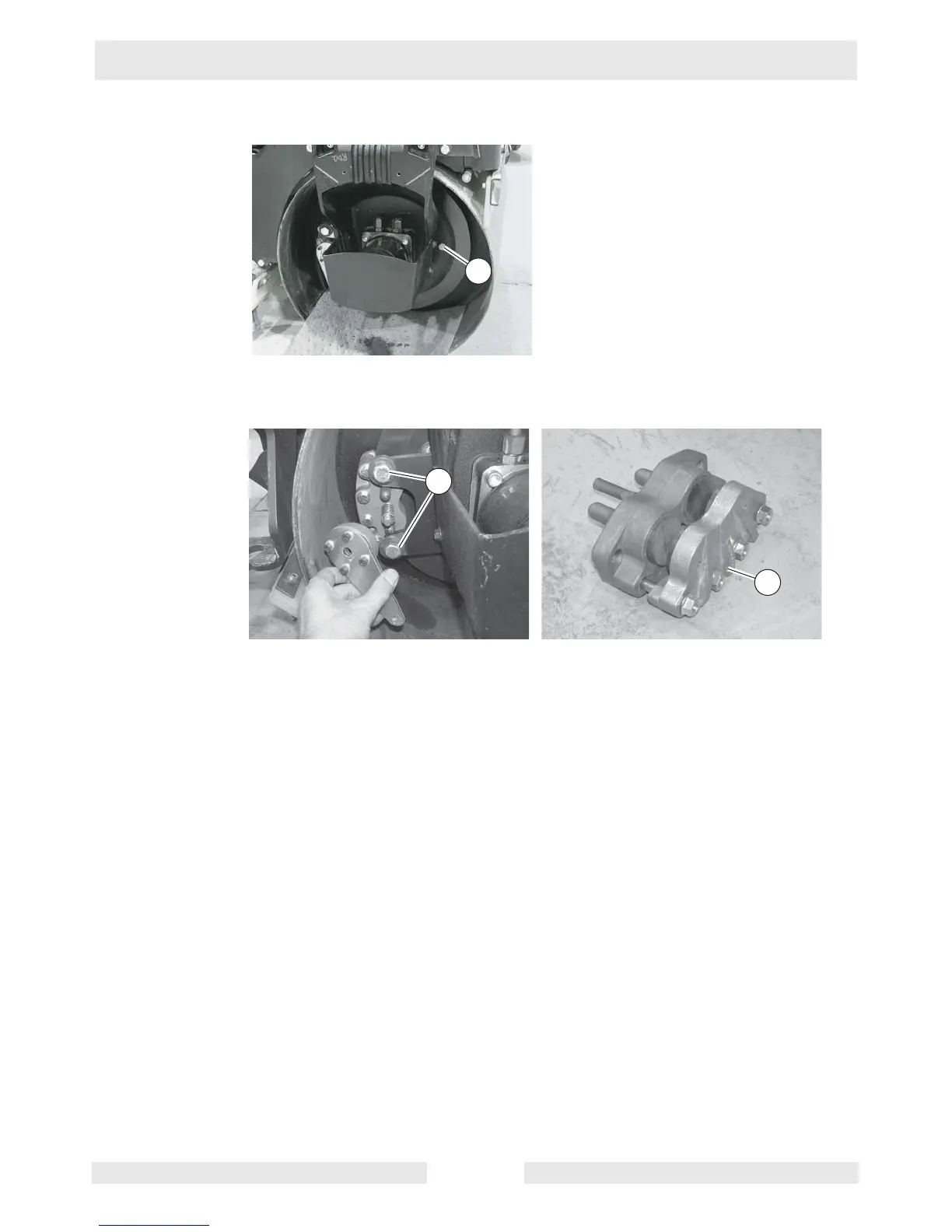

9. Remove the screws (i) that secure the drive plate to the shock mounts.
10.Remove the screws (h) that secure the brake caliper to the drive plate.
11.Raise the machine (rear drum should remain on the ground) enough to remove the
brake caliper (j).
The procedure to remove the brake and brake cable is now complete.
wc_gr004224
i
wc_gr004212
h
j
