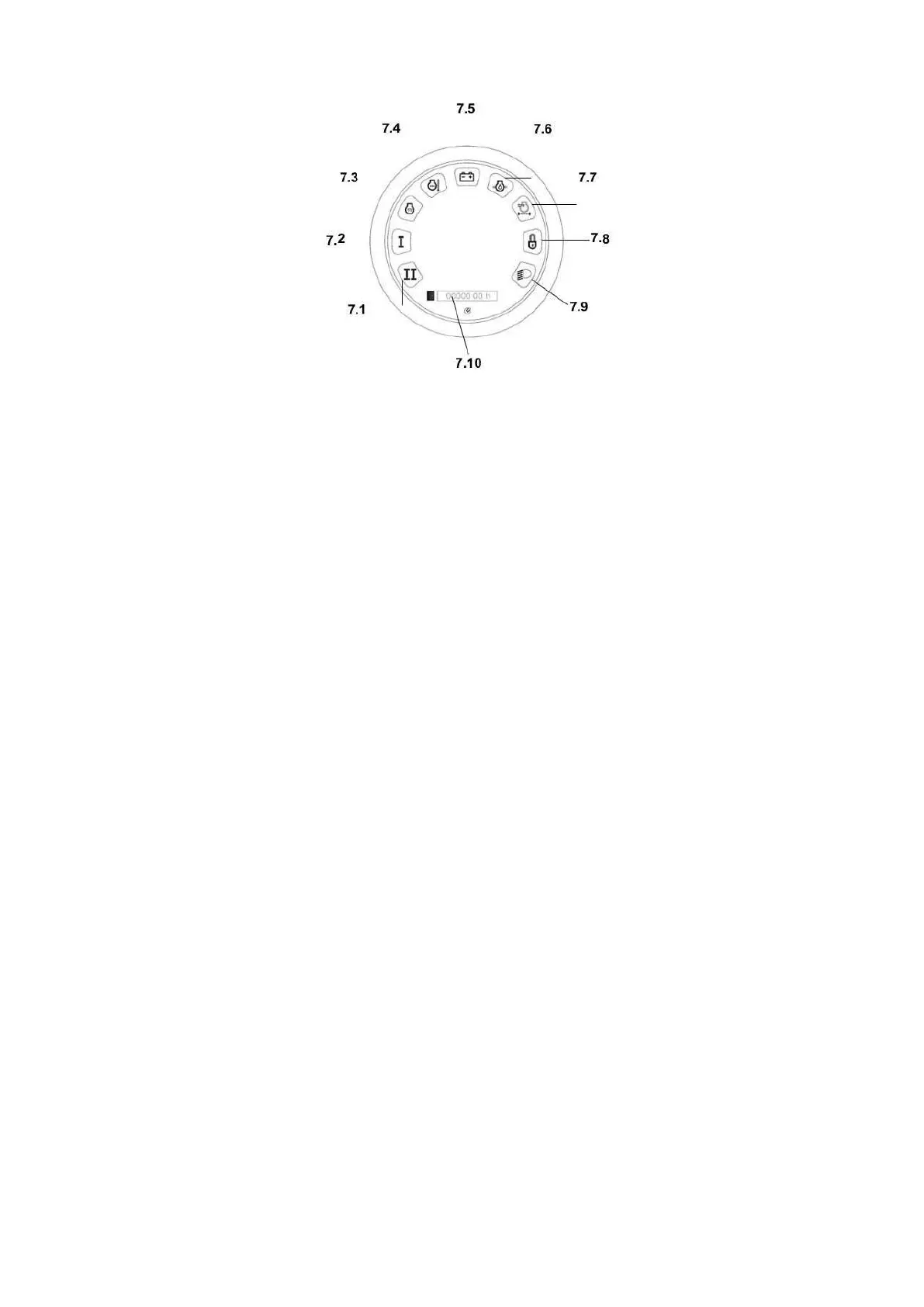

1. – POWER TAKEOFFINSERTIONWARNINGLIGHT(PTO)
2. – POWER TAKEOFFINSERTIONWARNINGLIGHT(PTO)
3. – GLOW PLUGSPRE-HEATINGINDICATOR
The warning light switches on after clockwise rotation of the key in the ignition block. The
machine must always be started-up after the warning light switches off.
4. – ENGINECOOLINGLIQUIDTEMPERATURE WARNINGLIGHT
The warning light signals anomalous functioning of the diesel engine cooling plant.
5. – GENERATORCHARGEINDICATOR
-
OFF in normal operating position (goes off immediately after starting)
-
When ON it signals malfunctioning in the battery recharging system.
6. – ENGINEOILPRESSUREINDICATOR
When this indicator comeson, it signals malfunctioning in the diesel engine lubrication system
-
insufficient pressure or lack of oil. Immediately stop and identify the cause.
7. – AIR FILTER CLOGGED INDICATOR
When the indicator is on, it signals inefficiency of the suction system - filter cartridge
clogged.
8. – HYDRAULIC SERVO-CONTROL BLOCK WARNING LIGHT SWITCHED ON:
Hydraulic commands deactivated (safety bar raised). SWITCHED OFF:
Hydraulic commands activated (safety bar lowered).
9.– HEADLAMP INSERTION WARNING LIGHT
7.10– HOUR COUNTER
Signals the progressive working time. Functions with the engine running.
8 – 12V UNIPOLAR OUTLET
Allows low-tension fitting usage.
9 – EMERGENCY LIGHT SWITCH
Controls the simultaneous functioning of the four direction indicators.
Insert the switch every time a potential danger exists and in EMERGENCY situations.
Page 18 of 61
Item – Rev(s): 8009641121– 101
