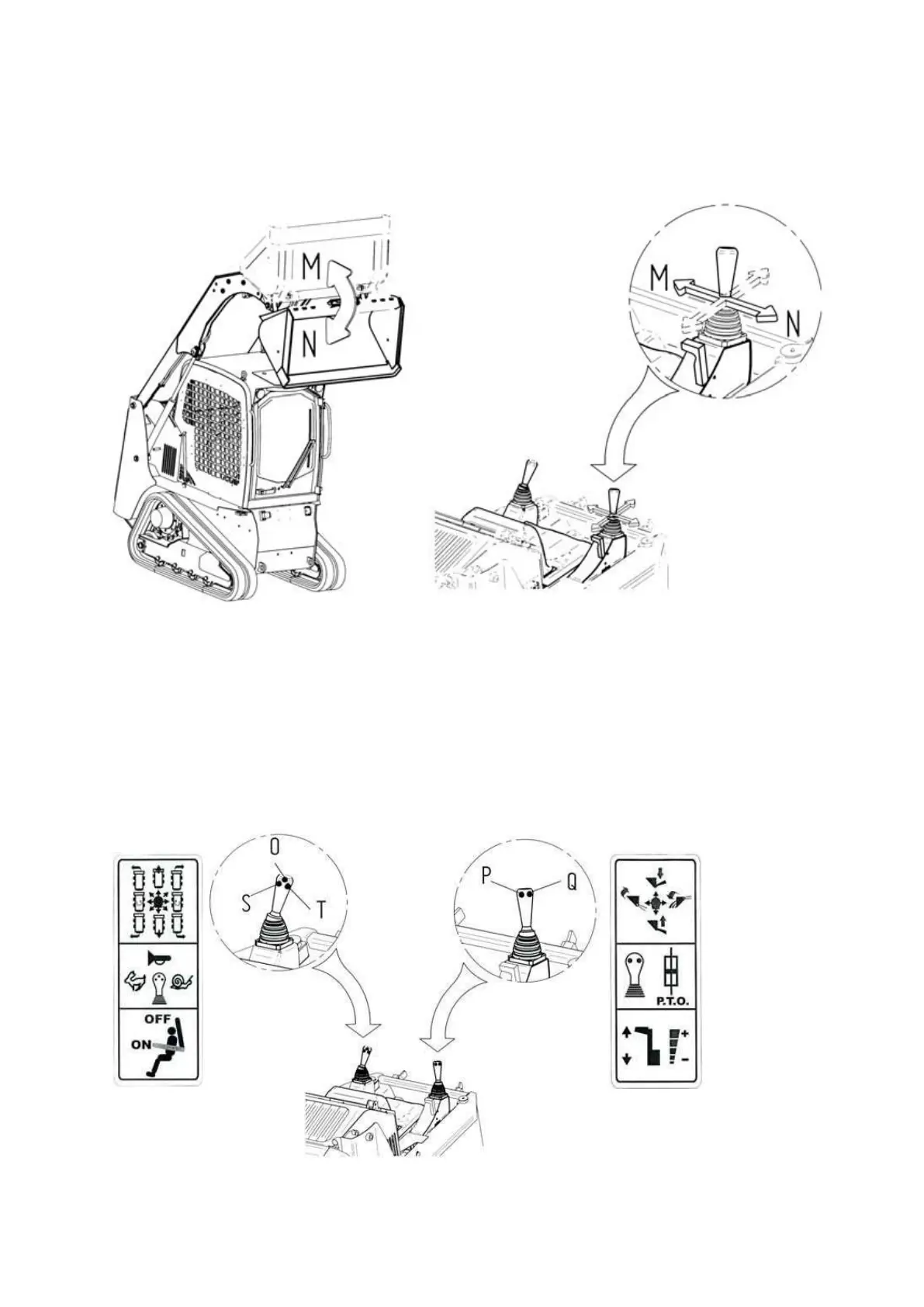

SHOVEL CONTROL
PositionM: SHOVEL CLOSURE
PositionN:SHOVEL OPENING
COMMANDS ON RIGHTAND LEFT JOY-STICK GRIP
O: HORN control button
S: Insert fast speed button
T: Insert slow speed button
P,Q: Power take off P.T.O. control button
Page 24 of 61
Item – Rev(s): 8009641121– 101
