USE OF THE MACHINE
FILLINGANDEMPTYING OF THE SHOVEL
FILLING

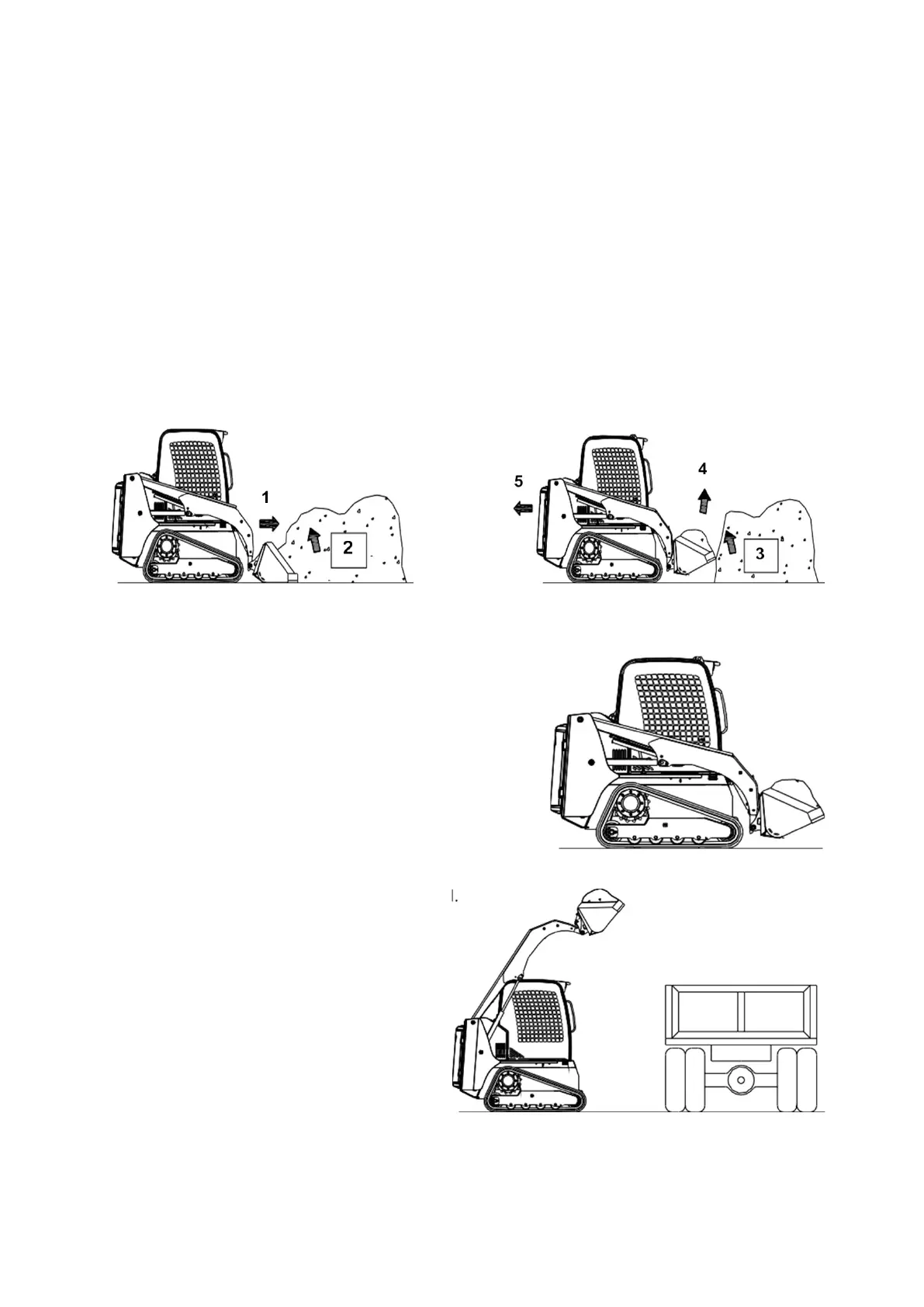

To fill the shovel follow the warnings below:
1 - Lower the lifting arms completely.
2 - Turn the shovel until it touches the ground slightly with the point slightly inclined forwards
3- Advance slowly penetrating the stock pile and at the same time turn the shovel backwards until
it is completely filled.
4 - Raise the lifting arms to just above the stock pile.
5 - Pull back, lower the lifting arms and move, with the shovel low, towards the place of unloading.
EMPTYING
During transfer to the unloading area the shovelmust be
positioned as low as possible and in maximum collection
position.
Transfer must be carried out at a moderate speed.
Move as near as possible to the vehicle to
be loaded keeping in mind that the
shovel’strajectory lengthens during lifting
.
During the arm lifting phase, incline the shovel slightly forward and try to hold it as horizontal as
possible to prevent loss of the load (machine without lifting control valve, self-levelling).
