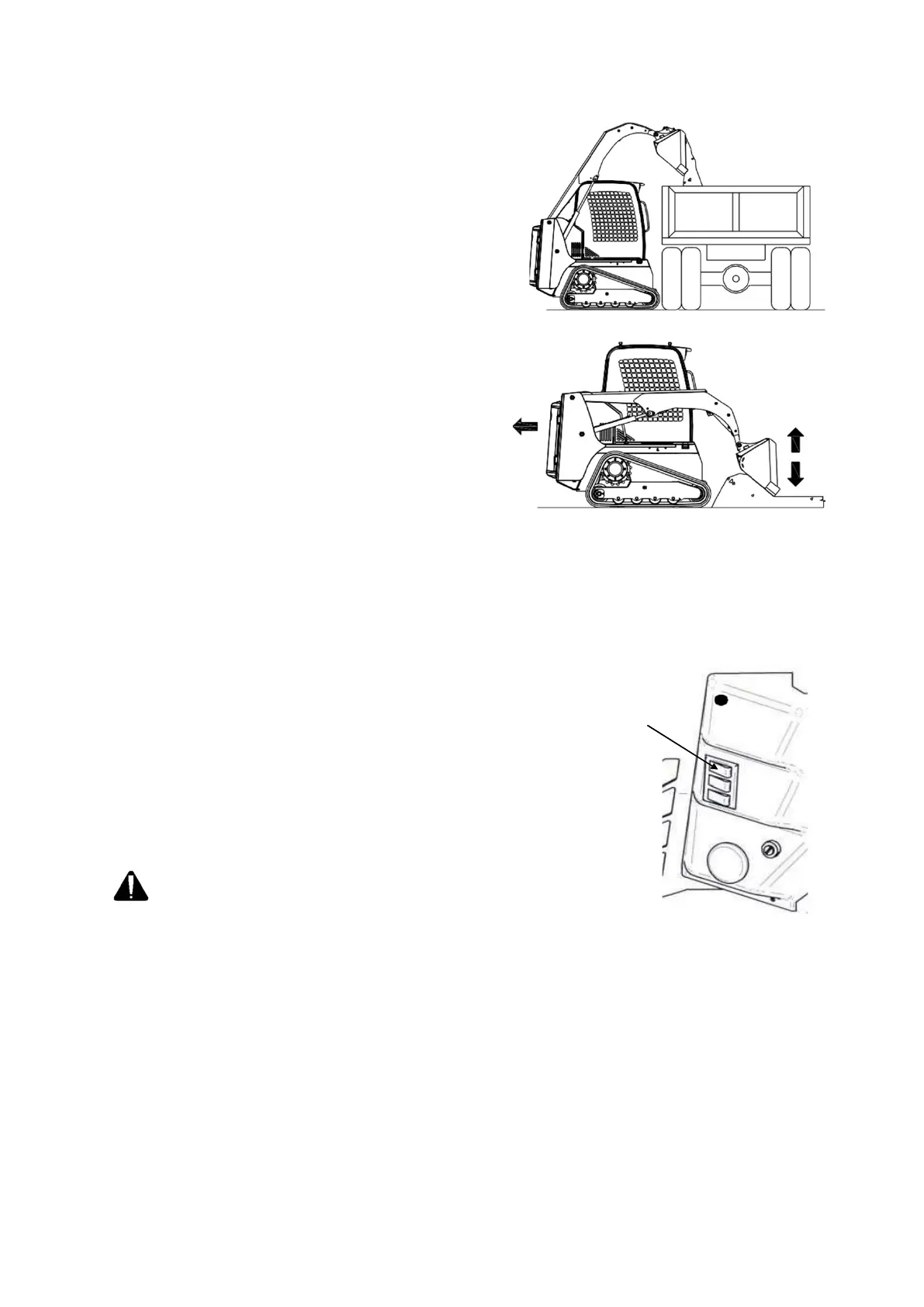

With the shovel in high position, move near to the
vehicle to be loaded and turn the shovel forwards to
carry out complete unloading. Ifthe shovel should not
empty completely, open and close the shovel
alternately to help the material to escape
.
LEVELLINGTHEGROUND
The machine is equipped with a floating valve,which
renders the lifting arms “idle”. This function is very
important for levelling the groundas the arms and the
bucket always follow the course of the ground and,
with repeated operations, it is possible flatten and level
material of the desired thickness parallel to the
ground.
Raise the lifting arms inclining the shovel forward until obtaining an angle of 45° between the base
of the shovel and the ground. The end of the shovel must be positioned above or in front of the
accumulation to be flattened, at the desired height.
Press the switch (ref. 5) positioned on the right
dashboard to activate the arms fluctuation valve.
This switch MUST only be used with the ARMS ON THE
GROUND. Activation with the arms raised consents to the
immediate fall of the entire arm-bucket unit, with very
serious risks.
5
Page 26 of 61
Item – Rev(s): 8009641121– 101
