SUPPLYING, VERIFICATIONS, DIESEL MOTOR COOLING SYSTEM CONTROLS:
-
The radiator is situated in the rear part of the machine, above the diesel engine.
-
For capacity and filling refer to the RE-FUELLING TABLES
-
A special warning light (Fig.1 - ref. 7), on the left dashboard, signals the inefficiency of the
diesel engine cooling circuit. Checking and top-up of the level of liquid must be carried when
the engine is cold. If the cap of the expansion tank “A” of the cooling liquid positioned at
the side of the radiator is still hot use a protective glove or rags soaked in cold water.
-
Never place the face over the cap when opening.
DANGER OF BURNS
DANGEROFSCALDING

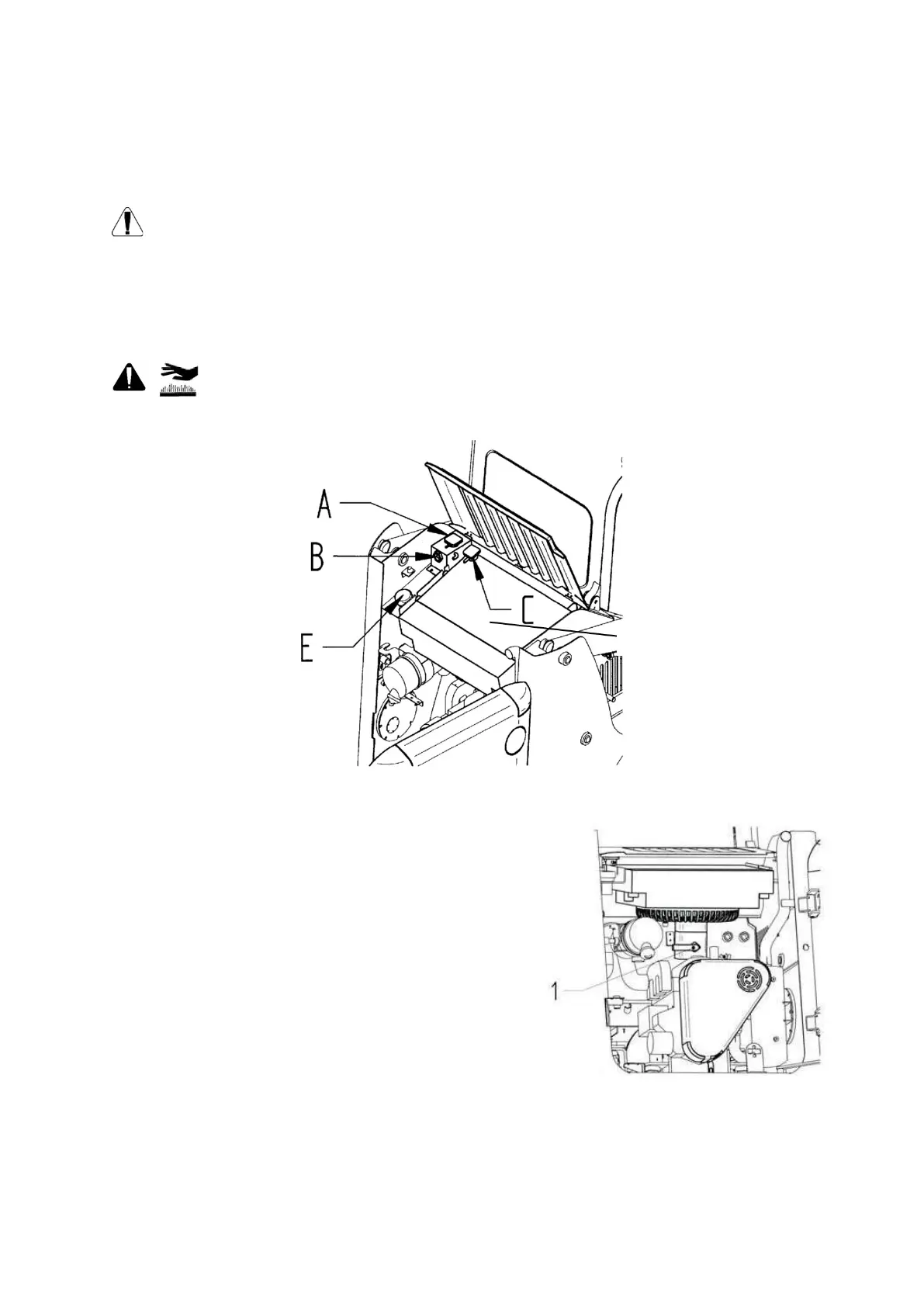

The engine cooling liquid is maintained at a service
temperature using a fan positioned beneath the radiator
and is activated by a hydraulic engine.
If it doesn’t function or functioning is anomalous check
the pressure of engine connection “1” of the fan.
The pressure detected must be 100 bar.
If thisisnot detected, contactCUSTOMERSERVICE
RADIATOR
Page 41 of 61
Item – Rev(s): 8009641121– 101
