HYDRAULIC SYSTEM

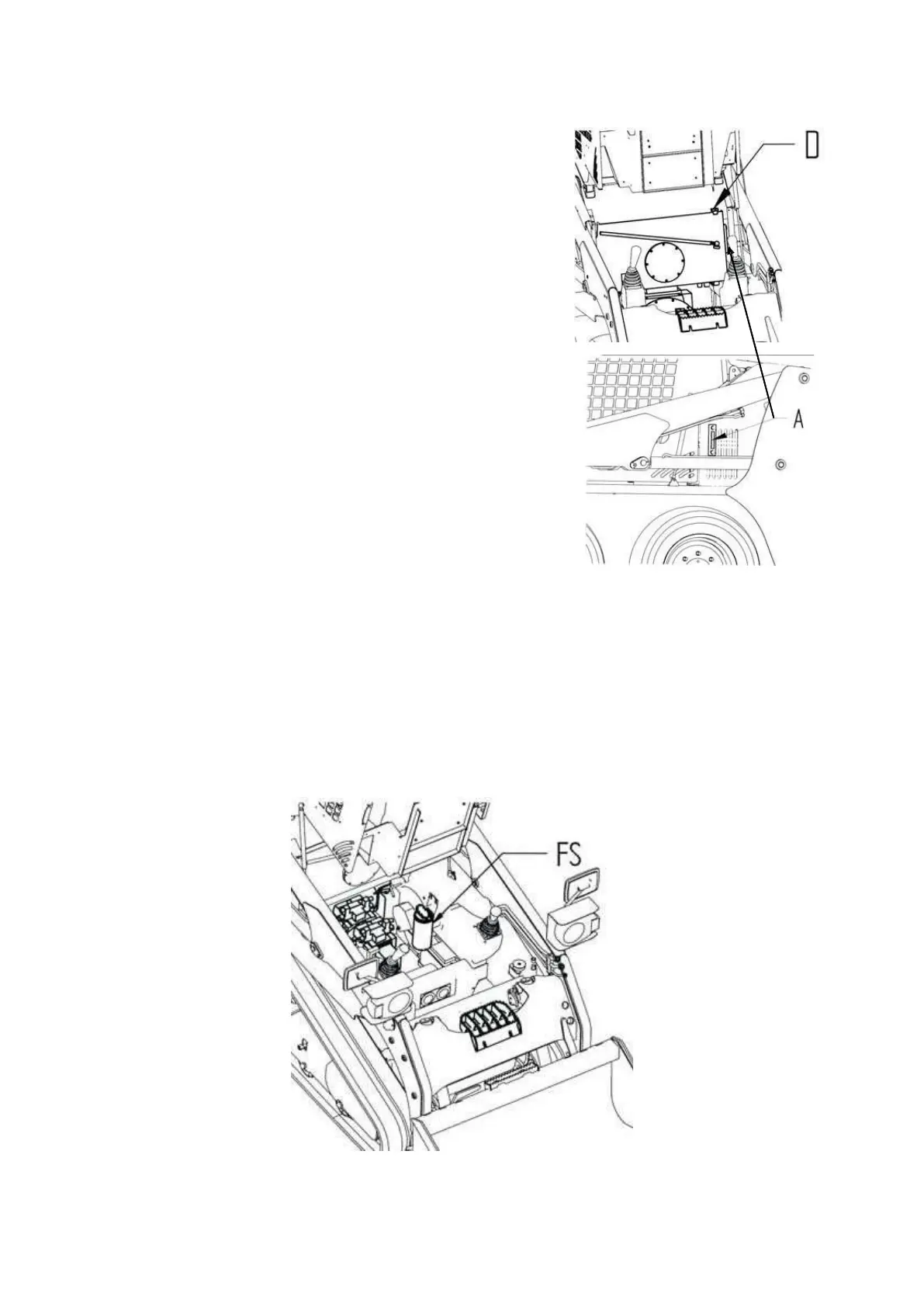

The oil tank is situated in the rear central part of the machine,
with the filling cap “D” positioned in the rear left side and
accessible with the cabin raised. The visual level indicator “A”
is situated on the tank’s left lateral wall. This is used to control
the level of liquid container. For the capacity and fillingup
follow the chapter “REFILLING”.
-
The oil level is checked with the machine stand- ing level
and with the cylinder rods at their maxi-mum extension.
In these conditions the oil level should not be below the
minimum mark.
-
The engine must be off.
-
The oil must be at operating temperature (around60ºC).
-
For top-ups unscrew the cap and use a funnel inorder to
introduce the oil, and this should be carried out very
slowly.
-
The capacity of the tank alone at max. level is 30 litres.
EXAUST FILTER REPLACING:
-
Positioned on the right internal side of the frame and accessible with the cabin raised.
-
Replace the filter cartridge “FS” with another cartridge having the same features. The filter must be
replaced for the first time after 100 hours of working. For successive replacements refer to the
MAINTENANCETABLE.
