7– CHECK AND CONTROL INSTRUMENTS

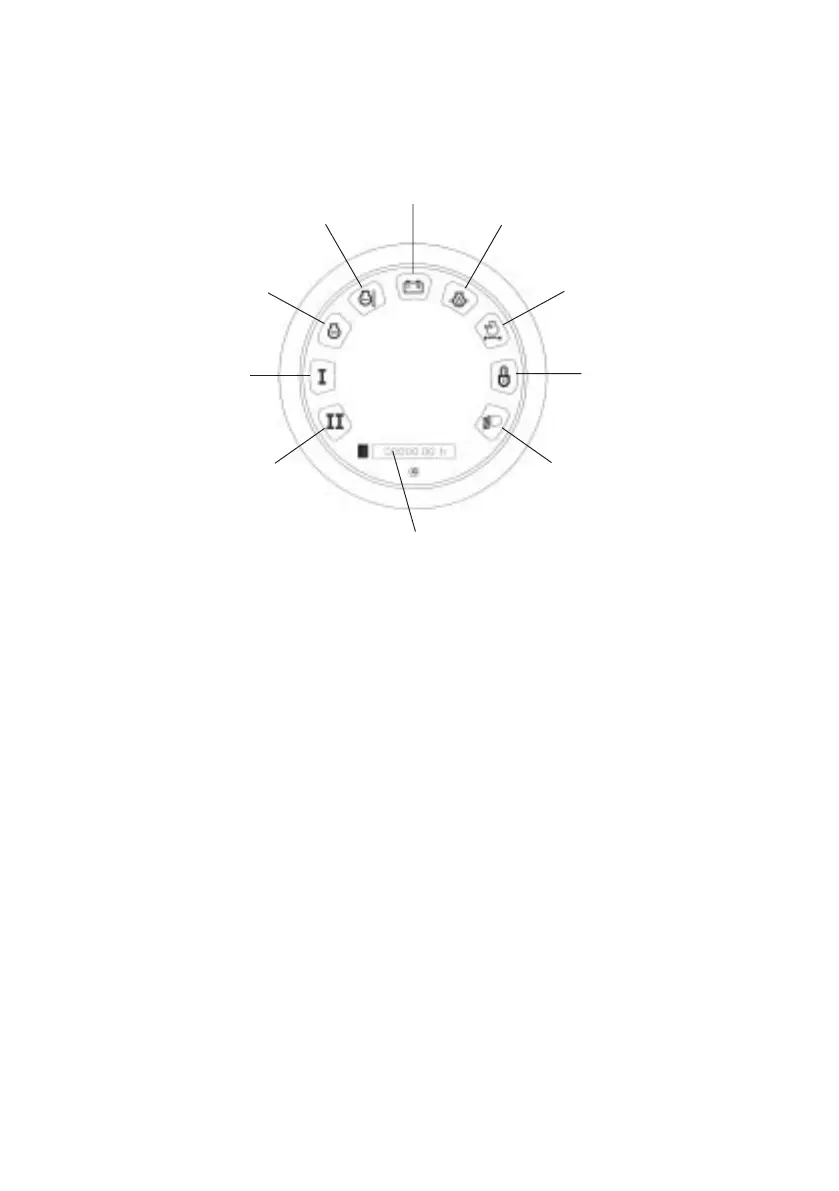

The following warning lights are housed in the instrument as well as the timer:
7.1 – POWER TAKE OFF INSERTION WARNING LIGHT (PTO)
7.2 – POWER TAKE OFF INSERTION WARNING LIGHT (PTO)
7.3 – GLOW PLUGS PRE-HEATING INDICATOR
The warning light switches on after clockwise rotation of the key in the ignition block. The
machine must always be started-up after the warning light switches off.
7.4 – ENGINE COOLING LIQUID TEMPERATURE WARNING LIGHT
The warning light signals anomalous functioning of the diesel engine cooling plant.
7.5 – GENERATOR CHARGE INDICATOR
- OFF in normal operating position
(goes off immediately after starting)
- When ON it signals malfunctioning in the battery recharging system.
7.6 – ENGINE OIL PRESSURE INDICATOR
When this indicator comes on, it signals malfunctioning in the diesel engine lubrication system
- insufficient pressure or lack of oil. Immediately stop and identify the cause.
