47
DIESEL ENGINE LUBRICATION SYSTEM
Concerning use, refilling, engine oil and coolant check, starting and stopping, air filter
inspection and cleaning, and everything to do with maintenance, follow the instructions in the USE
AND MAINTENANCE manual of the engine manufacturer, supplied with the machine.
The instructions in this manual were taken from the use and maintenance manual of the engine
manufacturer and used to simplify the topics discussed, in order to give a more complete and
immediate view.

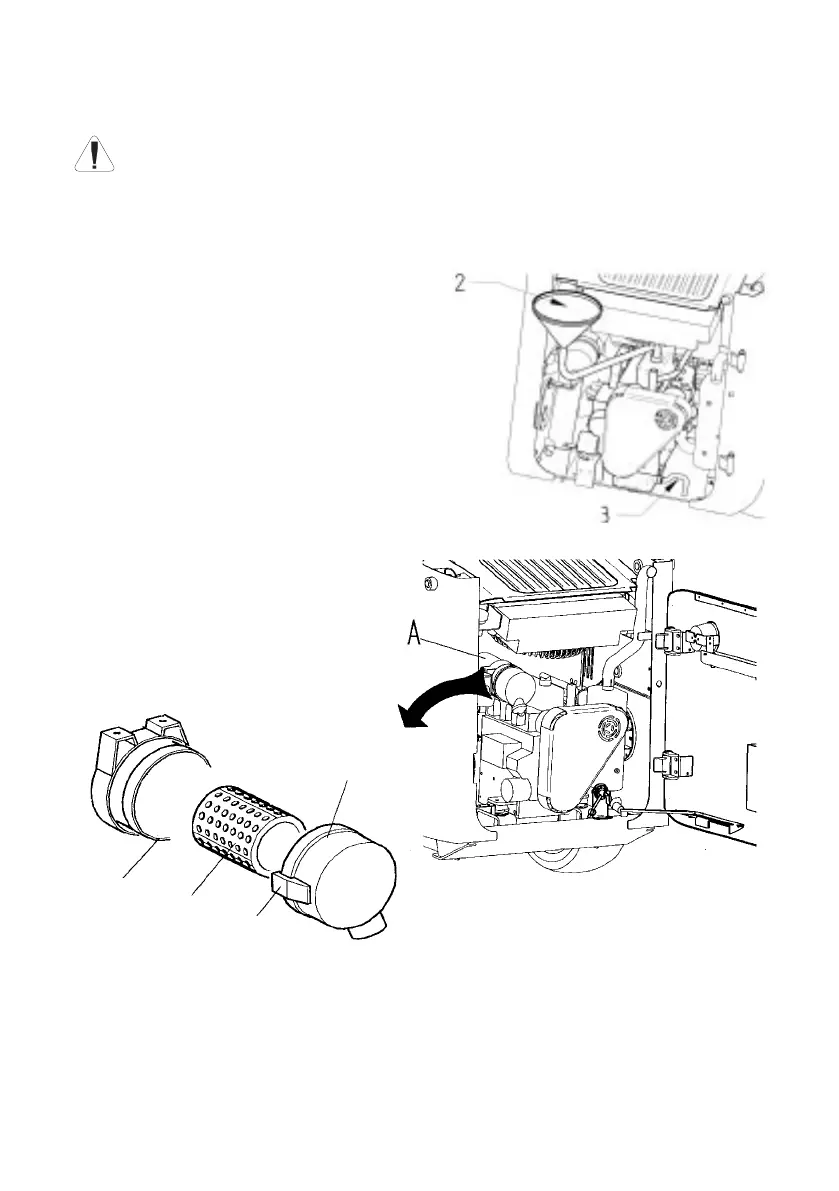

To introduce oil use supplied funnel “2”.
To drain off used oil use the relative discharge
pipe”3" prepared on the engine and orientated in a
way to discharge through the opening in the floor
of the frame into a container with adequate capac-
ity.
Never dispose of used oil in the environ-
ment; it must always be disposed of through
Authorised Companies.
ENGINE AIR SUCTION PLANT
- The air filter “A” is positioned in the rear part of the machine.
- A special luminous warning light, situated on the left dashboard panel signals filter inefficiency,
see Fig. 1 (ref. 7 - 7.7).
- To check efficiency or replace cartridge “D” proceed as follows:
1 - Shutdown the DIESEL engine.
2 - Release handles “C” from the filter body “E” and remove cover “B”.
MAINTENANCE
B
E
D
C
